Quick Details
-
Model Number:
-
JFD-JZJ1
-
Voltage:
-
380v
-
Power:
-
15kw
-
Weight:
-
700 KG
-
Dimension(L*W*H):
-
1350*1000*1100
-
Name:
-
milk homogenizer
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
China
-
Brand Name:
-
JFD
-
Model Number:
-
JFD-JZJ1
-
Voltage:
-
380v
-
Power:
-
15kw
-
Weight:
-
700 KG
-
Dimension(L*W*H):
-
1350*1000*1100
-
Name:
-
milk homogenizer

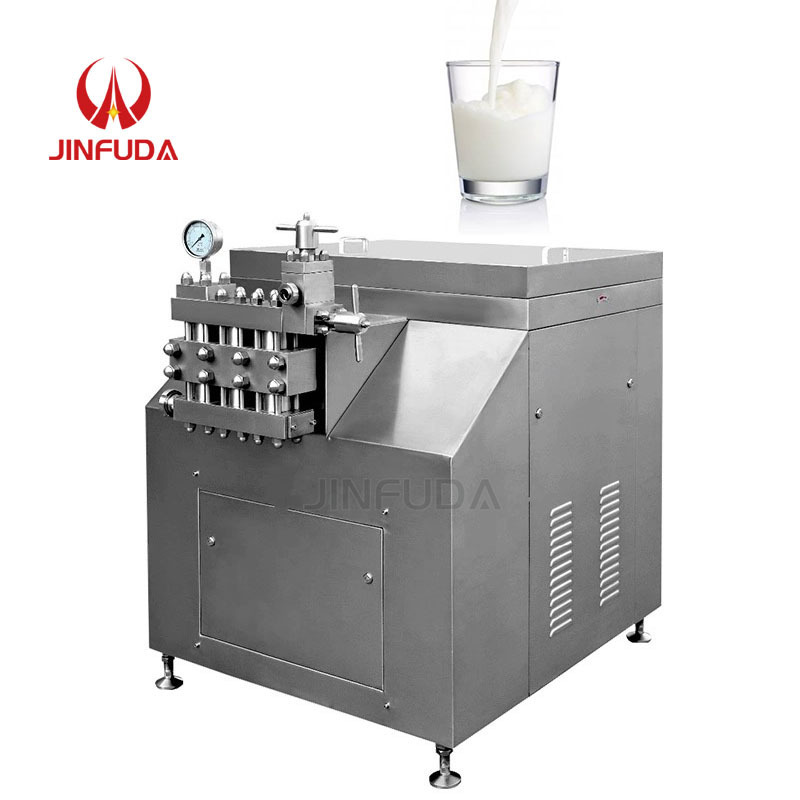

The high-pressure homogenizer, also known as "high-pressure fluid nano homogenizer", can make the material in suspension state flow through the container with special internal structure (high-pressure homogenization chamber) at high speed under the action
of ultra-high pressure (up to 60000psi), so as to make the material undergo a series of changes in physical, chemical and structural quality, and finally achieve the effect of homogenization.
of ultra-high pressure (up to 60000psi), so as to make the material undergo a series of changes in physical, chemical and structural quality, and finally achieve the effect of homogenization.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; make the product much more nice, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry,chemical industry, etc.)
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry,chemical industry, etc.)
|
Model
|
Flow(L/H)
|
Greatest pressure(Mpa)
|
Preset pressure(Mpa)
|
Dimensions(mm)
|
weight(kg)
|
|
JFD-1-100
|
100
|
100
|
80
|
700×640×980
|
300
|
|
JFD-3-25
|
300
|
25
|
20
|
700×640×980
|
300
|
|
JFD-5-25
|
500
|
25
|
20
|
1010×645×990
|
450
|
|
JFD-10-25
|
1000
|
25
|
20
|
1010×645×990
|
480
|
|
JFD-20-25
|
2000
|
25
|
20
|
1150×860×1100
|
680
|
|
JFD-30-25
|
3000
|
25
|
20
|
1350×940×1240
|
1200
|
|
JFD-50-25
|
5000
|
25
|
20
|
1410×1120×1470
|
2000
|
|
JFD-100-25
|
10000
|
25
|
20
|
2700×1480×1240
|
3500
|
