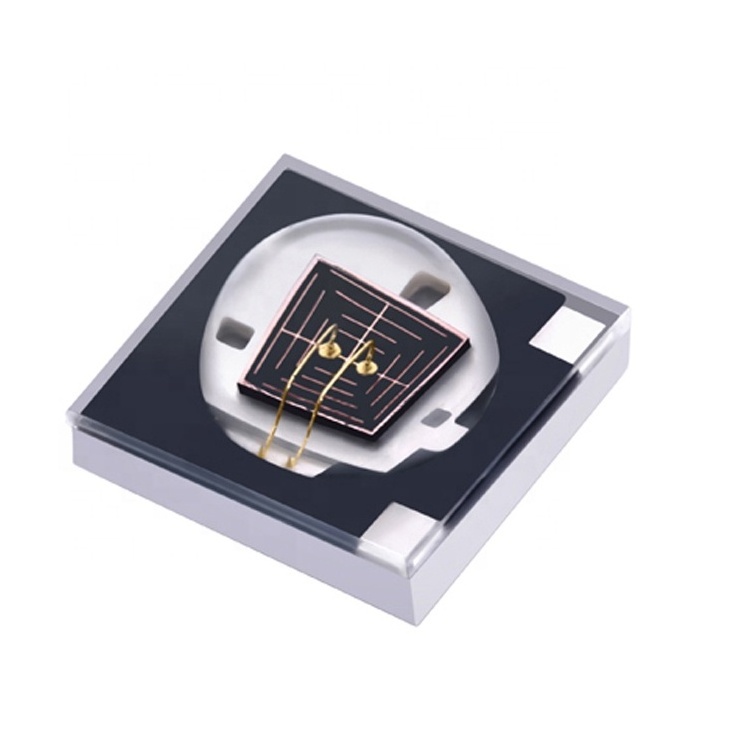

3W high power led chip 730nm, ir led 940nm, infrared led strip 850nm with ir led
3W high power led chip 730nm, ir led 940nm, infrared led strip 850nm with ir led
3W high power led chip 730nm, ir led 940nm, infrared led strip 850nm with ir led
3W high power led chip 730nm, ir led 940nm, infrared led strip 850nm with ir led

3W high power led chip 730nm, ir led 940nm, infrared led strip 850nm with ir led

FOB Reference Price: Get Latest Price
≥20 Pieces
US $0.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Description:
3535 High power infrared
Place of Origin:
Guangdong, China
D/C:
3535 High power infrared
Application:
Night vision
Supplier Type:
HYQ35G42N700AB-D1, HYQ35E42N730AB-D1, HYQ35L42N760AB-D1, HYQ35L42N780AB-D1, HYQ35L42N800AB-D1, HYQ35G42N820AB-D1, HYQ35E42N850AB-D1, HYQ35L42N880AB-D1, HYQ35L42N910AB-D1, HYQ35G42N925AB-D1, HYQ35E42N940AB-D1, HYQ35L42N980AB-D1, HYQ35E42N1050AB-D1, HYQ35L14P1350AB-D1, HYQ35L14P1450AB-D1, HYQ35L14P1650AB-D1, HYQ35L42P1450AB-D1
Cross Reference:
{-23-0
Max. Forward Voltage:
1.0-2.4
Max. Reverse Voltage:
5V
Max. Forward Current:
700mA-1A
Max. Reverse Current:
5
Diode Type:
3535 SMD LED
Technology:
0
Voltage - Peak Reverse (Max):
5
Current - Average Rectified (Io):
0
Voltage - Forward (Vf) (Max) @ If:
0
Current - Reverse Leakage @ Vr:
0
Operating Temperature:
0
Mounting Type:
PCB
Package / Case:
silica gel
Diode Configuration:
0
Voltage - DC Reverse (Vr) (Max):
0
Current - Average Rectified (Io) (per Diode):
0
Speed:
0
Reverse Recovery Time (trr):
0
Capacitance @ Vr, F:
0
Current - Max:
700
Power Dissipation (Max):
3W
Tolerance:
5
Impedance (Max) (Zzt):
0
Applications1::
Solar simulator
Applications::
Foreign material inspection
Applications3:
Color sorting
Applications4::
3D scanner
Applications5::
Photoelectric sensor
Applications6::
Bill validator
Applications7::
Passport reader
Applications8::
Surveillance camera
Applications9::
Night vision
Applications10::
Surveillance camera

Quick Details

Model Number:
3535 High power infrared LED
Brand Name:
HY
Series:
3535 High power infrared
Description:
3535 High power infrared
Place of Origin:
Guangdong, China
D/C:
3535 High power infrared
Application:
Night vision
Supplier Type:
HYQ35G42N700AB-D1, HYQ35E42N730AB-D1, HYQ35L42N760AB-D1, HYQ35L42N780AB-D1, HYQ35L42N800AB-D1, HYQ35G42N820AB-D1, HYQ35E42N850AB-D1, HYQ35L42N880AB-D1, HYQ35L42N910AB-D1, HYQ35G42N925AB-D1, HYQ35E42N940AB-D1, HYQ35L42N980AB-D1, HYQ35E42N1050AB-D1, HYQ35L14P1350AB-D1, HYQ35L14P1450AB-D1, HYQ35L14P1650AB-D1, HYQ35L42P1450AB-D1
Cross Reference:
{-23-0
Max. Forward Voltage:
1.0-2.4
Max. Reverse Voltage:
5V
Max. Forward Current:
700mA-1A
Max. Reverse Current:
5
Diode Type:
3535 SMD LED
Technology:
0
Voltage - Peak Reverse (Max):
5
Current - Average Rectified (Io):
0
Voltage - Forward (Vf) (Max) @ If:
0
Current - Reverse Leakage @ Vr:
0
Operating Temperature:
0
Mounting Type:
PCB
Package / Case:
silica gel
Diode Configuration:
0
Voltage - DC Reverse (Vr) (Max):
0
Current - Average Rectified (Io) (per Diode):
0
Speed:
0
Reverse Recovery Time (trr):
0
Capacitance @ Vr, F:
0
Current - Max:
700
Power Dissipation (Max):
3W
Tolerance:
5
Impedance (Max) (Zzt):
0
Applications1::
Solar simulator
Applications::
Foreign material inspection
Applications3:
Color sorting
Applications4::
3D scanner
Applications5::
Photoelectric sensor
Applications6::
Bill validator
Applications7::
Passport reader
Applications8::
Surveillance camera
Applications9::
Night vision
Applications10::
Surveillance camera
Order Code

Voltage

(V)

Peak     Wavelength (nm)

Radiant   Power

(mW)

Radiant Intensity

(mw/sr)

Current

(mA)

Half

Width

(nm)

Angle

(0)

HYR35X43B365KN-D1 3.5-4.0 365-370 1500-2000 375 700 9 120
HYR35X43B380KN-D1 3.2-3.6 380-390 1800-2300 455 700 10 120
HYR35X43B395KN-D1 3.0-3.4 395-400 1700-1900 438 700 15 120
HYQ35G45N400KN-D1 3.0-3.4 400-410 1300-1500 355 700 17 120
HYQ35G45N410KN-D1 3.0-3.4 410-420 900-1100 346 700 17 120
HYQ35G45N420KN-D1 3.0-3.4 420-430 900-1100 324 700 16 120
HYQ35G45N430KN-D1 3.0-3.4 430-440 700-800 335 700 19 120
HYQ35R45N450KN-D1 3.0-3.4 450-460 700-800 341 700 20 120
HYQ35G45P460KN-D1 3.0-3.4 460-470 400-500 281 700 22 120
HYQ35G45P480KN-D1 3.0-3.4 470-490 800-1000 262 700 26 120
HYQ35G45P500KN-D1 3.0-3.4 495-505 300-400 235 700 25 120
HYQ35R45N520KN-D1 3.0-3.4 520-530 250-350 227 700 30 120
HYQ35G45P530KN-D1 3.0-3.4 530-540 300-400 236 700 30 120
HYQ35G45P545KN-D1 3.0-3.4 540-560 200-300 227 700 40 120
HYQ35F45N560KN-D1 3.0-3.4 555-575 80-100 300 700 40 120
HYQ35E42N580KN-D1 2.0-2.4 580-585 120-150 97 700 20 120
HYQ35E42P590KN-D1 2.0-2.4 590-600 100-130 85 700 20 120
HYQ35G42N600KN-D1 2.0-2.4 600-610 250-350 187 700 15 120
HYQ35E42P630KN-D1 2.0-2.4 620-640 400-500 461 700 15 120
HYQ35E42N660KN-D1 2.0-2.4 655-665 600-700 794 700 17 120
HYQ35G42N680KN-D1 2.0-2.4 670-690 700-800 774 700 20 120
HYQ35G42N700AB-D1 2.0-2.4 690-710 300-400 250 700 22 120
HYQ35E42N720AB-D1 1.8-2.2 720-730 800-1000 600 1000 22 120
HYQ35E42N730AB-D1 1.8-2.2 730-740 800-1000 600 1000 22 120
HYQ35L42N760AB-D1 1.6-2.0 760-780 500-700 390 700 24 120
HYQ35L42N780AB-D1 1.6-2.0 780-800 500-700 430 700 25 120
HYQ35L42N800AB-D1 1.4-1.8 800-820 500-700 450 700 32 120
HYQ35G42N820AB-D1 1.6-2.0 820-830 500-600 400 700 35 120
HYQ35E42N850AB-D1 1.4-1.8 840-860 850-1200 420 1000 35 120
HYQ35L42N880AB-D1 1.4-1.8 870-890 600-800 360 700 39 120
HYQ35L42N910AB-D1 1.4-1.8 900-920 800-1000 360 700 39 120
HYQ35G42N925AB-D1 1.4-1.6 920-930 600-800 330 700 39 120
HYQ35E42N940AB-D1 1.2-1.6 930-950 900-1100 380 1000 45 120
HYQ35L42N980AB-D1 1.2-1.6 960-980 700-900 340 700 52 120
HYQ35L42N1050AB-D1 1.0-1.4 1000-1100 600-700 200 1000 50 120
HYQ35G42P1200AB-D1 1.0-1.2 1200-1300 350-450 200 700 120 120
HYQ35L42P1350AB-D1 1.0-1.2 1300-1400 130-150 200 700 85 120
HYQ35L42P1450AB-D1 1.0-1.2 1450-1550 130-150 200 700 85 120
HYQ35G42P1500AB-D1 1.0-1.2 1500-1600 350-450 200 700 120 120
HYQ35G42P1600AB-D1 1.0-1.2 1600-1700 350-450 200 700 120 120

Warm Tip : The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements

Applications

Our products are widely used in various applications such as medical, life science, industrial equipment, non-destructive testing, and analytical equipment.

Substance / Matter Analysis//Hyperspectral Imaging
Machine Vision // Sorting Units (by raw material, by colour, etc.)
Detection of Foreign Matter// Blood Oxygen Saturation Analysis
Endoscopic Procedures// Photo Dynamic Therapy
Instrument Diagnostics and Research Execution// Spectroscopy
