Quick Details
-
Brand Name:
-
SNADI
-
Model Number:
-
CM
-
Work Time (h):
-
24hours
-
Max PV Power:
-
5400W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
2 Years
-
Main feature:
-
12V 24V 48V 100 Amp MPPT solar charge controller
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Charge mode:
-
MPPT Automatic Maximum Power Point Tracking
-
Charge Method:
-
Three Stages
-
Rated voltage:
-
12V 24V 48V
-
Communication:
-
Wifi / RS485
-
Noise:
-
<50dB
-
PV Module Utilization:
-
≤99%
-
Display:
-
LCD
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SNADI
-
Model Number:
-
CM
-
Work Time (h):
-
24hours
-
Max PV Power:
-
5400W
-
Max PV Voltage:
-
150VDC
-
Certificate:
-
CE/ISO9001
-
Warranty:
-
2 Years
-
Main feature:
-
12V 24V 48V 100 Amp MPPT solar charge controller
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Charge mode:
-
MPPT Automatic Maximum Power Point Tracking
-
Charge Method:
-
Three Stages
-
Rated voltage:
-
12V 24V 48V
-
Communication:
-
Wifi / RS485
-
Noise:
-
<50dB
-
PV Module Utilization:
-
≤99%
-
Display:
-
LCD

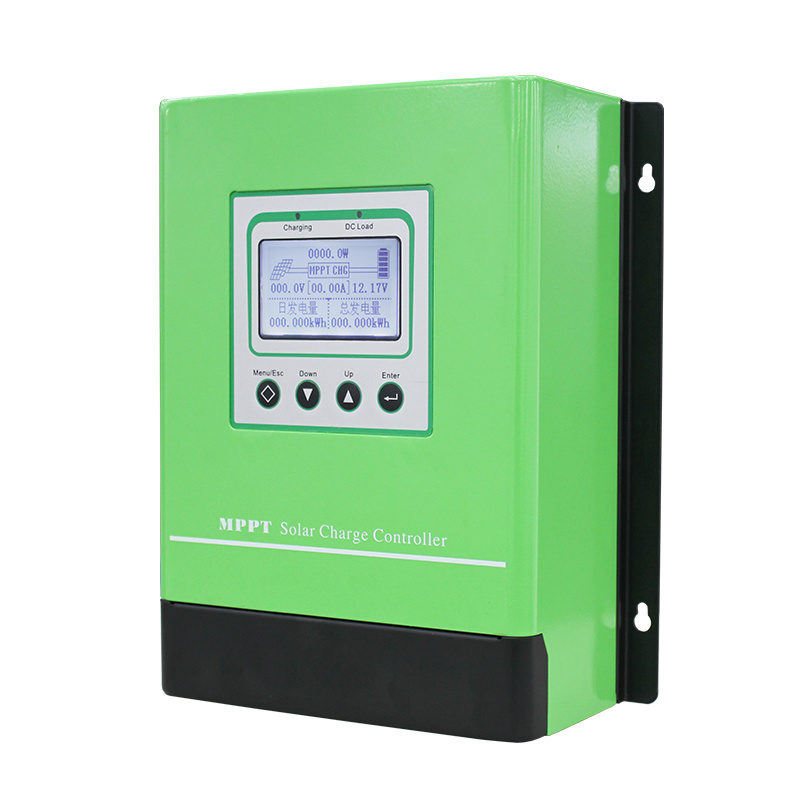

SNADI 40A 50A 60A 80A 12V 24V 48V 100 amp MPPT Solar charge controller
|
Model: CM-
|
|
30A
|
40A
|
50A
|
60A
|
80A
|
||||||
|
Charging Mode
|
MPPT Automatic Maximum Power Point Tracking
|
|
|
|
|
|
||||||
|
Charging Method
|
Three stages: Constant Current (MPPT), Balanced Charging, Floating Charge
|
|
|
|
|
|
||||||
|
System Type
|
12V/24V/48V
|
Automatic Identification/Manual Setting
|
|
|
|
|
||||||
|
System Identification Voltage Range
|
12V System
|
DC 9V - DC 15V
|
|
|
|
|
||||||
|
|
24V System
|
DC 18V - DC 30V
|
|
|
|
|
||||||
|
|
48V System
|
DC 36V - DC 60V
|
|
|
|
|
||||||
|
Soft Start Time
|
12V/24V/48V
|
≤ 10ms
|
|
|
|
|
||||||
|
Dynamic Response Recovery Time
|
12V/24V/48V
|
≤ 500us
|
|
|
|
|
||||||
|
Static Power
|
12V/24V/48V
|
≤ 2W
|
|
|
|
|
||||||
|
Machine Efficiency
|
12V/24V/48V
|
≥ 96.5%/99%
|
|
|
|
|
||||||
|
PV Module Utilization
|
12V/24V/48V
|
≤ 99%
|
|
|
|
|
||||||
|
Input Characteristics
|
|
|
|
|
|
|
||||||
|
MPPT Operating Voltage Range
|
12V System
|
DC 18V - DC 150V
|
|
|
|
|
||||||
|
|
24V System
|
DC 34V - DC 150V
|
|
|
|
|
||||||
|
|
48V System
|
DC 65V - DC150V
|
|
|
|
|
||||||
|
Maximum Solar Panel Input Power
|
12V System
|
420W
|
570W
|
700W
|
900W
|
1100W
|
||||||
|
|
24V System
|
840W
|
1130W
|
1400W
|
1700W
|
2200W
|
||||||
|
|
48V System
|
1650W
|
2270W
|
2800W
|
3400W
|
4400W
|
||||||
|
Output Characteristics
|
|
|
|
|
|
|
||||||
|
Optional Battery Type (Default Is Lead-acid Maintenance- free Battery)
|
12V/24V/48V
|
Lead-acid Maintenance-free Battery, Gel Battery, Liquid Battery, Lithium Battery (Can Also Be Customized For Other Types Of Battery)
|
|
|
|
|
||||||
|
Current Limiting Protection
|
12V/24V/48V
|
32A
|
42A
|
52A
|
62A
|
82A
|
||||||
|
Temperature Coefficient
|
12V/24V/48V
|
± 0.02%/℃
|
|
|
|
|
||||||
|
Temperature Compensation
|
12V/24V/48V
|
14.2V-(Maximum Temperature -25℃)*0.3
|
|
|
|
|
||||||
|
Output Regulation Accuracy
|
12V/24V/48V
|
≤ ±1.5%
|
|
|
|
|
||||||
|
Protection
|
|
|
|
|
|
|
||||||
|
Input Low Voltage Protection
|
|
Reference Input Characteristics
|
|
|
|
|
||||||
|
Input High Voltage Protection
|
|
Reference Input Characteristics
|
|
|
|
|
||||||
|
Short Circuit Protection
|
|
After 5 Trial Starts Will Enter The Protection State, Restart Recovery
|
|
|
|
|
||||||
|
Temperature Protection
|
|
90℃
|
|
|
|
|
||||||
|
Temperature Rise Protection
|
|
Reduce Power Output When Exceed 85℃
|
|
|
|
|
||||||
|
Other Parameters
|
|
|
|
|
|
|
||||||
|
Noise
|
|
≤ 50dB
|
|
|
|
|
||||||
|
Heat Dissipation Method
|
|
Forced Air Cooling, Fan Speed Is Adjusted By Temperature
|
|
|
|
|
||||||
|
Mechanical Protection Type
|
|
IP21
|
|
|
|
|
||||||
|
Humidity
|
|
0 - 90%RH (No Condensation)
|
|
|
|
|
||||||
|
PV Module Configutation
|
|
|
|
|
|
|
||||||
|
System Battery Voltage
|
|
PV Module Load Voltage (Recommended Value)
|
|
|
|
|
||||||
|
12V System
|
|
18V-60V (30V Module*1 String, 36V Module*1 String)
|
|
|
|
|
||||||
|
24V System
|
|
36V-72V (30V Module*2 String, 36V Module*2 String)
|
|
|
|
|
||||||
|
48V System
|
|
72V-144V (30V Module*3 String, 36V Module*3 String)
|
|
|
|
|
||||||
