WWC 2:1 Diesel Resistant Elastomer Heat Shrink Tubing 1/8

WWC 2:1 Diesel Resistant Elastomer Heat Shrink Tubing 1/8" 1/4" 1/2" 3/4" 1" 2" 3" Dia Black Shrinkable Tube free sample

FOB Reference Price: Get Latest Price

≥10 Meters

US $1.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: DR

Product name:: Diesel Resistant Elastomer Heat Shrink Tubing

Usage:: high-speed trains, ship equipment

Shrink ratio:: 2:1

Diameter:: ID 3.2mm -- 76.0 mm

ELongation at break (%):: ASTM D 2671 ≥ 400%

Certification:: RoHS

MOQ:: 1000M

Package:: 200-25M / roll

DELIVERY time:: 2-5days

OEM:: Acceped

Quick Details

Material:: radiation-modified polymer elastomer

Place of Origin:: Jiangsu, China

Brand Name:: Woer

Model Number:: DR

Product name:: Diesel Resistant Elastomer Heat Shrink Tubing

Usage:: high-speed trains, ship equipment

Shrink ratio:: 2:1

Diameter:: ID 3.2mm -- 76.0 mm

ELongation at break (%):: ASTM D 2671 ≥ 400%

Certification:: RoHS

MOQ:: 1000M

Package:: 200-25M / roll

DELIVERY time:: 2-5days

OEM:: Acceped

Product Description

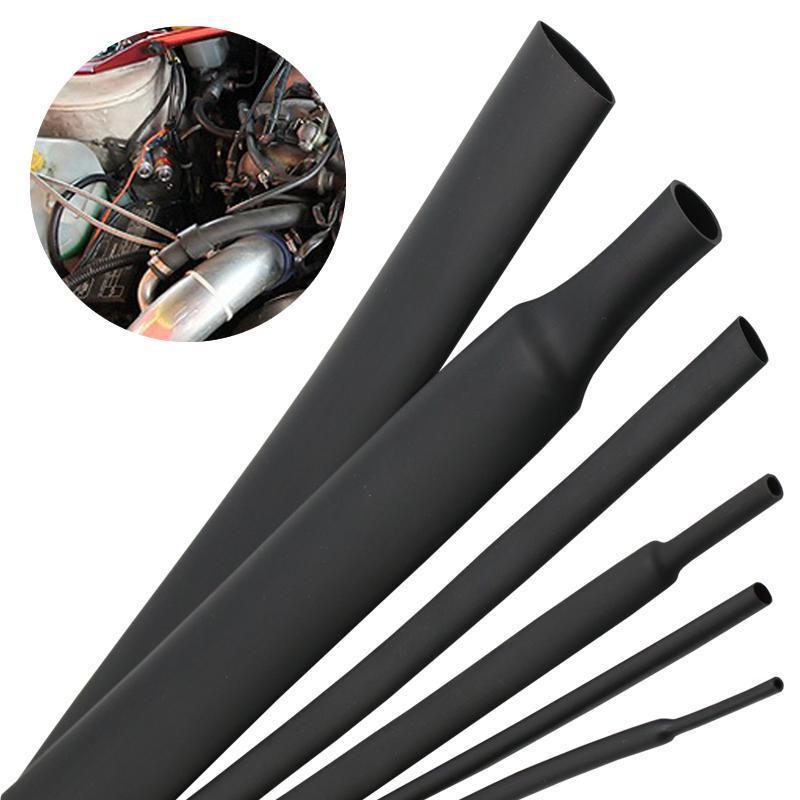

Diesel Resistant Elastomer Heat Shrink Tubing

Diesel-resistant elastomer heat-shrinkable tubing is made of radiation-modified polymer elastomer, which can be used at high temperatures for a long time, and is resistant to diesel, aviation fuel, and high-temperature fluids. It can be used for the protection of xxx vehicles, high-speed trains, ship equipment or commercial cable terminals, separation joints, etc.

Features

✦ 2:1 shrink ratio ( Note: 3:1 shrink ratio is available upon request ) ✦ Long term resistance to diesel, hydraulic fluids and chemicals ✦ Continuous operating temperature:-75℃-150℃ ✦ High abrasion and cut resistance ✦ Shrink temperature:150℃ ✦. Flame retardant ✦ Flexible ✦. Standard color: black (other colors can be customized)

Technical Data

Property	Test method	Stantard
Tensile strength(MPa)	ASTM D 2671	≥11.7
Elongation at Break ( % )	ASTM D 2671	≥400
Strengtn after aging (MPa)	160℃ x 168H	≥8.0
Elongation after aging(%)	160℃ x 168H	≥220
Axial Rate of Change ( % )	ASTM D 2671	-8 ∽ +8
Breakdown Strength (kV/mm)	IEC 60243	≥11.9
Tensile Strength after anti-solvent aging ( MPa)	24H ( diesel oil 70℃, water 70℃, lubricating oil 100℃ )	≥10.3
Elongation at break after anti-solvent aging ( % )	24H ( diesel oil 70℃, water 70℃, lubricating oil 100℃ )		≥200
Flame Retardant	UL224	VW-1
Thermal Shock	215℃ x 4H	No cracks , No drips

Size			Expanded (mm)	Recovered （mm）			Standard Package	Round / Flat
Inch	mm	Internal Diameter	Internal Diameter	Wall Thickness	M / Spool			Round / Flat
1/8	3.2	3.2	1.6	0.76±0.15	200	Round
3/16	4.8	4.8	2.4	0.84±0.15	100	Round
1/4	6.4	6.4	3.2	0.89±0.15	100	Round
3/8	9.5	9.5	4.8	1.02±0.20	50	Flat
1/2	12.7	12.7	6.4	1.22±0.20	25	Flat
3/4	19.0	19.0	9.5	1.45±0.28	25	Flat
1	25.4	25.4	12.7	1.78±0.28	25	Flat
1-1/2	38.1	38.1	19.0	2.41±0.41	25	Flat
2	50.8	50.8	25.4	2.79±0.41	25	Flat
3	76.0	76.0	38.0	3.18±0.50	1.00	Flat
