Quick Details
-
Model Number:
-
GJ
-
Weight (KG):
-
2000
-
Power (kW):
-
150
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Wire diameter:
-
5-12mm
-
Welding aperture:
-
100*100-300*300mm
-
Width of mesh:
-
2500mm
-
Welding speed:
-
35times/min;50times/min
-
Rated voltage:
-
AC380V 50HZ
-
Rated power:
-
1820KVA
Quick Details
-
Production Capacity:
-
30-60times/min
-
Place of Origin:
-
Andorra
-
Brand Name:
-
SECURE-NETT
-
Model Number:
-
GJ
-
Weight (KG):
-
2000
-
Power (kW):
-
150
-
After-sales Service Provided:
-
Overseas service center available, Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
-
Wire diameter:
-
5-12mm
-
Welding aperture:
-
100*100-300*300mm
-
Width of mesh:
-
2500mm
-
Welding speed:
-
35times/min;50times/min
-
Rated voltage:
-
AC380V 50HZ
-
Rated power:
-
1820KVA

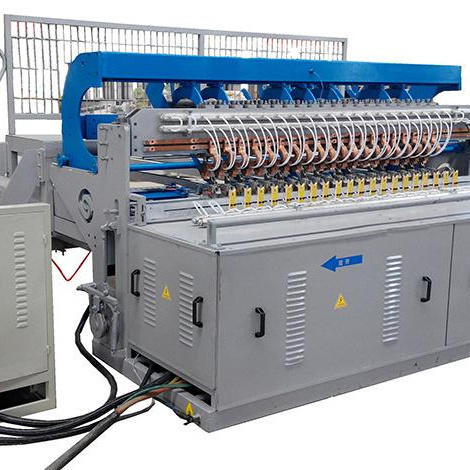

Model: commol reinforcing mesh welding machine
New type reinforcing mesh welding machine
Machine features the reinforcing mesh welding machine
The equipment adopts synchronous control technique,
the welding time and control time are composed of PLC
digital programming system, touch screen or keyboard
input panel for two, operation more intelligent, rational.
The new high efficiency welding welding transformer,
expand the scope of the welding wire diameter. Net
system consists of servo motor control, not only improve
the accuracy of the mesh, while ensuring the warp yarns
and weft yarns distance between tunability.
The main parameter of the reinforcing mesh welding machine
| Wire diameter | 5-12mm |
| Welding aperture | 100*100-300*300mm |
| Width of mesh | 2500mm(customized) |
| Number of electrodes | 26(adjustable) |
| Welding speed | 35times/min(50times/min) |
| Rated voltage | AC380V 50HZ(customized) |
| Rated power | 1820KVA |
| Overall dimension | 9*3.6*2.5m;15*3.6*2.5m |
Auxiliary equipment
Straightening cutting machine
| cutting wrie length | 3m | 6m |
| cutting wire diameter | 3-6.5mm | 3-6.5mm |
| specifications | To force before and after | To force before and after |
| quantity(set) | 1 | 1 |
Wire feeding plate
Equipped with a straightening machine, can be placed 600-700 kg
Production mesh of the reinforcing mesh welding machine
It can be used for producing high-level construction and
bridge mesh,high-way reinforce mesh,construction reinforce
mesh,floor pouring mesh.
Packaging of the reinforcing mesh machine
1. The main machine and auxiliary equipments will be with
plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel
wire rope to make it stable.
