Quick Details
-
Brand Name:
-
CLW
-
Dimensions (L x W x H) (mm):
-
4270x2294x900
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
CLW2015LH
-
Name:
-
CHINA DUCK
-
Chassis brand:
-
Dongfeng
-
Color:
-
Per your request
-
Warranty:
-
1 year
-
OEM service:
-
available
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
7920
-
Brand Name:
-
CLW
-
Dimensions (L x W x H) (mm):
-
4270x2294x900
-
Place of Origin:
-
Hubei, China
-
Model Number:
-
CLW2015LH
-
Name:
-
CHINA DUCK
-
Chassis brand:
-
Dongfeng
-
Color:
-
Per your request
-
Warranty:
-
1 year
-
OEM service:
-
available

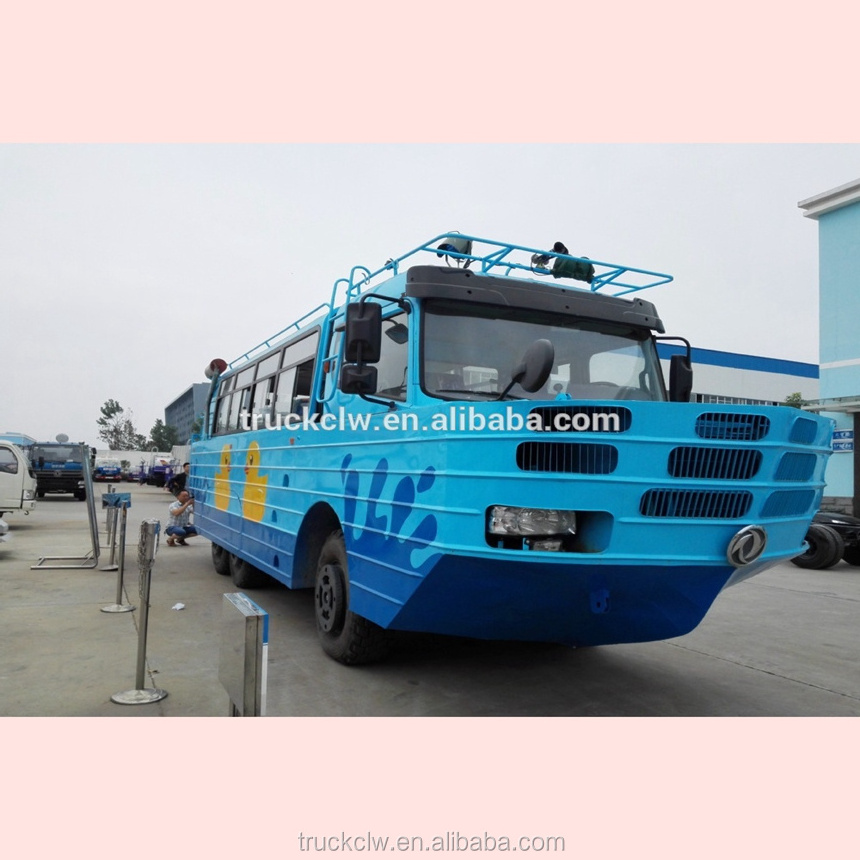

Dongfeng 6x6 amphibious boat for sale made in China
|
|
JMC pick-up truck |
JMC amphi -jeep |
Platypus(BJ2020S based ) |
Baiyun amphi-jeep(BJ2020S based) |
|
|
Maximum laden mass(payload) ( kg ) |
5 persons with cargo is no more than 750kg |
5 persons no more than 500kg |
5persons no more than 500kg |
5persons no more than 500kg |
|
|
Complete vehicle kerb mass(kg0 |
2320 |
2000 |
2000 |
2000 |
|
|
Maximum towed mass(kg) |
On land |
1000 |
800 |
800 |
800 |
|
In water |
4000 |
4000 |
4000 |
4000 |
|
|
Dimension(L X W X H)(mm) |
5740x1960x2100 |
4830x1900x2150 |
4830x1900x2150 |
4830x1900x2150 |
|
|
Wheel space (mm) |
3025 |
2300 |
2300 |
2300 |
|
|
Track(mm) |
Front wheel |
1395 |
1395 |
1520 |
1520 |
|
Rear wheels |
1400 |
1400 |
1520 |
1520 |
|
|
Cargo space dimension(L X W H) (mm) |
1000 x 1600 x 850 |
|
|
|
|
|
Maximum approach angles |
35’ |
35’ |
35’ |
35’ |
|
|
Maximum departure angles |
30’ |
30’ |
30’ |
30’ |
|
|
Minimum diameter of turning circle(m) |
On land |
More than 12.2 |
More than 12.2 |
More than 12.2 |
More than 12.2 |
|
In water |
More than 18 |
More than 14 |
More than 14 |
More than 14 |
|
|
Minimum ground clearance (mm) |
240 |
240 |
225 |
225 |
|
|
Draft (under the normal laden mass)(mm) |
800(from bottom of wheels ) |
750(from bottom of wheels ) |
750(from bottom of wheels ) |
750(from bottom of wheels ) |
|
|
Propeller(diameter x number )(mm) |
400x2 |
500x1 |
500x1 |
500x1 |
|
|
Maximum speed |
On land |
110km/h |
110km/h |
110km/h |
110km/h |
|
In water |
11km/h |
10.5km/h |
10.5km/h |
10.5km/h |
|
|
Maximum gradient |
60% |
60% |
60% |
60% |
|
|
Maximum parking gradient |
40% |
40% |
40% |
40% |
|
|
Fuel consumption (litter/100km) |
On land |
More than 9L |
More than 8L |
More than 8L |
More than 8L |
|
In water |
More than 70L |
More than 70L |
More than 70L |
More than 70L |
|
|
Maximum cruise distance |
On land |
600km |
600km |
600km |
600km |
|
In water |
90km |
100km |
100km |
100km |
|
Our services:
1. Top quality products
2. OEM support
3. Low MOQ
4. 1 year warranty
5. After-sale service
6. 24hrs online for you
7. Fast delivery
Pls do not hesitate to contact us with your requirements.
Why choose us?
1.Quality control
We make quality control for each step while producing and before shipping.
2.24/7 care
We are always available to help.
3.Rich experience
We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
4. Professional team
We have dynamic and well trained team ready to be service of you.
