1. The connection shall be expansion boll between side support & a tank wall.
2. Please inform tank depth when you put order to us.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
100kg
-
Size:
-
2.3
-
Power:
-
0.37-22
-
Weight (KG):
-
200 kg
-
Product name:
-
Submeisible Mixer
-
Application:
-
Wastewater Treatment Plant
-
Function:
-
Circulation
-
Features:
-
Eco-Friendly Easy Operation
-
Certification:
-
ISO9001
-
Package:
-
Plywood Package
-
Type:
-
Submeisible Type
-
Technology:
-
High Frequency Welding & Robot Operation
-
After-sales Service Provided:
-
After-sales Service Provided
-
Advantage:
-
24 Hours Automatic Running
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LK
-
Material:
-
Plywooden box and plastic film
-
Weight:
-
100kg
-
Size:
-
2.3
-
Power:
-
0.37-22
-
Weight (KG):
-
200 kg
-
Product name:
-
Submeisible Mixer
-
Application:
-
Wastewater Treatment Plant
-
Function:
-
Circulation
-
Features:
-
Eco-Friendly Easy Operation
-
Certification:
-
ISO9001
-
Package:
-
Plywood Package
-
Type:
-
Submeisible Type
-
Technology:
-
High Frequency Welding & Robot Operation
-
After-sales Service Provided:
-
After-sales Service Provided
-
Advantage:
-
24 Hours Automatic Running
Product Overview

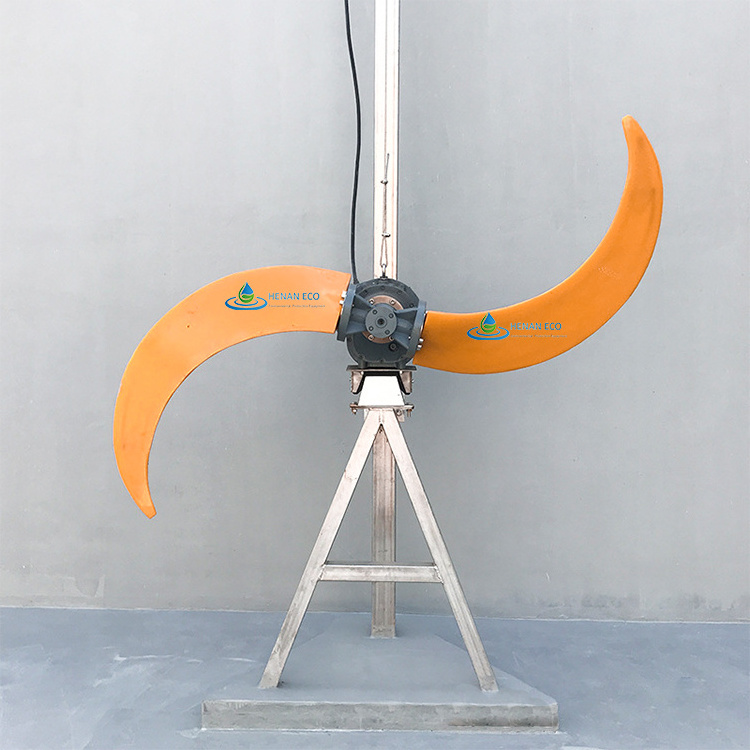

Compact Structure QK-QJB Submersible Diving Agitator Mixer Cast Iron Propeller
LK-QJB low-speed submersible thruster is suitable for various types of pools and oxidation ditch. It produces a strong flow with low tangential flow. The modified low-speed flow thruster adopts a more optimized modular design, which further improves the performance of the mixer, making it more suitable for large-capacity gentle mixing, and more suitable for biological treatment tanks, chemical flocculation, homogenization tanks. antifreeze and other occasions.
FEATURES AT A GLANCE
1 Compact structure, light weight, easy to operate and maintenance, simple installation;
2 Self-cleaning blade, preventing debris from twining or blocking;
3 Lowers energy consumption,high aeration rate preventing sedimentation;
4 Two rows of independent mechanical seal, longer service life;
5 Class F insulation of motor winding, motor protection grade IP68, imported permanent -lubricated maintenance-free bearings,
chamber leakage detection, motor winding overheating protection;
2 Self-cleaning blade, preventing debris from twining or blocking;
3 Lowers energy consumption,high aeration rate preventing sedimentation;
4 Two rows of independent mechanical seal, longer service life;
5 Class F insulation of motor winding, motor protection grade IP68, imported permanent -lubricated maintenance-free bearings,
chamber leakage detection, motor winding overheating protection;
Working Conditions
* Liquid temperature: ≤ 40℃
* PH:5~9
* Liquid density:≤1150kg/m3
* Max working depth: 20m
* Motor : IP 68 , 7/24 Continuous working
* Motor MUST diving in water while operating
* PH:5~9
* Liquid density:≤1150kg/m3
* Max working depth: 20m
* Motor : IP 68 , 7/24 Continuous working
* Motor MUST diving in water while operating
PRODUCT SPECIFICATIONS
|
LK-QJB Submersible Mixer
|
|
|
|
|
|
|
||||||
|
Model
|
Power(KW)
|
Current(A)
|
Impeller(mm)
|
Speed(r/min)
|
Weight(kg)
|
Thrust(N)
|
||||||
|
QJB1.5/4-1100/2-85P
|
1.5
|
4.0
|
1100
|
85
|
170
|
1800
|
||||||
|
QJB1.5/4-1400/2-36P
|
1.5
|
4.0
|
1400
|
80
|
160
|
2695
|
||||||
|
QJB1.5/4-1600/2-39P
|
1.5
|
4.0
|
1600
|
100
|
165
|
3136
|
||||||
|
QJB1.5/4-1800/2-42P
|
1.5
|
4.0
|
1800
|
130
|
150
|
3696
|
||||||
|
QJB2.2/4-1100/2-80P
|
2.2
|
5.3
|
1400
|
43
|
160
|
910
|
||||||
|
QJB2.2/4-1400/2-42P
|
2.2
|
5.3
|
1400
|
50
|
160
|
1183
|
||||||
|
QJB2.2/4-1600/2-43P
|
2.2
|
5.3
|
1400
|
65
|
172
|
1750
|
||||||
|
QJB2.2/4-1800/2-42P
|
2.2
|
5.3
|
1400
|
75
|
155
|
2352
|
||||||
|
QJB2.2/4-2200/2-30P
|
2.2
|
5.3
|
1600
|
39
|
165
|
952
|
||||||
|
QJB3/4-1100/2-115P
|
3.0
|
7.2
|
1600
|
43
|
165
|
1274
|
||||||
|
QJB3/4-1400/2-56P
|
3.0
|
7.2
|
1600
|
51
|
170
|
2167
|
||||||
|
QJB3/4-1600/2-56P
|
3.0
|
7.2
|
1600
|
62
|
190
|
2534
|
||||||
|
QJB3/4-1800/2-44P
|
3.0
|
7.2
|
1800
|
34
|
200
|
1568
|
||||||
|
QJB3/4-2200/2-34P
|
3.0
|
7.2
|
1800
|
39
|
200
|
1865
|
||||||
|
QJB3/4-2500/2-29P
|
3.0
|
7.2
|
1800
|
44
|
280
|
2514
|
||||||
|
QJB4/4-1100/2-130P
|
4.0
|
9.2
|
1800
|
52
|
280
|
3304
|
||||||
|
QJB4/4-1400/2-75P
|
4.0
|
9.2
|
1800
|
62
|
210
|
3948
|
||||||
|
QJB4/4-1600/2-62P
|
4.0
|
9.2
|
2200
|
30
|
210
|
1827
|
||||||
|
QJ84/4-1800/2-63P
|
4.0
|
9.2
|
2200
|
34
|
280
|
2534
|
||||||
|
QJ84/4-2200/2-38P
|
4.0
|
9.2
|
2200
|
38
|
290
|
3388
|
||||||
|
QJB4/4-2500/2-42P
|
4.0
|
9.2
|
2200
|
43
|
220
|
3864
|
||||||
|
QJB5.5/4-1800/2-62P
|
5.5
|
12.0
|
2500
|
29
|
290
|
2744
|
||||||
|
QJB5.5/4-2200/2-43P
|
5.5
|
12.0
|
2500
|
33
|
290
|
3969
|
||||||
|
QJB5.5/4-2500/2-39P
|
5.5
|
12.0
|
2500
|
39
|
300
|
4088
|
||||||
|
QJB7.5/4-1800/2-63P
|
7.5
|
15.2
|
2500
|
63
|
280
|
4250
|
||||||
|
QJB7.5/4-2500/2-63P
|
7.5
|
15.2
|
2500
|
63
|
280
|
4250
|
||||||
Installation Instructions
Installation Ⅰ
Customer Photos
FAQ
Q1： W
hat's your advantage?
A1： 1.
We have our own factory with sufficient stock, we can provide the high quality product and competitive price. 2.Our blade cutting and welding are all done by fully intelligent robotic arms, which prolongs the service life of the equipment. 3. We have own engineers' team, we can recommend the suitable scheme according to your requirements.
