Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
1100*1350*1400
-
Power (kW):
-
15
-
Weight (KG):
-
400
-
application:
-
metal engraving
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Spindle:
-
water cooling spindle 1.5KW
-
Motor:
-
stepper 450A servo motor
-
Driver:
-
stepper 860H servo motor
-
Net weight:
-
400kg
-
cutting speed:
-
2400MM/min
-
whole machine size:
-
1100*1350*1400
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 2400 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCUT
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
1100*1350*1400
-
Power (kW):
-
15
-
Weight (KG):
-
400
-
application:
-
metal engraving
-
Control system:
-
Nc-studio/Mach3/DSP Control System
-
Spindle:
-
water cooling spindle 1.5KW
-
Motor:
-
stepper 450A servo motor
-
Driver:
-
stepper 860H servo motor
-
Net weight:
-
400kg
-
cutting speed:
-
2400MM/min
-
whole machine size:
-
1100*1350*1400
Product Description

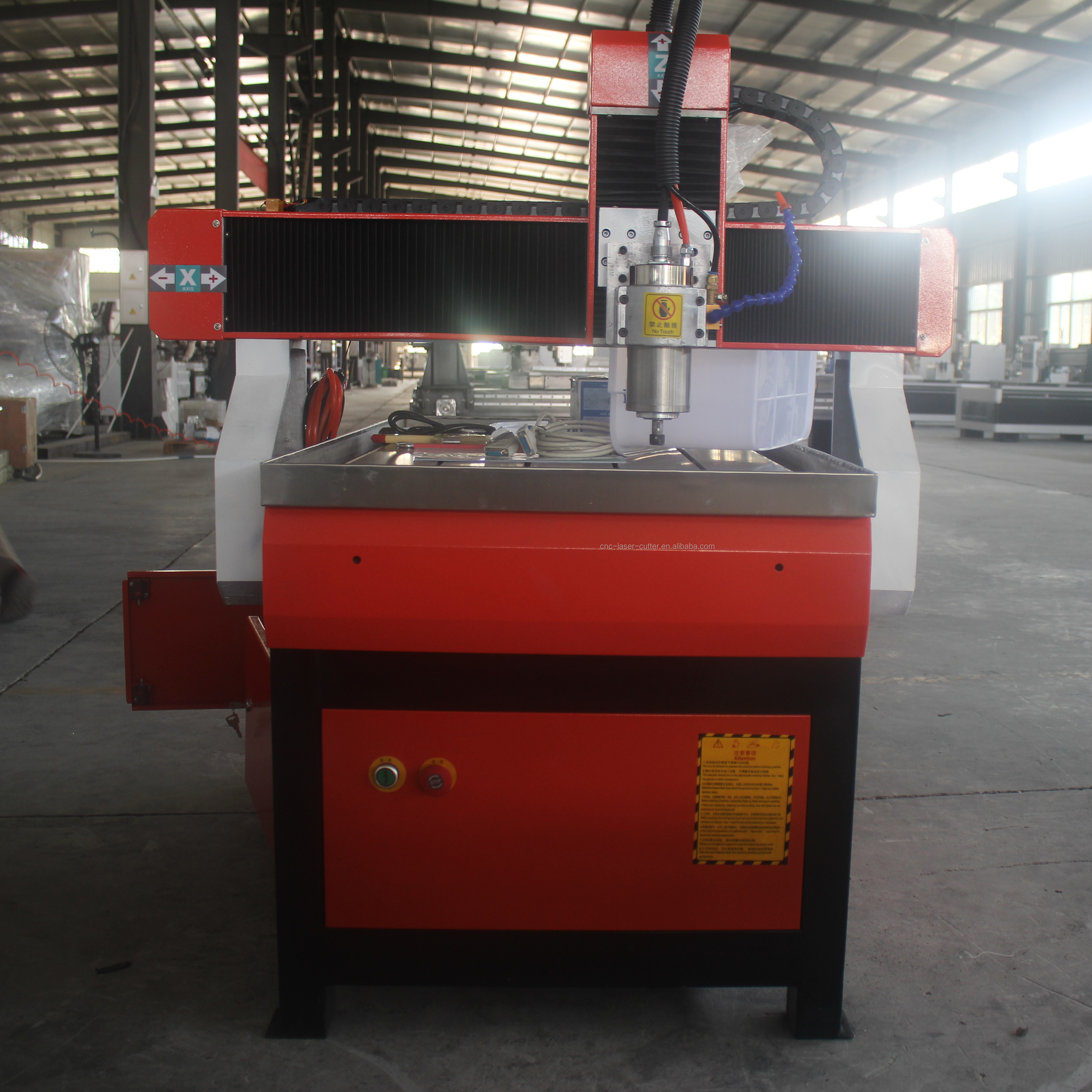

Direct sales 3d carving 4 Axis mini wood cnc router for diy small business idea
Product Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
*The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulationpart, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Specification
|
6090 LASER CNC ROUTER
|
|
|
|
Motor and Driver
|
Leadshine Stepper 450A motor and 860H big driver
|
|
|
Engraving Area
|
600mm*900mm*200mm
|
|
|
Engraving Speed
|
600mm/s
|
|
|
Resetting positioning accuracy
|
±0.05mm
|
|
|
Spindle Power
|
GDZ 1,500W water cooling
|
|
|
Inventor
|
1.5KW Surfar inventor
|
|
|
Control Software
|
NC Studio / MACH3 / DSP Control System
|
|
|
Applicable Material
|
Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood
|
|
|
Cutting Speed
|
24,000mm/min
|
|
|
Cutting Thickness
|
30mm(max)
|
|
|
Net Weight (KG)
|
400 KG
|
|
|
Whole Machine Size
|
1100*1350*1400
|
|
|
Working Voltage
|
220V ±10%,40A
|
|
