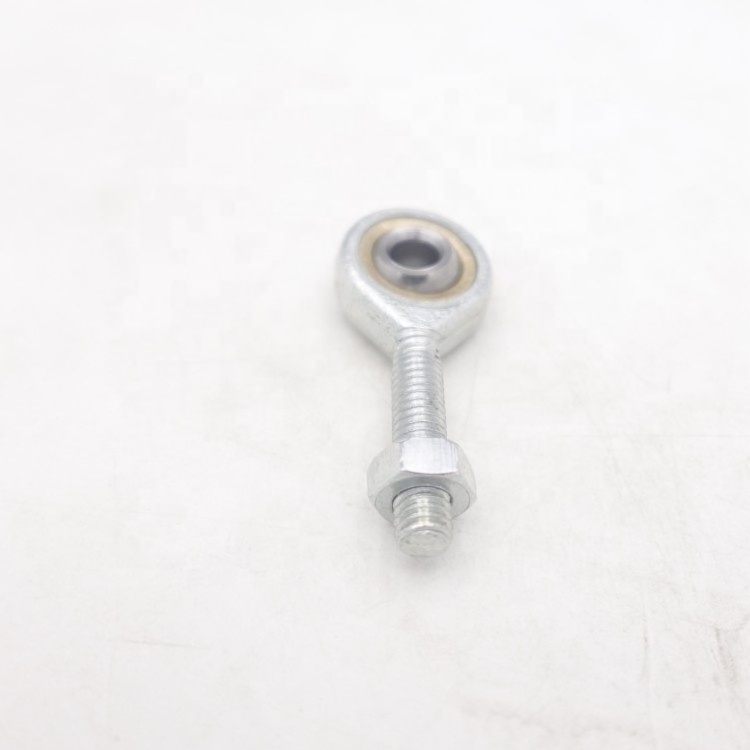

M6x1 SA6T/K Joint bearing male thread SAL6T/K fish eye joint bearing ball connecting rod end with nut

M6x1 SA6T/K Joint bearing male thread SAL6T/K fish eye joint bearing ball connecting rod end with nut

FOB Reference Price: Get Latest Price

≥10 Pieces

US $0.8

≥1000 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SA6T/K

Place of Origin:: Shandong, China

Material:: Chrome steel

Payment::: Paypal/TT/Western Union

Material::: Chrome steel/GCr15 stainless steel

Cage Material:: Steel Cage, Copper Cage,Brass Cage

Application:: machines,roller skate,electric tool

Certificate:: ISO9001:2000

Service:: OEM Customized Services

Quick Details

Applicable Industries:: Other

Precision Rating:: P0 P6 P5 P4 P2

Brand Name:: LLH

Model Number:: SA6T/K

Place of Origin:: Shandong, China

Material:: Chrome steel

Payment::: Paypal/TT/Western Union

Material::: Chrome steel/GCr15 stainless steel

Cage Material:: Steel Cage, Copper Cage,Brass Cage

Application:: machines,roller skate,electric tool

Certificate:: ISO9001:2000

Service:: OEM Customized Services

Product Description

Joint bearing structure than simply rolling bearing, which is dominated by an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still work.

Feature :

Self-aligning,High temperature resistance,carrying capability,self-lubrication

Application :

Engineering hydraulic cylinders,Forging machines,Construction machinery, Auto shock absorber etc

Product Name	Rod End Bearing
Precision Rating	P0, P6, P5, P4, P2
Material	Bearing Steel (GCr15)
Clearance	C0 C1 C2 C3 C4 C5
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Seal	2RS, RS
Features	High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize
Delivery Time	30 - 45 Days After The Order is Confirmed
Shippment	1.By Sea 2.By Air 3.By Express
Website	https://www.bearing-manufacturers.com/

Related Models

ITEM	Dimension(mm)												Weight
	d	d3	B	C1	L1	d2	h1	L7	h	L2	dk	a	kg
		6H			min							≈
SA6E*	6	M6x1.0	6	4.4	18	21	30	12	36	46.5	10	13	0.017
SA8E*	8	M8x1.25	8	6	22	24	36	14	42	54	13	15	0.029
SA10E*	10	M10x1.5	9	7	26	29	43	15	48	62.5	16	12	0.051
SA12E*	12	M12x1.75	10	8	28	34	50	18	54	71	18	11	0.086
SA15ES	15	M14x2.0	12	10	34	40	61	20	63	83	22	8	0.14
SA17ES	17	M16x2.0	14	11	36	46	67	23	69	92	25	10	0.19
SA20ES0	20	M20x1.5	16	13	43	53	77	27	78	104.5	29	9	0.31
SA25ES	25	M24x2.0	20	17	53	64	94	32	94	126	35.5	7	0.56
SA30ES	30	M30x2.0	22	19	65	73	110	37	110	146.5	40.7	6	0.89
SA35ES	35	M36x3.0	25	21	82	82	125	42	140	181	47	6	1.4
SA40ES	40	M39x3.0	28	23	86	92	142	48	150	196	53	7	1.8
SA40-1ES	40	M42x3.0	28	23	86	92	142	48	150	196	53	7	1.85
SA45ES	45	M42x3.0	32	27	94	102	145	52	163	214	60	7	2.6
SA45-1ES	45	M45x3.0	32	27	94	102	145	52	163	214	60	7	2.66
SA50ES	50	M45x3.0	35	30	107	112	160	60	185	241	66	6	3.4
SA50-1ES	50	M52x3.0	35	30	107	112	160	60	185	241	66	6	3.5
SA60ES	60	M52x3.0	44	38	115	135	175	75	210	277.5	80	6	5.9
SA60-1ES	60	M60x4.0	44	38	115	135	175	75	210	277.5	80	6	6.02
SA70ES	70	M56x4.0	49	42	125	160	200	87	235	315	92	6	8.2
SA70-1ES	70	M72x4.0	49	42	125	160	200	87	235	315	92	6	8.38
SA80ES1	80	M64x4.0	55	47	140	180	230	100	270	360	105	6	12
SA80-1ES	80	M80x4.0	55	47	140	180	230	100	270	360	105	6	12.2

Our Service

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Our company

Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.

The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.

We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.

Our certification

FAQ

Q: Are you trading company or manufacturer ?

A: We are the manufacture of bearings for more than 20 years, "Quality is our culture".

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What causes bearing noise?

A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
