Quick Details
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Depends on the capacity
-
Weight:
-
KG
-
Application:
-
brewing beer
-
Material:
-
SUS304/SUS316/red Copper
-
Heating method:
-
Steam,electric, direct fire
-
Control system:
-
PLC
-
Inner tank thickness:
-
3mm
-
Outer tank thickness:
-
2mm
-
Insulation material:
-
Rock Wool 80mm
-
Cooling way:
-
Dimple Plate Cooling
-
Valves:
-
Butterfly Valves
-
Welding:
-
Pure Argon Protection
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Voltage:
-
customized
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Depends on the capacity
-
Weight:
-
KG
-
Application:
-
brewing beer
-
Material:
-
SUS304/SUS316/red Copper
-
Heating method:
-
Steam,electric, direct fire
-
Control system:
-
PLC
-
Inner tank thickness:
-
3mm
-
Outer tank thickness:
-
2mm
-
Insulation material:
-
Rock Wool 80mm
-
Cooling way:
-
Dimple Plate Cooling
-
Valves:
-
Butterfly Valves
-
Welding:
-
Pure Argon Protection

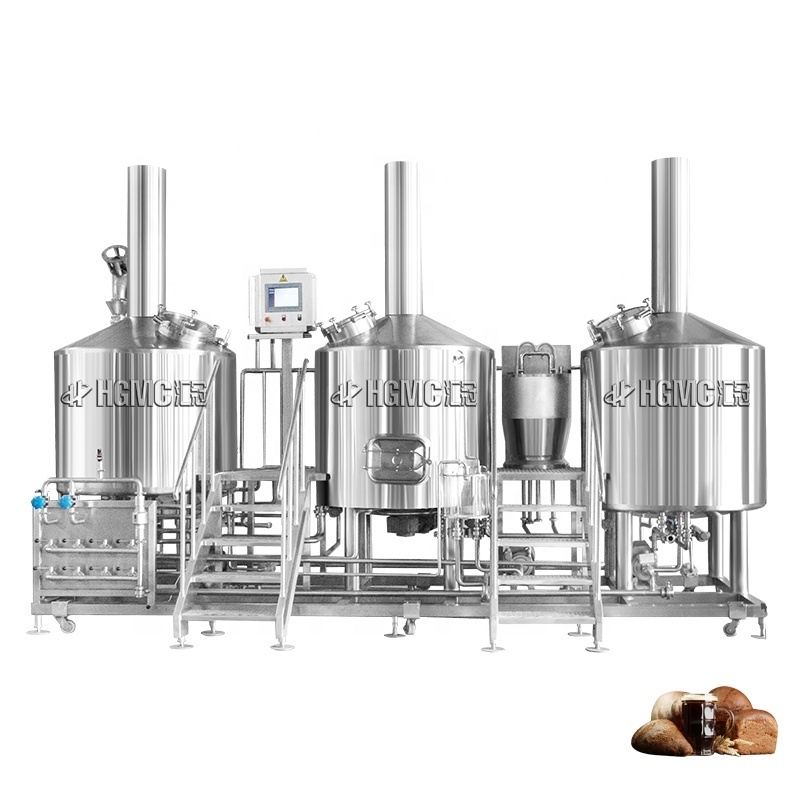

50% discount 1000L Beer Brewing Equipment Turnkey Project Beer Equipment
|
Model
|
HG-1000
|
|
|
|
|||
|
Capacity
|
1000L/Batch
|
|
|
|
|||
|
Material
|
SUS304
|
|
|
|
|||
|
Application
|
Restaurants, bars, hotels, brewery
|
|
|
|
|||
|
Heating way
|
Sean heating/ Electric heating/ Direct Fire heating
|
|
|
|
|||
|
Voltage
|
AC380/220V,50/60HZ
|
|
|
|
|||
|
Power
|
27Kw
|
|
|
|
|||
|
Water consumption
|
3.5m3/T
|
|
|
|
|||
|
Diameter
|
1360mm
|
|
|
|
|||
|
Height
|
2800m
|
|
|
|
|||
|
Degree of automation
|
Semi-automatic/Fully automatic
|
|
|
|
|||
Introduction to Beer Equipment:
1000L brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber lager, dark lager,ale and etc at proper temperature with different raw material. According to the client’s requirement, HG can produce stainless steel 304 brewhouse, copper and etc.
1000L brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale lager, amber lager, dark lager,ale and etc at proper temperature with different raw material. According to the client’s requirement, HG can produce stainless steel 304 brewhouse, copper and etc.
2-Vessel Main Features:
A typical two-vessel Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups.Next inline is the combination of the Kettle and Whirlpool tanks.
3-Vessel Main Features:
A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels.
Send Inquiry
|
Item
|
Production capacity
|
Volume in US Gallon
|
Heating area
|
Tank diameter
|
Height
|
|
HG-50
|
50L/day
|
14US Gallon
|
0.15㎡
|
550mm
|
1500mm
|
|
HG-100
|
100L/day
|
26US Gallon
|
0.25㎡
|
650mm
|
2000mm
|
|
HG-200
|
200L/day
|
53US Gallon
|
0.25㎡
|
910mm
|
2200mm
|
|
HG-300
|
300L/day
|
79US Gallon
|
0.3㎡
|
910mm
|
2300mm
|
|
HG-500
|
500L/day
|
132US Gallon
|
0.5㎡
|
1160mm
|
2400mm
|
|
HG-600
|
600L/day
|
158US Gallon
|
0.6㎡
|
1160mm
|
2500mm
|
|
HG-700
|
700L/day
|
185US Gallon
|
0.7㎡
|
1260mm
|
2500mm
|
|
HG-800
|
800L/day
|
212 US Gallon
|
0.8㎡
|
1260mm
|
2500mm
|
|
HG-1000
|
1000L/day
|
264US Gallon
|
1.0㎡
|
1360mm
|
2800mm
|
|
HG-1500
|
1500L/day
|
396US Gallon
|
1.5㎡
|
1560mm
|
2900mm
|
|
HG-2000
|
2000L/day
|
528US Gallon
|
2.0㎡
|
1960mm
|
3150mm
|
|
HG-2500
|
2500L/day
|
660US Gallon
|
2.5㎡
|
1960mm
|
3200mm
|
|
HG-3000
|
3000L/day
|
792US Gallon
|
3.0㎡
|
2060mm
|
3800mm
|
|
HG-5000
|
5000L/day
|
1320US Gallon
|
5.0㎡
|
2260mm
|
4400mm
|
Send Inquiry
1.Q:Does your company have foreign installation experience?
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A: The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5.Q: How long the warranty will be?
A: 6-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.
6.Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A: The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5.Q: How long the warranty will be?
A: 6-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.
6.Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
8.The price does not include electrical appliances, etc.
1.Pre-service:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
Title goes here.
2.After service
We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements gowrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements gowrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
