Quick Details
-
Temperature Stability:
-
±1℃
-
Display Resolution:
-
0.1℃
-
Temperature Uniformity:
-
±1℃
-
Humidity Range:
-
30~95%RH
-
Power Supply:
-
110V - 220V
-
Ambient Temperature:
-
+5~35℃
-
Shelf(Standard):
-
3pcs
Quick Details
-
Power:
-
4000W
-
Place of Origin:
-
Shanghai, China
-
Temperature range (℃):
-
With illumination:10~55℃ Without illumination:0~55℃
-
Temperature Stability:
-
±1℃
-
Display Resolution:
-
0.1℃
-
Temperature Uniformity:
-
±1℃
-
Humidity Range:
-
30~95%RH
-
Power Supply:
-
110V - 220V
-
Ambient Temperature:
-
+5~35℃
-
Shelf(Standard):
-
3pcs

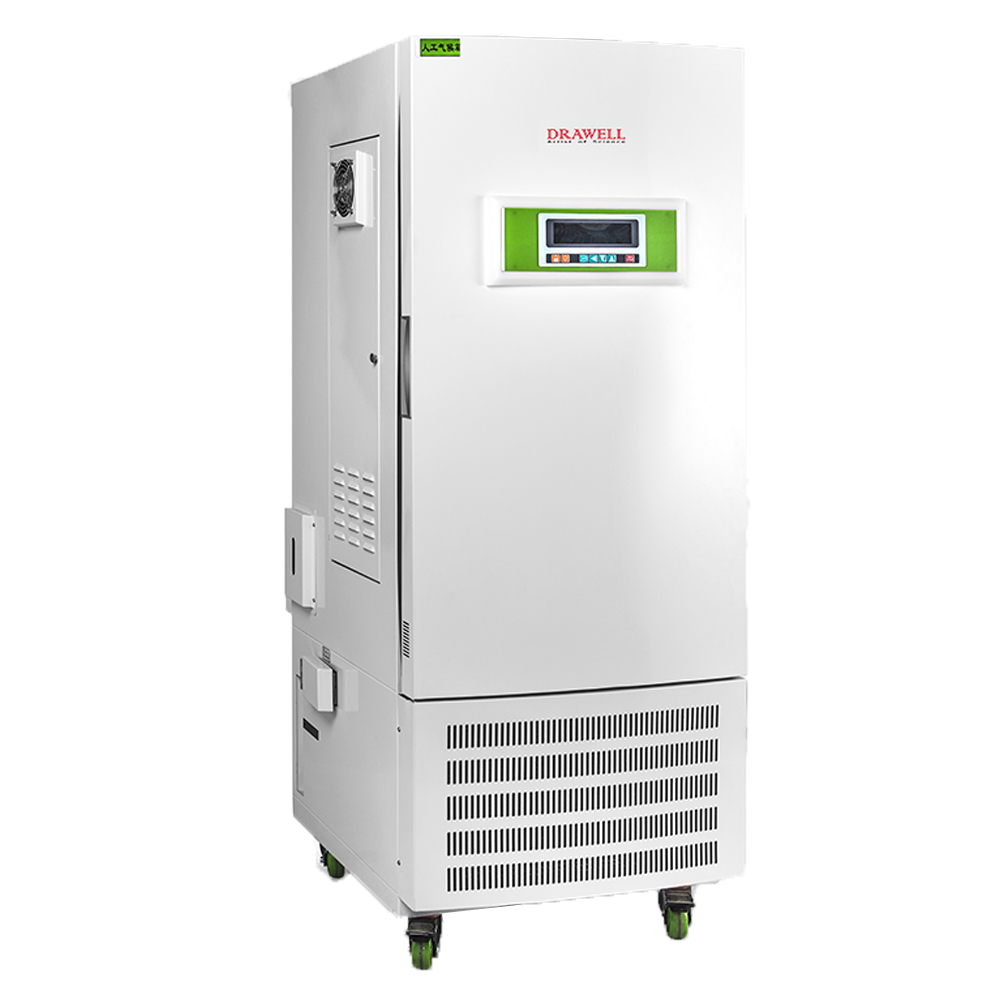

DW-LAC-N Climate Chamber -(Fluorine-free Refrigeration)
Features:
Adopt imported fluorine-free compressor, environment friendly and reliable.
Adopt imported brand humidity sensor, with self-designed built-in water tank and electric heating humidifying system, ensuring high accuracy for humidity.
Double door design, the inner door is made of tempered glass, can directly observe the culture in the working chamber. the outer door is magnetically sealed.
Large LCD touch screen to display multiple parameters at same time , menu interface, enjoyable operation.
Adopt mirror stainless steel inner tank, shelves inside the chambers can be freely adjustable without tool,convenient for disinfection and cleaning.
The left bottom side is equipped with detachable water level sensor to control the humidifying of tank, which is convenient for operators to check and repair.
Intelligent Control
It can simulate the temperature changes of nature during the day and night and the multi-directional nature light.
The parameters set by the user can be automatically stored in case of power cut, it will run the original setting program after power restored.
Automatically control for circulating wind speed to avoid plant blowing by strong wind duringtest.
Multi-segment program Control
The temperature, humidity, illuminance, time and heating rate are controlled by multi-segment program, which simplifies the complicated test process and realizes automatic control and operation.
Self-diagnosis function
When the climate chamber fails, the fault information will display on LCD screen,easy for check.
Safety function
l Independent temperature limit alarm system, giving sound and visual alarm to prompt operator, ensuring safe operation of equipment.
l Alarm for high or low temperature.
l E quipped with leakage protection.
l Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating).
l Data control system (optional)
l Optional RS485 or USB interface and software.
l With data logging, data communication, and failure analysis function.
l Optional printer for data recording and print, compliance with GMP standards.
Optional Wireless alarm system (SMS alarm system)
When the device fails and operator is not in the field, the system will automatically collect the fault signal and send a message to the the receiver's mobile phone in first time to ensure timely troubleshooting and resume testing.
Options:
1. RS485/232 connector and software
2. Wireless alarm system (SMS alarm system)
3. CO 2 inlet (promoting plant growth)
4. CO 2 controller (imported infrared CO2 sensor) ,CO 2 Range:0~10%,0-3000ppm
5. Remote control system
5. Specifications
|
Model |
DW-LAC-175-N |
DW-LAC-275-N |
DW-LAC-375-N |
DW-LAC-475-N |
DW-LAC-1075-N |
|
Chamber Volume(L) |
175 |
275 |
375 |
475 |
1075 |
|
Temperature range (℃) |
With illumination:10~55℃ Without illumination:0~55℃ |
||||
|
Temperature Stability |
±1℃ |
||||
|
Display Resolution |
0.1℃ |
||||
|
Temperature Uniformity |
±1℃ |
||||
|
Humidity Range |
30~95%RH |
||||
|
Humidity Deviation |
±3RH |
||||
|
Illumination Intensity |
0~12000LX |
0~20000LX |
0~25000LX |
0~30000LX |
0~30000LX |
|
Program Control |
Separately set for temperature and illuminance, can set 30-segment program , each section can be set from 1 to 99 hours. |
||||
|
Power Rating |
860W |
1700W |
2100W |
4000W |
5000W |
|
Power Supply |
AC220V, 50HZ |
||||
|
Ambient Temperature |
+5~35℃ |
||||
|
Working |
Long continuous operation |
||||
|
Chamber Size(W×D×H)cm |
45*42*93 |
58*51*93.5 |
59*55*116 |
70*55*125 |
95*70*160 |
|
Exterior Size(W×D×H)cm |
61*62*150 |
74*71*157 |
75*75*173 |
86*75*182 |
101*90*224 |
|
Shelf(Standard) |
3pcs |
||||
