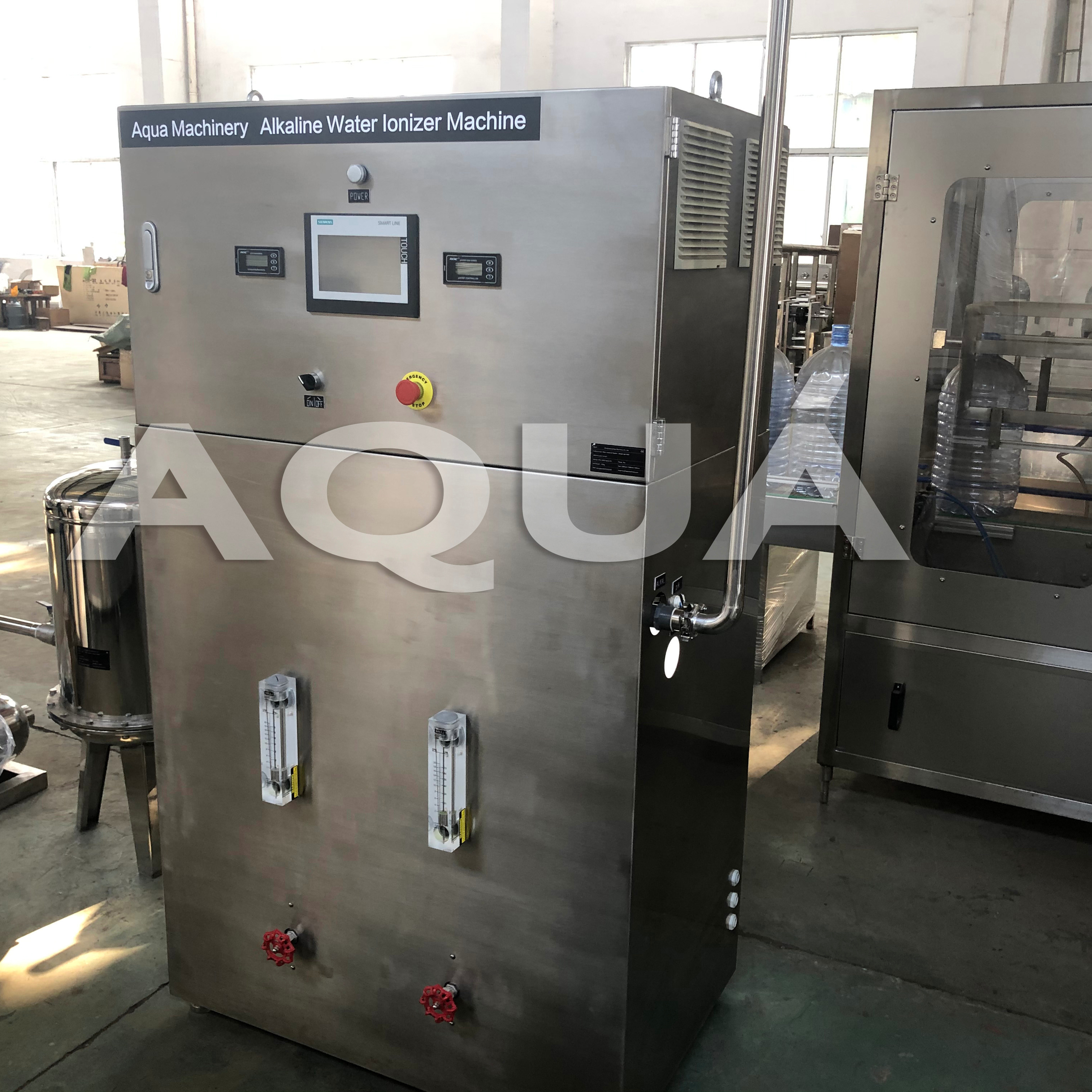

Industrial Alkaline Water Ionizer machine Made Popular in Japan Indonesia and Europe

Industrial Alkaline Water Ionizer machine Made Popular in Japan Indonesia and Europe

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: According to your order

Size:: According to your order

Power:: 3kw

Weight (KG):: 800 kg

Product Name:: Industrial Alkaline Water Ionizer machine Made Popular

Keyword:: water ionizer

Electrolyzer:: Our pant

Electric:: Siemens

Certification:: CE

After Warranty Service:: 1 YEARS

Usage:: to make PH 7-10 drinking Alkaline water

Type:: one set

Model:: AM-1000

Quick Details

Place of Origin:: China

Brand Name:: AQUA

Material:: Wooden case, SUS 304

Weight:: According to your order

Size:: According to your order

Power:: 3kw

Weight (KG):: 800 kg

Product Name:: Industrial Alkaline Water Ionizer machine Made Popular

Keyword:: water ionizer

Electrolyzer:: Our pant

Electric:: Siemens

Certification:: CE

After Warranty Service:: 1 YEARS

Usage:: to make PH 7-10 drinking Alkaline water

Type:: one set

Model:: AM-1000

Product Overview

What is Alkaline Water ?

1. Production Process: Electrolyzed water is usually water with two properties after water is electrolyzed. One of them is alkaline ionized water

2. Ph of Drinking Alkaline water : Between 7-10

3. E lectrolyzed water that is completely generated by electrolysis equipment, without adding any substances to change the pH

Difference between our machine and others

1. Technology is the core of the alkaline water ionizer, the electrolyzer is our pant, we do not get from market, we did it by ourselves, so the quality is under the control

2. The electric parts are from International brand, such as Siemens, OMRON etc, Even the small part which got in China market, we also used the products from public company, The production standards and acceptance standards of large companies are relatively strict, and the product quality and stability are relatively better.

3. Our production standards : Industrial Type not Commercial Type, even some parts standard is Military level.

Do we need other filter system to make Alkaline water ?

1. yes. alkaline water ionizer system required feeding water TDS between 40-120.mg/L, so if your water is from underground water, deep well, we need to filter your water by RO machine, Ultrafiltration system, but we need to check your water quality first.

2. We had a case before, Customer's raw water is From mountain with a good quality, the conductivity is 249mg.L, so he only needs a precision filter before ionizer, no need basic water treatment system. More Simple.

Details

Techncial Dates

Model: AM-10,000
pressure of inlet water	0.05-0.15MPA
power source	380v 50hz 3 phase
max ionized power	12KW
Outlet water capacity	10T/H
inlet water capacity	20T/H
generator way	continuously
Inlet water ph	≥60
outlet water PH	9
Inlet water tds	40-120ppm
Acid water with alkaline water ration	1:1
Machine size	400015002000mm

Electric Configuration

Electric and automatic control	breaker	ABB
Electric and automatic control		AC contactor	ABB
electrolysis device	electrolytic bath	Made by self Ver5.X Titanium platinum alloy plate
		ion membrane	Japan
		electrolytic power	Customization (institute of automation)
PLC		Siemens
Touch screen		Siemens
Frequency		Schneider
terminal		Phoenix
Air conditioner		Shanghai
waterway	SUS304 pipes and valves	Food grade ) Top ten sellers in China
online instrument	inlet water conductivity	China supplier Create (top 10 suppliers in China )
online instrument		outlet water conductivity	China supplier Create (top 10 suppliers in China )
	PH meter	Greatex ( Top one in China )
	Conductivity meter	Greatex ( Top one in China )
pre-treatment safety filter	stainless steel precision filter	Stainless steel 304
