Quick Details
-
Power:
-
1.2KW
-
Dimension(L*W*H):
-
2380*1400*1650mm
-
Weight:
-
598
-
Certification:
-
ISO9001
-
Sewing head:
-
300U Chain stitch
-
Air Supply:
-
0.7-1.0KG
-
Table lifting range:
-
50-150mm
Quick Details
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Brand Name:
-
XIDENGBAO, XIDENGBAO
-
Voltage:
-
Single phase,220V,50HZ, 380V
-
Power:
-
1.2KW
-
Dimension(L*W*H):
-
2380*1400*1650mm
-
Weight:
-
598
-
Certification:
-
ISO9001
-
Sewing head:
-
300U Chain stitch
-
Air Supply:
-
0.7-1.0KG
-
Table lifting range:
-
50-150mm

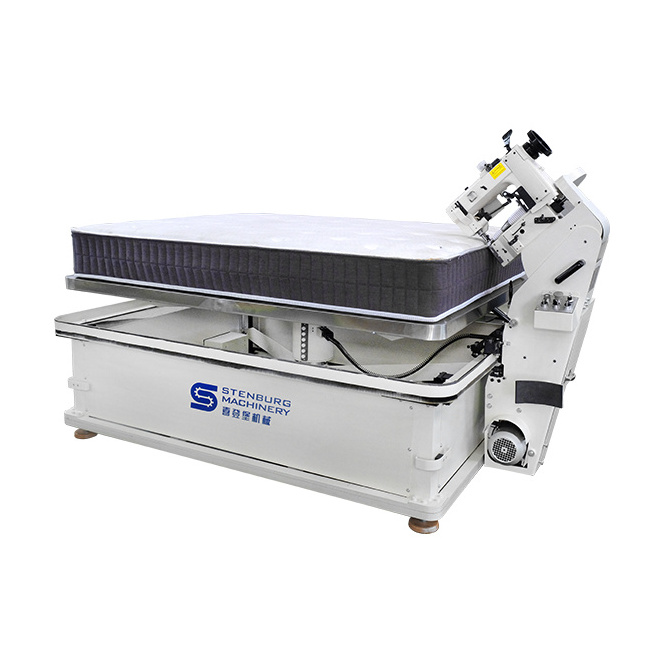

WB-3A High Speed Mattress Tape Edge Machine
Technical characteristics
1. It adopts advanced 300U chain stitch high-speed sewing head;
2. Electric lift working table, manual adjustable sewing head;
3. Sewing, sliding guide move adopt variable frequency speed regulation, speed auto slowdown at corner;
4. The stitches are straight, even and beautiful;
5. Stainless steel table;
6. Stands set the level adjustment device;
7. Built-rotating electrical power supply, no special requirement for installing space;
8. Stable performance, low vibration and noise.
1. It adopts advanced 300U chain stitch high-speed sewing head;
2. Electric lift working table, manual adjustable sewing head;
3. Sewing, sliding guide move adopt variable frequency speed regulation, speed auto slowdown at corner;
4. The stitches are straight, even and beautiful;
5. Stainless steel table;
6. Stands set the level adjustment device;
7. Built-rotating electrical power supply, no special requirement for installing space;
8. Stable performance, low vibration and noise.
|
Productivity
|
15pcs/h
|
|
Mattress thickness
|
50-450mm
|
|
Table lifting range
|
140mm
|
|
Table size
|
2000*1600mm
|
|
Sewing thickness range of mattress
|
50-300mm, 150-400mm, 250-500mm
|
|
Machine size
|
2380×1400×1650mm
|
|
Motor type
|
Single phase，220V，50HZ
|
|
Total power
|
1.12KW
|
|
Weight
|
600KGS
|
