Quick Details
-
Brand Name:
-
ESG
-
Model Number:
-
12.8V120Ah
-
Battery Size:
-
LIFEPO4
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
14.5kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Product name:
-
12.8 Volt LifePO4 Storage Batteries
-
Usage:
-
Power Wheels, Camping, Solar, Fish Finder
-
Material:
-
ABS Containers
-
Voltage:
-
12.8 Volt
-
Capacity:
-
120Ah
-
Sealed Type:
-
Lifepo4 Battery
-
Size ( L*W*H ):
-
(229±1)mm*(138±1)mm*(216±2)mm
-
Warranty:
-
3~5 years
-
OEM/ODM:
-
Yes(Accepted)
Quick Details
-
Storage Type:
-
The optimum storage temperature is 25 ℃ (77 ℉)
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Home Emergency Solar System
-
Brand Name:
-
ESG
-
Model Number:
-
12.8V120Ah
-
Battery Size:
-
LIFEPO4
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
14.5kg
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
0.5C
-
Product name:
-
12.8 Volt LifePO4 Storage Batteries
-
Usage:
-
Power Wheels, Camping, Solar, Fish Finder
-
Material:
-
ABS Containers
-
Voltage:
-
12.8 Volt
-
Capacity:
-
120Ah
-
Sealed Type:
-
Lifepo4 Battery
-
Size ( L*W*H ):
-
(229±1)mm*(138±1)mm*(216±2)mm
-
Warranty:
-
3~5 years
-
OEM/ODM:
-
Yes(Accepted)

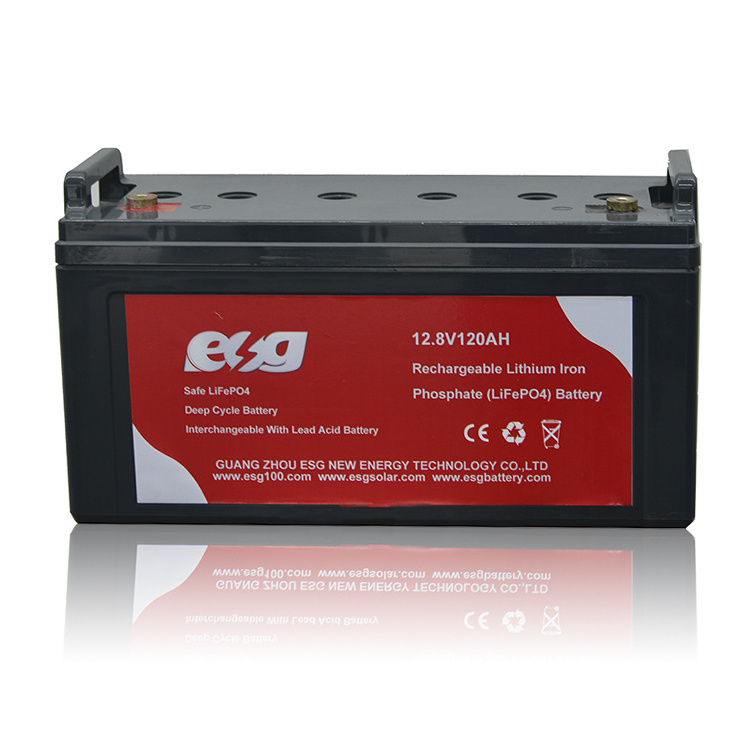

ESG Deep Cycle 12.8V100Ah 110Ah 120Ah Deep Cycle Rechargeable Certificate Lithium Ion Lifepo4 Battery 12.8 Volt
Why Choose US?
Why Choose US?
Why Choose US?
ESG Deep Cycle 12.8V100Ah 110Ah 120Ah Deep Cycle Rechargeable Certificate Lithium Ion Lifepo4 Battery 12.8 Volt
ESG Deep Cycle 12.8V100Ah 110Ah 120Ah Deep Cycle Rechargeable Certificate Lithium Ion Lifepo4 Battery 12.8 Volt
ESG Deep Cycle 12.8V100Ah 110Ah 120Ah Deep Cycle Rechargeable Certificate Lithium Ion Lifepo4 Battery 12.8 Volt
New quality ABS raw material
Use new ABS raw materials for impact resistance,
heat resistance and low temperature
Excellent electrical insulation, engineering grade material, widely used
ESG Deep Cycle 12.8V100Ah 110Ah 120Ah Deep Cycle Rechargeable Certificate Lithium Ion Lifepo4 Battery 12.8 Volt
High cycle, long life, cycle life more than 3000 times
Automotive grade cell, high waterproof shell, the same capacity for longer endurance
Complete certification, with overseas export certification in many aspects
Rv energy storage
Travel outdoors
Communication base station
Solar energy photovoltaic
| Performance index for battery pack | |||
| Item(s) | Specification | Remark | |
| Nominal voltage (V) | -- | 12.8 | -- |
| Nominal Capacity(Ah) | -- | 120 | -- |
| Charging | Charging voltage Max. (V) | 14.6 | -- |
| Continue charging current Max. (A) | ≤30 | -- | |
| Discharging | End of discharging voltage Min.(V) | 8 | -- |
| Continue discharging current Max.(A) | ≤30 | -- | |
| Operation temperature (℃) | Charging | 0℃~45℃ | -- |
| Discharging | ‘-20℃~60℃ | -- | |
| Internal resistance(mΩ) | ≤80 | AC 1kHZ | |
| Weight (Kg) | ≈14.5 | -- | |
| Size (mm) | 329x172x219 | -- | |
| Parameters table for protect circuit board | |||
| Item | Symbol | Content | Criterion |
| Over charge Protection | VDET1 | Over charge detection voltage | 3.9±0.05V |
| tVDET1 | Release voltage for over-charging | 3.8±0.1V | |
| Over discharge protection | VDET2 | Over discharge detection voltage | 2.0±0.1V |
| tVDET2 | Release voltage for over-discharging | 2.3±0.1V | |
| Over current protection | IDP1 | Over current detection current 1 | 120±20A |
| tVDET3 | Detection delay time | 40±20mS | |
| Cell balance | -- | Bleed StartPoint | 3.6±0.025V |
| -- | Bleed Current | 72±10mA | |
| -- | Balance Mode | charge | |
| Interior resistance | RSS | Main loop electrify resistance | RSS≤20mΩ |
| static current | IDD | -- | ≤20μA |
| Suggest working current | I | Max continuous charge/discharge current | ≤30A |
| Temperature Protection | T | -- | 65℃ |
1.Surface waterproof protection
The upper cover and bottom shell are injection molding, and the terminal is fixed with glue
Good sealing, effectively prevent rain damage to the battery
2.Strong and durable long service life
New material production, environmental protection material, support customization
Wear resistant utility
About Delivery
After the payment is completed, we will pack and deliver the goods as soon as possible.
It depends on the quantity. Please contact the customer service to purchase the products
Contact, please consult customer service for details.
The company has passed IS09001 quality system certification, IS01 4001:2015
environmental management system certification, and its products have passed a series of
international authoritative certifications such as SGS, UN38.3, CE, RoHS, MSDS, CNAS, etc.
1) Inner box - carton - pallet - load on container
2) Packaging also can be made by customers requirements
Guangzhou ESG New Energy Technology Co., Ltd. is mainly engaged in the research, development, production and sales of new energy products such as lithium batteries, lead-acid batteries, inverters and solar panels.
With the progress of solar cell technology and the development of low-power semiconductor design technology, the application of solar cells to replace the traditional battery gradually appeared. Adhering to the service concept of "scientific and technological innovation, quality assurance, and creating value for customers" and "scientific and technological innovation, quality assurance, and creating value for customers", under the guidance and innovation of our professional R&D staff, we have established friendly cooperative relationships with various power supply companies and power plants in China's electric power system by virtue of the exquisite appearance and superior electrical performance of EsenGAu's products. At the same time, we have also developed a wide range of foreign markets, products are exported to Japan, Korea, the United States, Europe, Australia and other places.
1.ESG 35 years brand experience
2.China first technology .Got the patent which Let battery 30% longer life.
3. Battery doctor. Factory got battery detector patent.It can analyze and repair faulty batteries,
4.Delivery fast :12V7AH 50,000 units per day, hot-selling models 100AH, 200AH keep in stocks So 48 hours delivery
5.Complete certificate. We keep ISO, CE, UL CCC, ROHS, TUV, SGS, IEC UN38.3 certificates
6.One of 5 major suppliers designated by the China government for tender.
Q1: What's the warranty of your battery?
A: We provide one year warranty for all the products except for artificial damage or soaking.
Q2:Is this product safe?
A: Over-charge, over-discharge, over-load and short-circuit protection.
Q3: What's the lead time?
A: 1.Sample orders: 1-3 working days
2.Bulk orders: 3-7 working days according to different quantities
3.OEM: 7-12 working days on receipt of sample confirmation
Q4: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, but we will ask a sample fee. Sample fee will be returned back in future order.
Q5: Is it the capacity of your battery real?
A: All of our batteries are real full capacity with top quantity, competitive price& long lifecycle.
