Quick Details
-
Voltage:
-
220V
-
Rated Power:
-
14KW
-
Dimension(L*W*H):
-
3000*1800*1200 mm
-
Year:
-
2019
-
Certification:
-
CE
-
Traveling speed:
-
5000mm/min
-
Color:
-
Red
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Control system:
-
START Control System
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Portable Type
-
Weight:
-
150KG
Quick Details
-
Dimensions:
-
3000*1300*1200 mm
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Huawei
-
Voltage:
-
220V
-
Rated Power:
-
14KW
-
Dimension(L*W*H):
-
3000*1800*1200 mm
-
Year:
-
2019
-
Certification:
-
CE
-
Traveling speed:
-
5000mm/min
-
Color:
-
Red
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Control system:
-
START Control System
-
Cutting mode:
-
Plasma Cutting+ Flame Cutting
-
Application:
-
Industrial Metal Cutting
-
Type:
-
Portable Type
-
Weight:
-
150KG

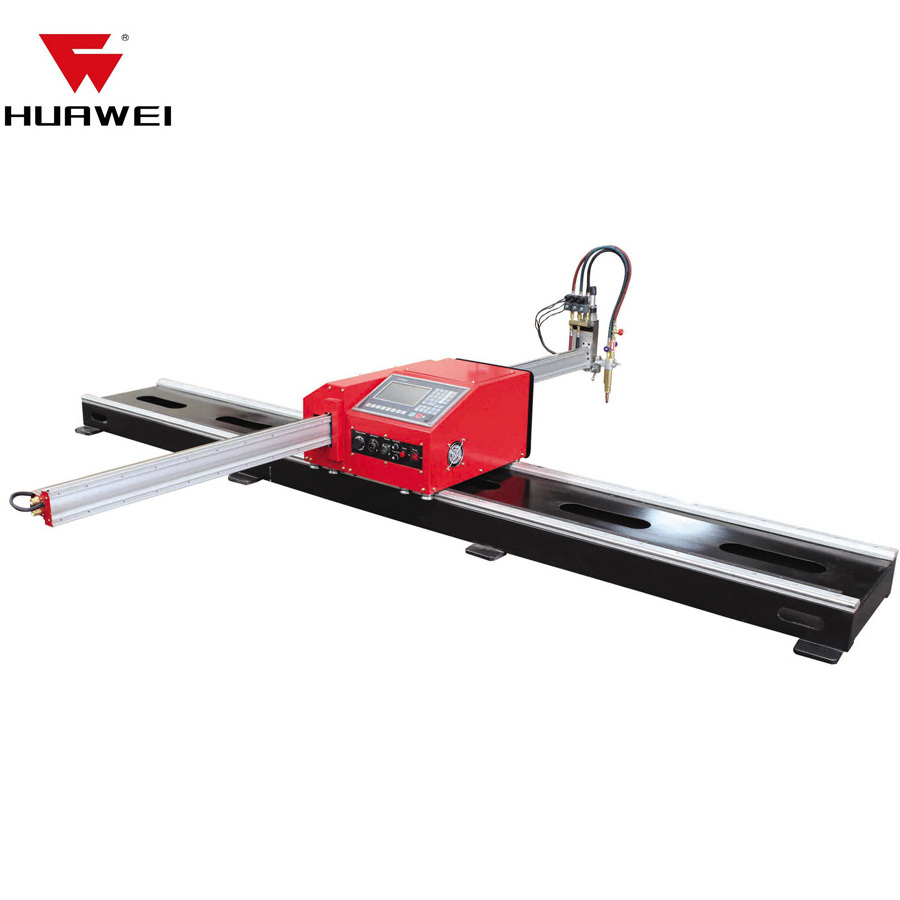

HNC-1800W Heavy rail portable mini small cnc plasma cutter cutting machine Huawei popular model
(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB
to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the
torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,
protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.
| Model |
Cutting Range MM |
Supply Voltage V/HZ |
Cutting TorchNumber of groups |
Cutting speed (mm/min) |
MAX no-loading speed (mm/min) |
Overall dimensions L*W*H |
Weight (kg) |
| HNC-1800W-3 | 1800*3000 | AC220V-50HZ | 1 | 50-750 | 3000 | 3.5*2.6*0.4 | 175 |
| HNC-1800W-3.5 | 1800*3500 | AC220V-50HZ | 1 | 50-750 | 3000 | 4*2.6*0.4 | 191 |
| HNC-1800W-4 | 1800*4000 | AC220V-50HZ | 1 | 50-750 | 3000 | 4.5*2.6*0.4 | 207 |
| HNC-1800W-5 | 1800*5000 | AC220V-50HZ | 1 | 50-750 | 3000 | 5.5*2.6*0.4 | 239 |
| HNC-1800W-6 | 1800*6000 | AC220V-50HZ | 1 | 50-750 | 3000 | 6.5*2.6*0.4 | 271 |
HNC-1800W-Q this series use the high cost-effective light track good option for low budget customer.
HNC-1800W this series use the heavy-duty track working more stable.
The torch part of HNC-1800W Portable CNC cutting Machine
The Separate of HNC-1800W Portable CNC cutting Machine
1. Main engine 7. Transverse guide rail assembly 2. Control system 8. Power cord 3. Operation panel assembly 9. Lifting device assembly 4. Longitudinal guide rail assembly 10. Torch gripper assembly 5. Lifting motor line 11. Torch assembly 6. Gas supply interfa
