Quick Details
-
Power:
-
0.55kw-30kw
-
Dimension(L*W*H):
-
customized
-
Weight:
-
800 KG
-
Product name:
-
vacuum evaporator concentrator
-
Material:
-
SS304 SS316L
-
volume:
-
50L-50000L
-
vaccum pump:
-
1.5KW-11KW
-
heating way:
-
steam or electric
-
application:
-
juice food oil
-
Name:
-
Short-range Molecular Distillation System
-
Application Industries:
-
Honey
-
Main uses:
-
falling film vacuum pressure ball spherical
-
Origin:
-
China wenzhou Lenotank
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LENO
-
Voltage:
-
120V-480V
-
Power:
-
0.55kw-30kw
-
Dimension(L*W*H):
-
customized
-
Weight:
-
800 KG
-
Product name:
-
vacuum evaporator concentrator
-
Material:
-
SS304 SS316L
-
volume:
-
50L-50000L
-
vaccum pump:
-
1.5KW-11KW
-
heating way:
-
steam or electric
-
application:
-
juice food oil
-
Name:
-
Short-range Molecular Distillation System
-
Application Industries:
-
Honey
-
Main uses:
-
falling film vacuum pressure ball spherical
-
Origin:
-
China wenzhou Lenotank
Products Description
How it works:
The steam enters the shell process of the heating chamber. After the material liquid in the column tube is heated, the liquid level rises. It is sprayed into the evaporation chamber from the nozzle for vapor-liquid separation. The material liquid returns from the circulating tube to the lower part of the heating chamber for reheating. When the material liquid is heated and sprays into the evaporation chamber to form a cycle. The degree of concentration of the liquid shall be discharged from the outlet after sampling. The secondary steam evaporated from the evaporation chamber eliminates the foam through the foam remover and then passes through the vapor-liquid separator. Some of the material and liquids return to the evaporation chamber. The remaining secondary steam is cooled into liquid by the condenser and cooler and enters the collector. The non-coagulated gas is extracted by the vacuum pump.
|
Profile type
|
vacuum evaporator concentrator
|
|
|
||
|
Material
|
SS304 or SS316L
|
|
|
||
|
Capacity
|
0.1T/H-5T/H (Customized)
|
|
|
||
|
Heater type
|
Electric heating / Steam heating
|
|
|
||
|
The Working Temperature
|
40°C~80°C
|
|
|
||
|
The Working Pressure
|
-0.08Mpa
|
|
|
||
|
Power
|
0.55KW-30KW
|
|
|
||
|
|
|
|
|
||
|
PARTS DETAILS
|
1.Quick open manhole / Pressure manhole
|
|
|
||
|
|
2.Various types of CIP cleaners
|
|
|
||
|
|
3.Sterile respirator
|
|
|
||
|
|
4.Adjustable Legs
|
|
|
||
|
|
5.Inlet and Outlet sanitary valve.
|
|
|
||
|
|
6.Thermometer (According to customer requirements ).
|
|
|
||
|
|
7.Scraped wall mixer .(According to customer requirements).
|
|
|
||
|
|
8.Liquid level meter and lever controller (According to customer requirements) .
|
|
|
||

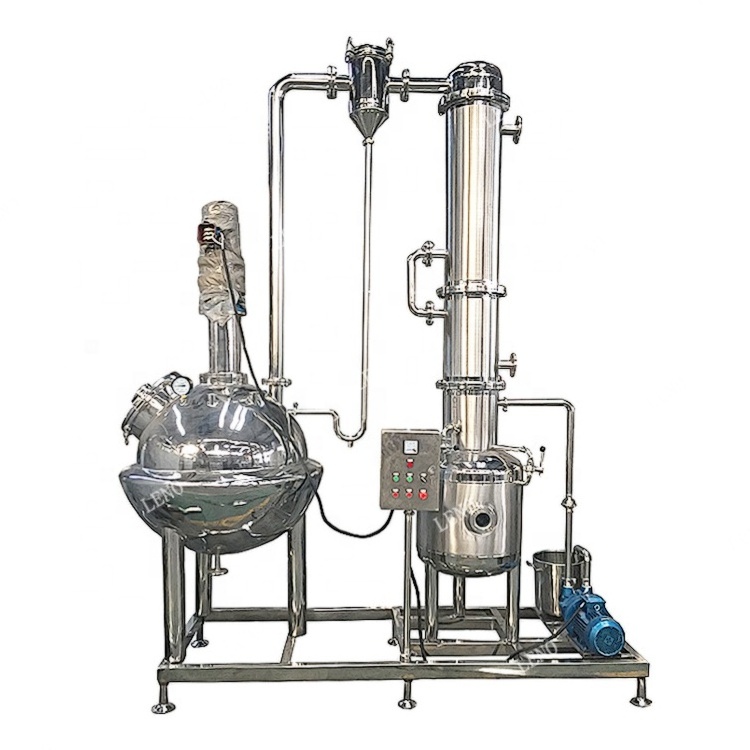

1. vacuum concentrator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials.vacuum concentrator is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2. Vacuum concentrator is suitable for liquid evaporation and concentration in, food, chemical, light industry and other industries. . This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration
process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
2. Vacuum concentrator is suitable for liquid evaporation and concentration in, food, chemical, light industry and other industries. . This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration
process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.
Product Paramenters
|
Model
|
(L)
Equipment volume |
(KG/H)
Evaporation quantity |
(Mpa)
Working Pressure in jacket |
(Mpa)
Vacuum degree in tank |
KW
Vacumm Pump |
(KG)
Weight of equipment |
(RPM)
Agitator speed |
|
|
|
|
|
|
|
|
|
|
LNC100
|
150
|
30
|
≤0.1MPa
(According to customer requirements) |
-0.08Mpa
|
1.5KW
|
320
|
(According to customer requirements)
|
|
LNC200
|
250
|
70
|
|
|
2.2KW
|
460
|
|
|
LNC500
|
600
|
180
|
|
|
3.0KW
|
680
|
|
|
LNC1000
|
1000
|
300
|
|
|
4.0KW
|
860
|
|
|
LNC2000
|
2000
|
1000
|
|
|
5.5KW
|
1120
|
|
|
LNC3000
|
3000
|
1500
|
|
|
7.5KW
|
1300
|
|
|
LNC5000
|
5000
|
3000
|
|
|
11.0KW
|
1700
|
|
