Quick Details
-
Place of Origin:
-
Guangdong, China
-
Sensor:
-
AP Receiver
-
Style:
-
AP Receiver
-
Video Compression Format:
-
AP Receiver
-
Data Storage Options:
-
AP Receiver
-
Application:
-
AP Receiver
-
Brand Name:
-
HQCAN
-
Certification:
-
CE
-
Origin:
-
CN(Origin)
-
Model Number:
-
AP-101
-
Item Type:
-
Communication Converter
-
transmission Distance:
-
1000 meters
-
Power:
-
only 0.1W
Quick Details
-
Special Features:
-
500
-
Function:
-
AP Receiver
-
Customized support:
-
OEM, ODM, Customized logo, Software reengineering, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Sensor:
-
AP Receiver
-
Style:
-
AP Receiver
-
Video Compression Format:
-
AP Receiver
-
Data Storage Options:
-
AP Receiver
-
Application:
-
AP Receiver
-
Brand Name:
-
HQCAN
-
Certification:
-
CE
-
Origin:
-
CN(Origin)
-
Model Number:
-
AP-101
-
Item Type:
-
Communication Converter
-
transmission Distance:
-
1000 meters
-
Power:
-
only 0.1W

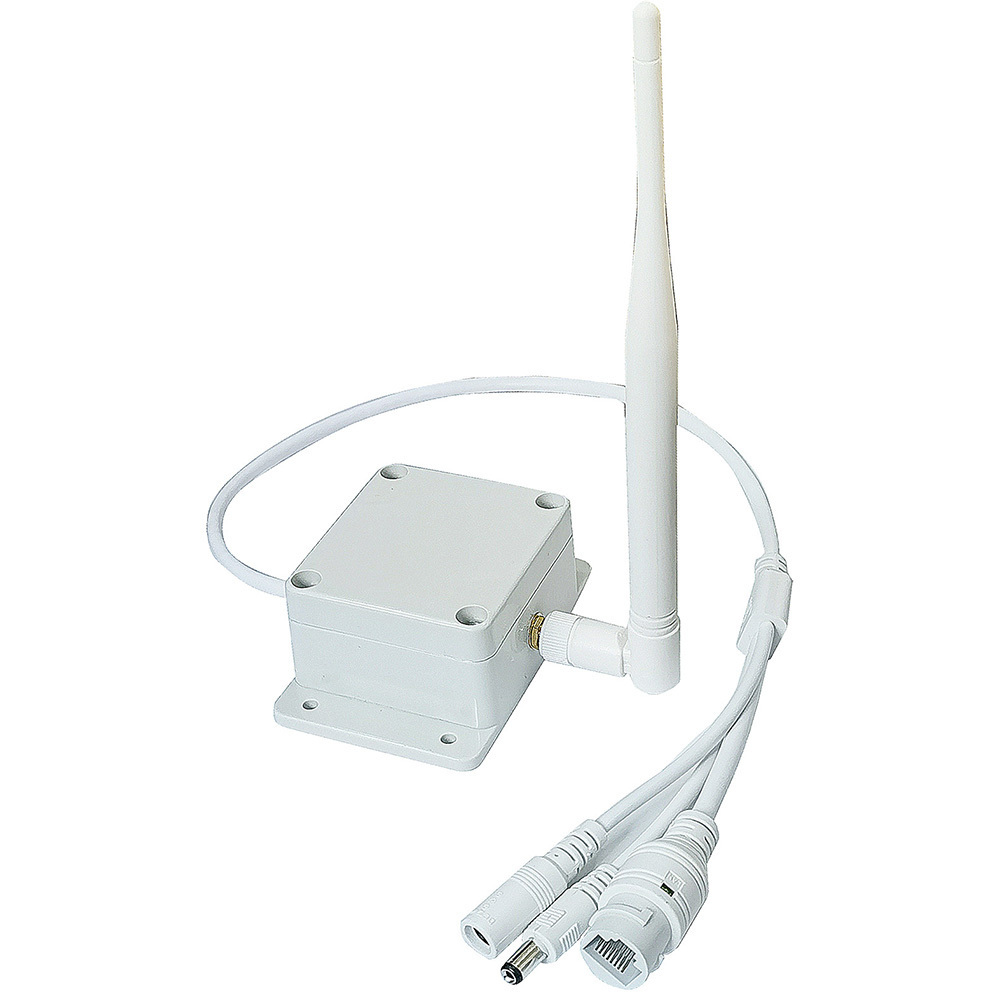

1x Receiver+ 1x Sender 1000 meters long distance Wireless WIFI transmitter Kit
for network camera and Ethernet equipment
One Receiver Max support connetion Four Senders
If you need one-to-many devices,
Product description
IEEE802.11AH is a large-connection IOT technology protocol designed by the 802.11 protocol suite to enter the IoT market.
IEEE802.11AH is a new wireless protocol used in WLAN systems in the frequency band below 1GHz. Suitable for industrial automation,
Security monitoring, Internet of Things and other industries. Such as security video surveillance, drone wireless image transmission, sensor network smart meters,
Sensors and smart payment link, hotspot coverage expansion and cellular network diversion.
This is a new wireless transmission equipment package, divided into two parts: AP Send and AP Receiver. And can be freely matched, a receiver can receive up to 4 sender signals at the same time. which can transmit Ethernet equipment within 100MB, it can transmit up to 1000 meters in the open and unobstructed. If there are obstacles or devices with large network traffic, the transmission distance may be reduced. It is worth mentioning that even if there are obstacles, the device can be transmitted in a surround mode. For example: if you place a transmitter on the 1st floor, you can use the receiver on the 8th floor to receive network signals (it depends on the number of windows). The equipment uses a transmission frequency of 915MHz, which has the characteristics of long transmission distance and strong anti-interference ability. Using an encryption algorithm, other wireless devices cannot search for the device's signal, so it is hidden and safe. The product uses a 360-degree omnidirectional antenna design, so you don't need to adjust the position of the transmitter and receiver. Easy to install and use.
Surveillance application just right:
* The device can provide a physical bandwidth of 150Kbps-32.5Mbps to support low-rate sensors, such as remote wireless access control systems, etc.
* The traditional 2.4GHz/5GHz wireless surveillance system can not avoid electromagnetic interference in complex environments, and large path attenuation, and unsatisfactory non-visual distance transmission distance.
* This equipment can solve the problem of unsatisfactory transmission distance or frequent disconnection of equipment by installing AP101. At the same time, AP101 is compatible with wired/wireless packages, flexible configuration, and one-key pairing of AP/STA mode.
Main electrical performance indicators:
·Working frequency: 920 - 930MHz (Working center frequency 920MHz).
·Spectrum bandwidth: 1M, 2M, 4M, 8M, 16M
·Maximum rate: 32.5Mbps
Gain: TBD
Horizontal lobe width: 360°
Vertical lobe width: TBD
Standing wave ratio: <1.5
Impedance: 50R
Working temperature: -40-60 degrees Celsius
·Antenna power: 20±2dBm MCS7
·Maximum power consumption: 10mA@DC12V(0.12W)
Package list:
1x receiver+1x sender
2x 5DB Antennas
2x DC12V 1A power adapters
