Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
2294
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LQRQ
-
Model Number:
-
20ft 40ft
-
Color:
-
AS need
-
Material:
-
Corten Steel
-
Size:
-
20.40
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
40 Feet
-
External Dimensions(l x W x H)(mm):
-
2438
-
Internal Dimensions(l x W x H)(mm):
-
2294
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LQRQ
-
Model Number:
-
20ft 40ft
-
Color:
-
AS need
-
Material:
-
Corten Steel
-
Size:
-
20.40
Dear friend,welcome to Luqiang Enerfy Equipment CO.,LTD.we are manufacturer of steel storage tank,mobile fuel station,tank container and pressure vessel ,so we can design as you inquired.
|
product |
40 ft oil tank container |
|
Design pressure |
1 MPa |
|
Max pressure |
1.61Mpa |
|
Tank Dimension |
Φ 2350 x6x11750 (diameter*material thick* tank length) |
|
Whole Dimension |
12191*2438*2591mm |
|
Curb Weight |
20.20T |
|
Loading weight |
33.75T |
|
Tank Volume |
45 cubic meter |
|
Design temperature |
30 °C |
|
Tank material |
Q345B,carbon steel |
|
Corrupt thick |
1mm |
|
Water Testing |
2.22 Mpa |
|
Air Testing |
1.77 Mpa |
|
Standard |
International container design |
Product: ISO Tank Container:
(1) Capacity: 20.8m3;
(2) WP: 0.8/1.6/1.7/1.8/2.4MPA;
(3) Standard: GB150
(4) Certificate; ISO

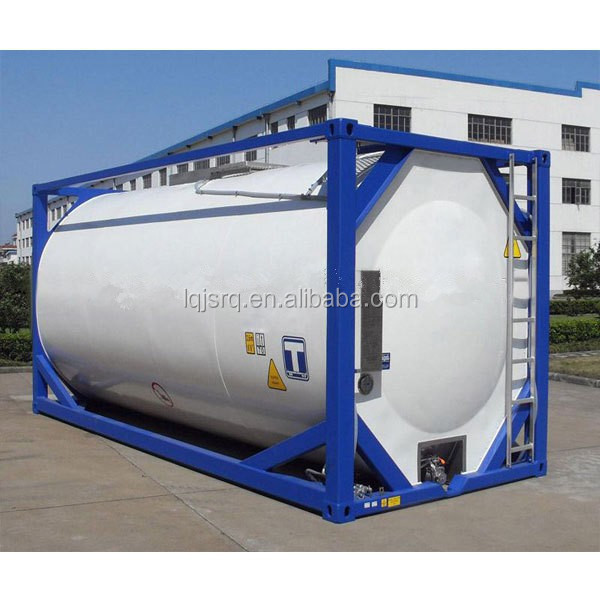

Introduction:ISO TANK CONTAINER
A tank container is built to the ISO Standard , making it suitable for different modes of transportation. Both hazardous and non-hazardous products can be transported in tank containers.
Technical Details-T75-ISO TANK CONTAINER:
(1) Model: ISO-T75 20M3-1.6MPA
(2) Capacity: 20m3;
(3) WP: 1.6MPA;
(4) Design Pressure: 2.11MPA;
( 5 ) Medium: Liquid Oxygen; Liquid Argon; Liquid Nitrogen; Liquid Natural Gas;
(6) Insulation: Multi-Layer super vacuum insulation;
(7) Dimension: 6058mm X 2438mm X 2591mm
(8) Max Loading Weight: 34000KGS;
(9) Testing: RT / Ultra / Impact / Penetration / Cleaning / Heat Treatment / Pressure / Mechanical / Helium / Painting
(10) Certificate: ISO
(1 1 ) Delivery Time: 60DAYS.
|
Packaging Details: |
as require |
|
Delivery Detail: |
after receive pay 1 week |
