Quick Details
-
Brand Name:
-
LONTA
-
Motor Power:
-
2.2Kw
-
Charging Capacity:
-
510L
-
Reclaiming capacity:
-
350L
-
Water Supply Mode:
-
MANUAL
-
Discharge Way:
-
MANUAL
-
Outline Dimension:
-
2300*1350*2750mm
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
1650 kg
-
Name:
-
Large Capacity Concrete Mixer
-
Drum thickness:
-
3-4mm
-
Engine Brand:
-
Chinese Brand (optional)
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Feature:
-
Independent Production
-
Color:
-
changable
-
Keywords:
-
Self Loading Concrete Mixer
-
Advantage:
-
Easy Operation
Quick Details
-
Mixing Power:
-
2.2KW
-
Productivity:
-
20M³/H
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LONTA
-
Motor Power:
-
2.2Kw
-
Charging Capacity:
-
510L
-
Reclaiming capacity:
-
350L
-
Water Supply Mode:
-
MANUAL
-
Discharge Way:
-
MANUAL
-
Outline Dimension:
-
2300*1350*2750mm
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
1650 kg
-
Name:
-
Large Capacity Concrete Mixer
-
Drum thickness:
-
3-4mm
-
Engine Brand:
-
Chinese Brand (optional)
-
Power type:
-
Diesel Engine Concrete Mixture Machine
-
Feature:
-
Independent Production
-
Color:
-
changable
-
Keywords:
-
Self Loading Concrete Mixer
-
Advantage:
-
Easy Operation
|
LONTA Can Provide You
|
|
|
|
|||
|
1.Budget Analysis
|
Budget Analysis Based On Local Market
|
|
|
|||
|
2.Custom Design
|
Logo/Color/Design Can Be Customized
|
|
|
|||
|
3.OEM&ODM
|
Supported
|
|
|
|||
|
4.Inspection
|
Raw materials & Products Inspection
|
|
|
|||
|
5.Delivery
|
20 Days Fast Delivery /
DDU For Africa
|
|
|
|||
|
6.Installation Guidence
|
Supported
|
|
|
|||
|
7.After-sale
|
1 Year Warranty
|
|
|
|||
Product details
JH510 concrete mixer（
Normal version
）
JH510 concrete mixer（
Heavy version
）
Three Engine >
Changwu Brand
16HP Diesel engine
（
normal version
）
Good Brand Changchai
16HP Diesel enigne
（
heavy version
）
Double cylinder India
Brand Diesel engine
|
Model
|
JH510
|
|
|
|||
|
Drum Volume
|
510
|
Mixing Capacity
|
350
|
|||
|
Concrete Output
|
20
|
Winch/Elevator
|
+
|
|||
|
Lifting Height
|
25
|
Wheel Size
|
205/75/R14
|
|||
|
Dimensions(L*W*H)
|
230*135*275
|
Weight
|
1650
|
|||
|
Engine option for the 510L
|
|
|
|
|||
|
Engine Brand
|
CHANGWU
|
CHANGCHAI
|
CHANGCHAI
|
|||
|
Engine Type
|
Single cylinder,Horizontal,evaporating water-cooler,4-stoke
|
Single cylinder,Horizontal,evaporating water-cooler,4-stoke
|
Forced air-cooled,direct injection,vertical
|
|||
|
Model
|
ZS1100M
|
ZS1100
|
192FS
|
|||
|
Nos of Cylinders
|
1
|
1
|
1
|
|||
|
Type of injection
|
Direct
|
Direct
|
Direct
|
|||
|
Bore(mm)
|
100
|
100
|
92
|
|||
|
Stroke(mm)
|
115
|
115
|
75
|
|||
|
Rated power(KW/HP)
|
@2200 12.13/16
|
@2200 12.1/16
|
@3600 8.2/11
|
|||
|
Fuel Consuinption
|
≤250
|
≤246.2
|
≤320
|
|||
|
Compression ratio
|
17.5:1
|
17.5:1
|
19:01
|
|||
|
Capacity of water tank
|
12
|
12
|
-
|
|||
|
Capacity of Fuel tank
|
12
|
12
|
-
|
|||
|
Staring system
|
Electric Staring
|
Electric Staring
|
Electric Staring
|
|||

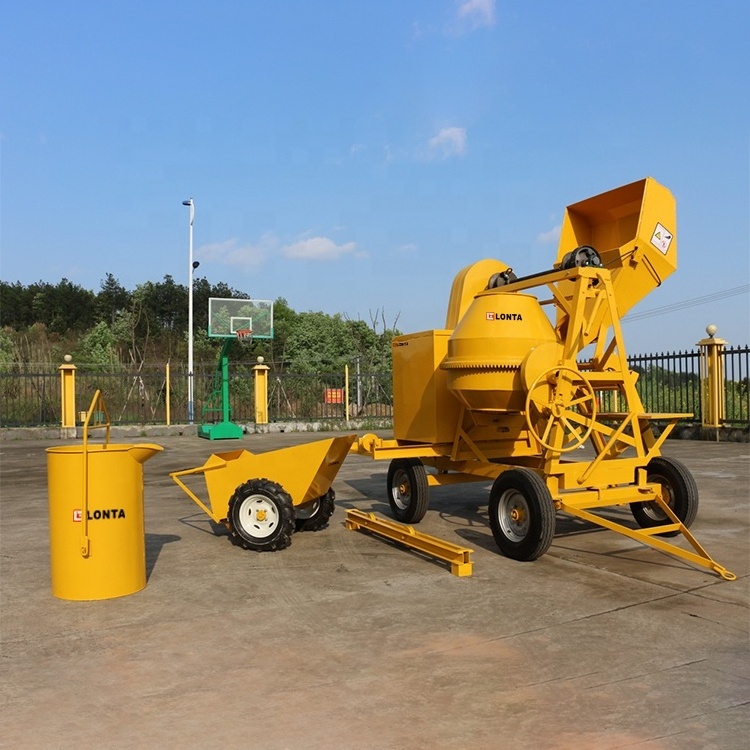

Product pictures
