Quick Details
-
Type:
-
Kids Flap/Swing Barrier Gate
-
Chassis material:
-
304 stainless steel
-
IR seonsors:
-
4 pairs
-
Swing arm length:
-
≤600mm(Can be customized according to customer requirements)
-
Rated power:
-
120W
-
Communication Interface:
-
RS485/IP/TCP
-
Working voltage:
-
AC220±10%V / 50±10%HZ
-
Driving motor:
-
brushless DC motor (24V)
-
Flap Opening/Closing Time:
-
0.2S
-
Passage Direction:
-
bi-drectional/uni-directional
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ant
-
Model Number:
-
Ant-tripod01
-
Type:
-
Kids Flap/Swing Barrier Gate
-
Chassis material:
-
304 stainless steel
-
IR seonsors:
-
4 pairs
-
Swing arm length:
-
≤600mm(Can be customized according to customer requirements)
-
Rated power:
-
120W
-
Communication Interface:
-
RS485/IP/TCP
-
Working voltage:
-
AC220±10%V / 50±10%HZ
-
Driving motor:
-
brushless DC motor (24V)
-
Flap Opening/Closing Time:
-
0.2S
-
Passage Direction:
-
bi-drectional/uni-directional
Product Description

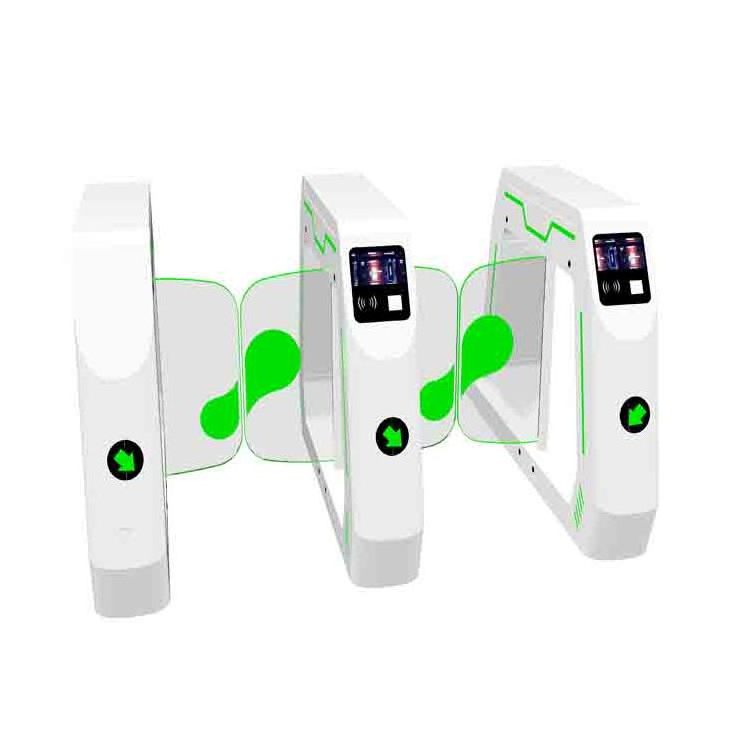

Kindergarten Swing Turnstile Barrier Gate for Kids Children Playground Park Pedestrian Gate School Access Control System
Kindergarten
Flap
Barrier gate is a mainly for students and teachers attendance management, swing arm shrinkage in the chassis, the appearance of luxury atmosphere, swing gate has voice and anti-collision functions, customers can choose according to requirements, voice swing gate is the swing gate movement and electronic control upgrade, movement heat treatment to improve the service life. Voice prompts enhance swing gate motherboard processing power.
Make swing gate synchronicity good. LCD screen operation, easy to use. Anti-collision swing gate has ordinary anti-collision swing gate and high-end anti-collision swing gate, ordinary anti-collision swing gate is the movement and swing arm link with mechanical flange, the use of spring pressure to customer friction, to achieve anti-collision, impact deviation after manual reset, improve the swing gate service life, not the swing arm will be bent, the movement is damaged, high-end anti-collision swing gate is a high-end product in the swing gate, with encoder and electromagnetic valve clutch, Encoder limit, solenoid valve clutch braking, after collision deflection, the external force eliminates the swing arm automatic reset, a high degree of intelligence, while with memory function, greatly improve the swing brake service life, the whole machine quality is stable, the price is favorable, easy to use, won the user's praise, swing brake anti-collision solution is not worried about the use of the product, is the majority of consumers trust.
◇ Swing brake with fault self-test and alarm prompt function, convenient user maintenance and use;
◇ The operating status of the device can be programmed through the built-in small press disk on the main control board; Voice
◇ Motherboard with LCD display, LCD display with Chinese display easy to operate.
Anti-clip, anti-collision anti-collision function, in the process of swing arm reset encountered resistance, in the specified
The motor automatically stops working within the time limit, and reset again after the default delay (until reset to Stop), and the strength is very small (≤2Kg);
◇ Anti-impact function, when no opening signal is received, the swing arm automatically locks;
◇ Swing arm synchronous adjustable (for double swing);
◇ With automatic reset function, after opening the gate, in the specified time is not passed, the system
The system will automatically cancel the user's permission to pass this time;
◇ Can be freely adjusted normally open or normally closed to meet the requirements of different sites;
Luxury Intelligent
swing
turnstile gate
can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff. Flap turnstile gate can be widely used in the station, wharf subway , factories, office building, hotel, clubs, intelligent community, enterprises and institution that need intelligent access management.
Specification
|
Place of Origin:
|
China
|
|
product Name:
|
Flap Turnstile
|
|
Brand Name:
|
Ant
|
|
Chassis material:
|
304 stainless steel
|
|
Case size:
|
length 1200 * width 300 * height 800 (mm) (can be customized)
|
|
Swing arm length:
|
≤600mm
|
|
Weight:
|
gross weight 35Kg
|
|
Swinging direction:
|
one-way or two-way
|
|
Working voltage:
|
AC220±10％V / 50±10％HZ
|
|
Driving motor:
|
brushless DC motor (24V)
|
|
Communication interface:
|
TCP/IP communication
|
|
Passing speed:
|
40 persons/minute (normally open), 25-30 persons/minute (normally closed)
|
|
Gate opening and closing time:
|
1-2 seconds
|
|
Time required to enter passing state after power on:
|
3 seconds
|
|
Automatic reset time after failure:
|
5 seconds
|
|
Temperature:
|
-15℃-60℃ Relative humidity: ≤90%
|
|
Application:
|
Parking lots for residential communities, enterprises, hotels, commercial buildings, government organizations, logistics
companies, hospitals, villages, shopping markets |
We have our own access control software, stable system, regular free update service, and attendance function.
