* Aluminum Housing with Opal Frosted and Clear Strip Diffuser for option
* Available in different sizes from 0.6 m /2ft to 1.8 m / 6ft and powers from 20 watt to 80 watt
* Cable self-mounted, plug-and-play connection, detachable end cap fit for self-wiring connection
* 100~110 lm/w , 130~140 lm/w
* IP65 waterproof, IK08, Mini size for special area .
* L80B50 (Ta = 25℃): 50,000 hrs
* 5 Years Warranty of the whole light
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Color Temperature(CCT):
-
3000-6500k, 3000-6000K(warm white, cool white, natural white) for choose
-
Model Number:
-
HNX-TM65
-
Input Voltage:
-
AC200-240V/100-277V
-
name:
-
led triproof light 80cm
-
Length option:
-
600mm/900mm/1200mm/1500mm/1800mm
-
Wattage optional:
-
20W 36W 40W 45W 48W 60W
-
Material:
-
Alumimum + PC Cover+inner aluminum pcb plate
-
Waterproof class:
-
IP 65 IK10
-
Beam angle:
-
120 Degree
-
Mounting Height:
-
1-5 meters
-
Power Factor:
-
0.95
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
135
-
Warranty(Year):
-
5-Year
-
Type:
-
Linear Low Bay Light
-
Application:
-
Warehouse
-
Color Temperature(CCT):
-
3000-6500k, 3000-6000K(warm white, cool white, natural white) for choose
-
Model Number:
-
HNX-TM65
-
Input Voltage:
-
AC200-240V/100-277V
-
name:
-
led triproof light 80cm
-
Length option:
-
600mm/900mm/1200mm/1500mm/1800mm
-
Wattage optional:
-
20W 36W 40W 45W 48W 60W
-
Material:
-
Alumimum + PC Cover+inner aluminum pcb plate
-
Waterproof class:
-
IP 65 IK10
-
Beam angle:
-
120 Degree
-
Mounting Height:
-
1-5 meters
-
Power Factor:
-
0.95
Products Description
Feature:

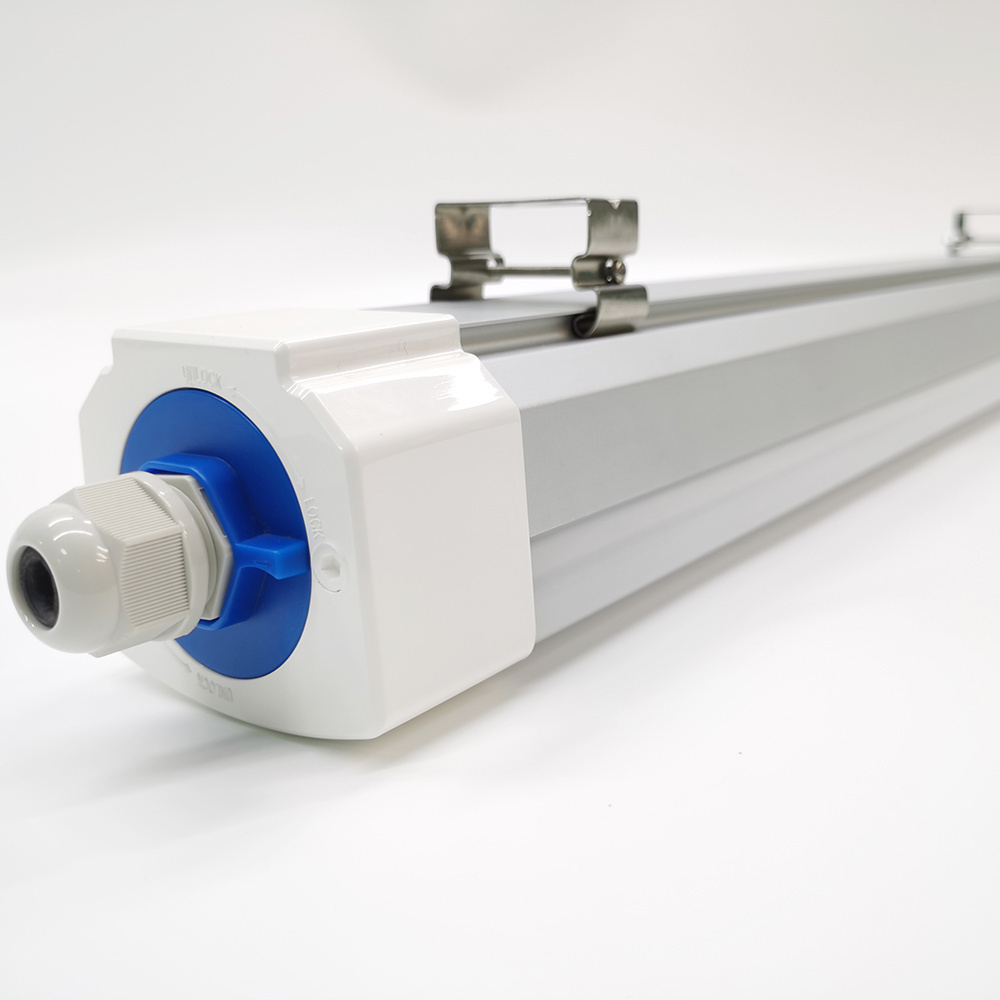

Details Images
IP65 IK08
1. Unique patent design, aluminum housing
2. waterproof, dust-proof, damp-proof
3. Surface mounted or suspend installation
2. waterproof, dust-proof, damp-proof
3. Surface mounted or suspend installation
Self-wiring
1. 3pin/5pin terminal block at ends
2. 100-110lm/w or 130-140lm/w
3. High efficiency, economic and practial
3. High efficiency, economic and practial
Tool-free linkable
1. Detachable end cap easy to fit for self-wiring connection
2. SDCM<4, Frosted cover
3. link up to 600w
3. link up to 600w
"D" shap Design
1. Long lifespan 50,000hrs
2. Impact package to decrease the freight cost
3. fit for 3-8m install height
3. fit for 3-8m install height
Installation Instructions
Hot Sale Specification:
|
Model No.
|
Length
|
Watt
|
color temparature
|
LM
(100-110lm/w)
|
|
HNX-TM65-20W2F
|
0.6m/2ft
|
20
|
2700-6500k
|
2100lm±5%
|
|
HNX-TM65-40W4F
|
1.2m/4ft
|
40
|
2700-6500k
|
4200lm±5%
|
|
HNX-TM65-60W5F
|
1.5m/5ft
|
60
|
2700-6500k
|
6300lm±5%
|
Application
