Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gamesail
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1760*2090*1970mm
-
Weight (KG):
-
550 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Anti-vibration Spring Patent No.:
-
200820056884.2
-
HS Code:
-
84502000,condom washing machine
-
Use:
-
Commercial use for washing service
-
Industry Used:
-
Condom manufacturer
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Spare parts
-
Certification1:
-
CE
-
Certification2:
-
RoHS
-
Certification3:
-
ISO9001, ISO14001
Quick Details
-
Cleaning Process:
-
Hot Water Cleaning
-
Cleaning Type:
-
Automatic&Manual
-
Material:
-
Textile
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Gamesail
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1760*2090*1970mm
-
Weight (KG):
-
550 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Anti-vibration Spring Patent No.:
-
200820056884.2
-
HS Code:
-
84502000,condom washing machine
-
Use:
-
Commercial use for washing service
-
Industry Used:
-
Condom manufacturer
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Spare parts
-
Certification1:
-
CE
-
Certification2:
-
RoHS
-
Certification3:
-
ISO9001, ISO14001
Advantage
. Descriptions: Professional industrial condom washing machine with high quality
ADVANTAGE
.
Patented anti-vibration structure spring,shock absorption reaches 95%(Patent no.200820056884.2).Real meaing of
free standing,No damege to machine while high spin.
. Japanese MIT V-belts, run smoothly.
. Korea LG&Japanese YASKAWA inverter .
. Frequency controlled motor and low noise .
. American TWB over sized bearings, ,safety and stable.
. French Schneider electric parts. safety and reliable.
. Stainless steel cabinet and drum.
. Imported Viton seal makes no leakage.
. Various automatic washing programs for different washing process,programs are avaliable for editing.USB port microprocessor enables to reprogram freely&easily by PC
. Easy access to all parts for maintenance,all the parts have high quality .
. Large drain valves,drain away water fast.Two drain pipes are available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg)
. Electric,steam heating&Hot water.
.Gamesail industrial washing machine,washer extractor,commercial washing machine is widely used by condom manufacturers,Hotel,Hospital,Campus Laundry and Dry Cleaning Shops,etc.. The drums are customized for the condom,the hole and material is special designed.
. Japanese MIT V-belts, run smoothly.
. Korea LG&Japanese YASKAWA inverter .
. Frequency controlled motor and low noise .
. American TWB over sized bearings, ,safety and stable.
. French Schneider electric parts. safety and reliable.
. Stainless steel cabinet and drum.
. Imported Viton seal makes no leakage.
. Various automatic washing programs for different washing process,programs are avaliable for editing.USB port microprocessor enables to reprogram freely&easily by PC
. Easy access to all parts for maintenance,all the parts have high quality .
. Large drain valves,drain away water fast.Two drain pipes are available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg)
. Electric,steam heating&Hot water.
.Gamesail industrial washing machine,washer extractor,commercial washing machine is widely used by condom manufacturers,Hotel,Hospital,Campus Laundry and Dry Cleaning Shops,etc.. The drums are customized for the condom,the hole and material is special designed.

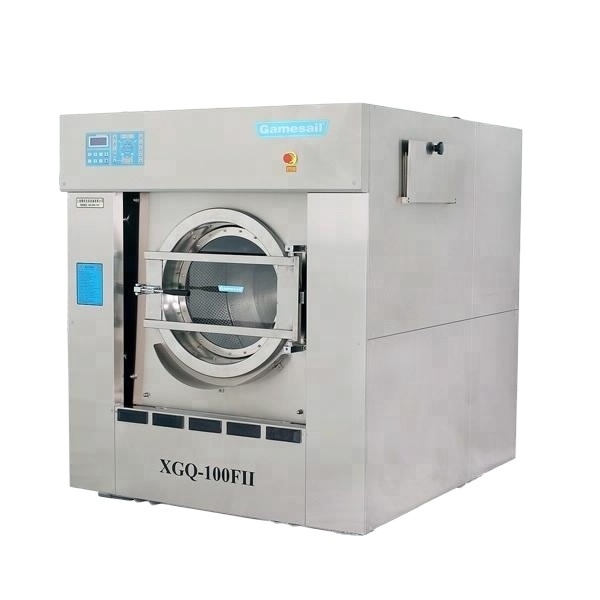

PRODUCT PICTURES
Product features
PRODUCT FEATURES
Parameter
| TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
| CAPACITY | |||||||||
| Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
| Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
| Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Loading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| DRUM SPEED | |||||||||
| Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
| Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
| G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
| HEATING | |||||||||
| Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
| Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| CONNECTIONS | |||||||||
| Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
| Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
| DIMENSIONS | |||||||||
| Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
| Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
| Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
