Quick Details
-
Product name:
-

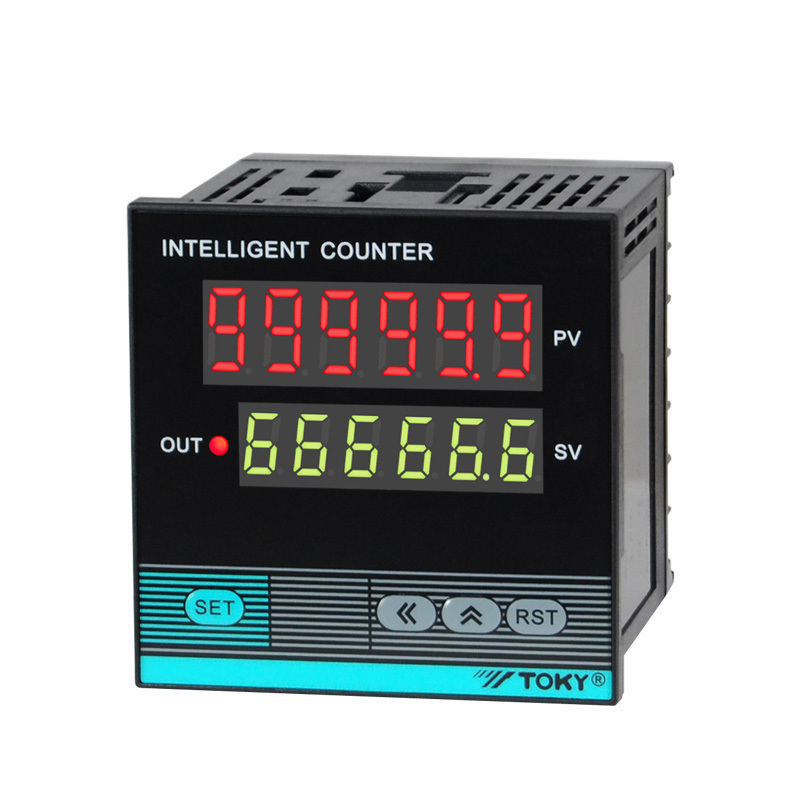

Digital Counter Meter
-
Power Supply:
-
AC 220V±10% 50Hz W:AC/DC 100~240V 50/60Hz
-
Consuption:
-
≤4W
-
Relay Contact Capacity:
-
AC 250V/3A
-
Counting Speed:
-
≤1/30/300/1000Hz(4 ranges to be chosen)
-
Counting Range:
-
0.001-999999
-
Delay Time:
-
0.01-600.00s
-
Coefficient Setting Range:
-
0.001-99.999
-
Display digits:
-
6 digits
-
Output mode:
-
Relay output
Quick Details
-
Brand Name:
-
TOKY
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
CA7-RB60W
-
Product name:
-
Digital Counter Meter
-
Power Supply:
-
AC 220V±10% 50Hz W:AC/DC 100~240V 50/60Hz
-
Consuption:
-
≤4W
-
Relay Contact Capacity:
-
AC 250V/3A
-
Counting Speed:
-
≤1/30/300/1000Hz(4 ranges to be chosen)
-
Counting Range:
-
0.001-999999
-
Delay Time:
-
0.01-600.00s
-
Coefficient Setting Range:
-
0.001-99.999
-
Display digits:
-
6 digits
-
Output mode:
-
Relay output
High accuracy Industrial Electrical Electromagnetic 6 Digit Meter Pulse Counter
Product Description
| Model | Power supply | Output mode | Display digits | Alarm output | Code |
| CA-RB60 | AC 220V | Relay output | 6 digits | 1 loop alarm | B0180CA01 |
| CA-RB60W | AC/DC 100~240V | B0210CA01 |
| Power Supply | AC 220V±10% 50Hz W:AC/DC 100~240V 50/60Hz |
| Consuption | ≤4W |
| Relay Contact Capacity | AC 250V/3A |
| Auxiliary Voltage | DC 18V±5V(≤25mA) |
| Input Impedance | Voltage input impedance 5.4KΩ, |
| Counting Speed | ≤1/30/300/1000Hz(4 ranges to be chosen) |
| Counting Range | 0.001-999999 |
| Delay Time | 0.01-600.00s |
| Coefficient Setting Range | 0.001-99.999 |
| External Signal | External reset frequency 2,10,100,500Hz selectable |
| Working Environment | -10~50(unfrozen) |
| Storage Environment | -25~65(unfrozen) |
| Dielectric Strength | 2000V AC 50/60Hz 1 min |
| Insulation Impedance | ≥100MΩ (at500VDC) |
| Anti-static strength | 3 class direct discharging 6kV air discharging 8kV |
| Anti-interference Capacity | 4 class each mode±4000VP-P |
| Lightning Surge | 3 class wire to wire±2000V |
| Frequency Drop | 3 class |
