Quick Details
Quick Details
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
aohong
Product Description

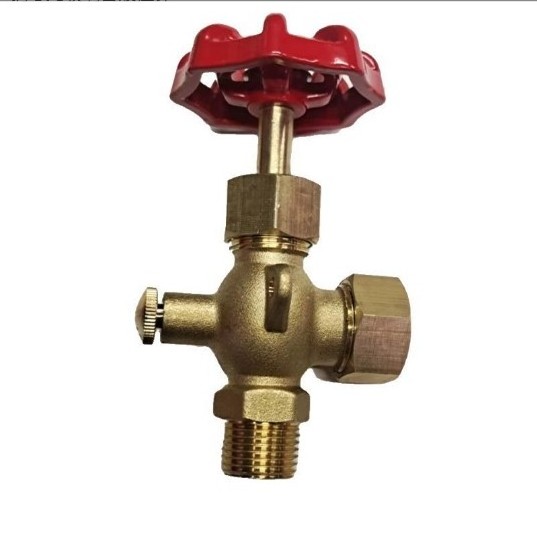

Water Liquid Level Gauge Cock for Tubular Level Gauge and Glass Plate Gauge
The gauge cock, also called sight glass valves, boiler sight glass valves, gauge glass valves and level gauge valve, can bedivided into three types according to the material.
* The brass gauge cock is widely used in water tanks and general industry.
* The carbon steel gauge cock is usually applied in filter and sterilization tank or depends on customers’ needs.
* And the stainless steel gauge cock is usually used in the fields of sanitary standard or in the acid or alkali environment.
The glass level gauge is equipped with steel balls in the upper and lower valves. When the glass plate is damaged due to anaccident, the steel ball will block the passage under the pressure in the container, so that the container is automatically sealed and the liquid in the container can be prevented from continuing to flow out.
* The brass gauge cock is widely used in water tanks and general industry.
* The carbon steel gauge cock is usually applied in filter and sterilization tank or depends on customers’ needs.
* And the stainless steel gauge cock is usually used in the fields of sanitary standard or in the acid or alkali environment.
The glass level gauge is equipped with steel balls in the upper and lower valves. When the glass plate is damaged due to anaccident, the steel ball will block the passage under the pressure in the container, so that the container is automatically sealed and the liquid in the container can be prevented from continuing to flow out.
Specification
|
item
|
value
|
|
Body Material
|
Brass, SS304, SS316
|
|
Tube
|
Glass Tube, Acrylic Tube
|
|
Max Center to Center Distance
|
2000 mm
|
|
Temperature
|
150 Degree
|
|
Size
|
Customized
|
|
Usage
|
Liquid Level Measuring
|
|
Feature
|
Self-Stop
|
|
Application
|
SMC Tank
|
|
Measuring Accuracy
|
+/-5mm
|
|
Package
|
Wooden Case
|
