Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
macEV
-
Model Number:
-
MV-L3
-
Product name:
-

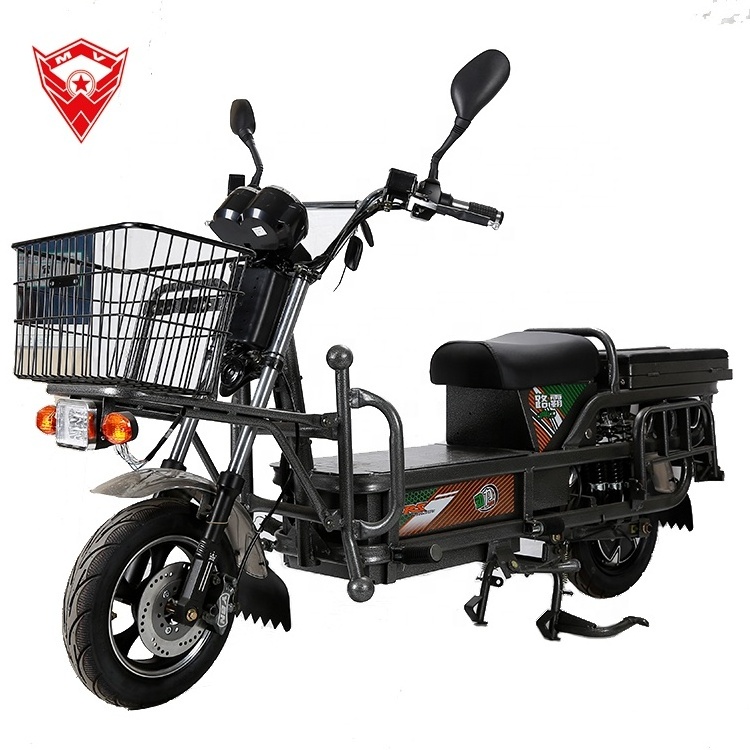

electric cargo bike
-
Color:
-
Optional
-
Tyre:
-
3.0*10inch vacuum tyre
-
Brake System:
-
F/R Disc brake
-
Battery capacity:
-
lead acid
-
Motor:
-
1000W Brushless Motor
-
Controller:
-
12 Tubes
-
Max load:
-
400kg
-
Packing:
-
Iron frame and carton
-
Certification:
-
ce
Quick Details
-
Foldable:
-
NO
-
Range Per Charge:
-
55km
-
Max Speed:
-
41-50km/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
macEV
-
Model Number:
-
MV-L3
-
Product name:
-
electric cargo bike
-
Color:
-
Optional
-
Tyre:
-
3.0*10inch vacuum tyre
-
Brake System:
-
F/R Disc brake
-
Battery capacity:
-
lead acid
-
Motor:
-
1000W Brushless Motor
-
Controller:
-
12 Tubes
-
Max load:
-
400kg
-
Packing:
-
Iron frame and carton
-
Certification:
-
ce
|
Motor |
10-inch 60V20Ah 1000w electric motor |
|
Controllers |
12 tubes |
|
Battery |
60V 20Ah lead-acid |
|
Standard SLA Charger |
Outboard, 60 V 3A Automatic Charger, 220VAC input ~7.5-hour charge time |
|
12V Subsystem Converter |
DC/DC 72V<12V 10A (powers all lighting and accessory outlet) |
|
12V Outlet |
standard automotive lighter socket |
|
USB Charging Port |
Yes |
|
Mechanical Brakes |
front and rear hydraulic disk brakes, regenerative, acting on rear wheel (via hub motor), triggered by front or rear brake actuation |
|
Front Suspension |
With hydraulic hose front damping |
|
Rear Suspension |
2 spring shock absorption |
|
Front Wheel |
2. 1 5×1 0 ” Aluminum wheel |
|
Front Tire |
3.0-10 vacuum tire |
|
Rear Wheel |
2. 1 5×1 0 ” steel rim with integral motor, alloy side plates |
|
Rear Tire |
3.0-10 vacuum tire |
|
Frame |
Motorcycle-grade high-hardness iron frame |
|
Instruments |
LCD Speedometer/Odometer, Volt Gauge, Turn Signal/High Beam Indicators |
|
Safety Equipment |
1. Double rear-view mirror, 2. High / low beam automotive grade dual LED headlamps, front and rear turn signal, rear position lamp / rear position lamp |
|
Range |
55km per charge |
|
Top Speed |
45km/h |
|
Weight (Without Battery Pack) |
75 kg |
|
Package Size |
1890*565*860mm |
|
Maximum Payload Capacity, Including Rider(s) |
40 0kg |
|
Vacuum tire Thick and thick vacuum tire, using multi-layer thickening technology, puncture resistance, puncture resistance, explosion-proof, anti-grinding, exquisite technology. |
|
Large plate double DISC brake Anti-aging, anti-oxidation, not easy to rust, good cooling effect, braking performance safety. |
|
|
Highlight lens headlamp The highlighter lens headlamp has a long range, is dazzlingly bright, is very cool, is even more dazzlingly cool, is safer. |
Jiangsu , China, established in 2010. Myway has always been committed to meet and exceed customer requirements, providing electric motorcycle, electric bike and heavy load transportation tools of best quality for global customers. Myway has three manufacturing bases (Tianjin, Wuxi, and Xuzhou) , six production plants and one R&D center in China, with more than 500 staffs and 30,000 units monthly production capacity.
Mac International Co, Ltd.
Mac International Co., Ltd. is a wholly owned subsidiary of Wuxi Myway Electric Motorcycle Co., Ltd., focusing on providing high-quality products and excellent services for Chinese electric transportation product. The product series include electric motorcycle, electric bicycle, tri-wheels bike and Lithium battery motorcycle and bike, etc. The product brand is MacEV and we can accept your brand logo designed as per client requirement. more >>
All of our e bikes and e scooters ,E-motorcycles are guaranteed and backed by our technical assistance and considerate service.
A. The frame 1 years
B. Battery, charger, motor 10 months
C. Controller 1 year
D. Other Spare parts also can be replaced once confirmed that it was broken because of quality.
Not including painted parts.
E. 1% Spare parts offered free if order 40HQ*1 .
The warranty is only valid when you buy our electric scooters. Whereas, it is not valid for abnormal wear, misuse or neglect, improperly operation, damage or failure due to accident, parts or accessories not originally intended or compatible.
We Are The Professional Electric Bicycle and scooter, motorcycle Manufacturer In China, Has Engaged In E bike Field For Over 10 Years. Previously we focused on China Domestic market and did good performance by good products and competitive price, and now we have the confidence on better performance for overseas market by our more hard work.
PS. OEM Orders are also acceptable, subject to your quantity and detail Requirement.
Q1. How can I get a sample for reference ?
A1. Yes, we send samples for testing
Q2. Can you give me some discount ?
A2. Yes, more quantity lower price
Q3. Can I do our logo or brand on electric Motorcycle?
A3. Yes, we accept OEM,we also can change configuration,color according to your requirement,but you need to pay extra charges.
Q4. What’s the delivery time?
A4. For sample order,if we have stock,the delivery time is about one week.For other order,as usual,15 days after payment.
Q5. Can I mix different models in one container?
A5.Yes,different models can be mixed in one container,but the quantity of each model should not be less than MOQ.
Q6. What's your warranty terms?
A6. We offer different warranty time for different accessories.Main parts for one year.
