Quick Details
-
Brand Name:
-
USource
-
Fiber Type:
-
Single Mode
-
Connector Type:
-
LC/UPC
-
Wavelength for 8CH:
-
1470-1610nm
-
1310 wide band:
-
1260-1457nm
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
CWDM MUX with 1310 wide band
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
USource
-
Fiber Type:
-
Single Mode
-
Connector Type:
-
LC/UPC
-
Wavelength for 8CH:
-
1470-1610nm
-
1310 wide band:
-
1260-1457nm
- Reliability testing: 85°C 10 hours, 110°C 10 hours, -40 °C to 85°C Temperature Cycle 24 hours.
- Optical Spectrum testing (wavelength, insertion loss, isolation, etc).
- 3 years warranty for free, life-time maintenance.
- 10 years OEM/ODM experience (Customized services of designing, specifications and packaging).
- Professional technical team help you design whole networking solutions for for free.
Fiber optical multiplexer telecom mux demux cdwm splitter passive module with 1310 wide band isolation 30dB

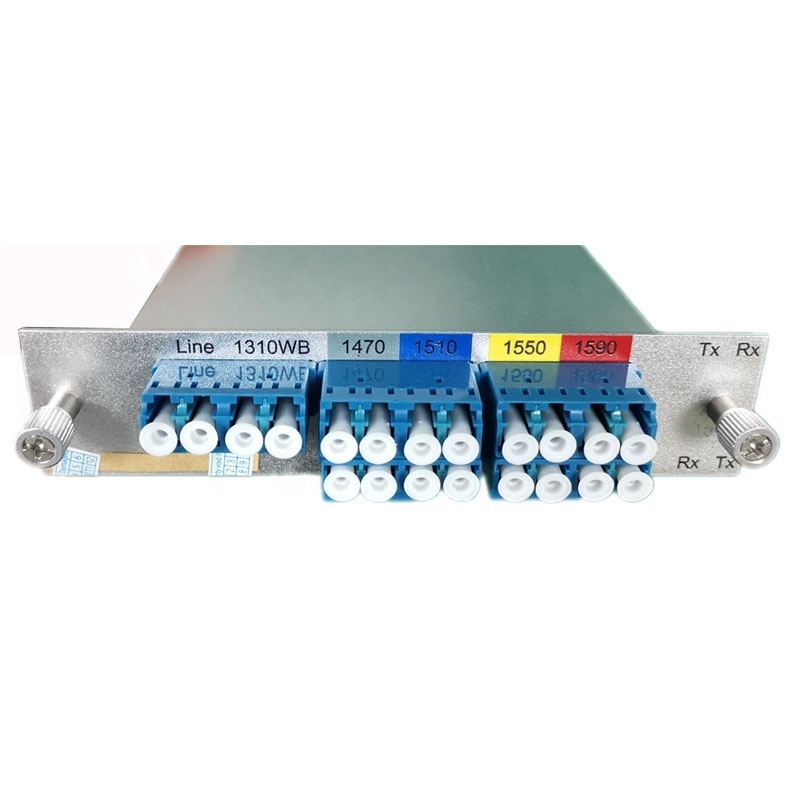

This CWDM module has very high performance for 1310 weide band with high isolation 30dB. It conists of mux and demux in one LGX metal box.
|
Parameter |
UCW-xxx |
|
Operating wavelength |
1260~1620 nm |
|
Channel number |
8 CH |
|
Channel central wavelength |
1470-1610nm |
|
1310 wide band |
1260-1457nm |
|
Insertion Loss |
< 3.0dB |
|
Isolation (Adjacent) |
> 30dB |
|
Isolation (Non-adjacent) |
> 40dB |
|
PDL |
< 0.2dB |
|
Pass band ripple |
< 0.5dB |
|
Return Loss |
|
|
Directivity |
> 50dB |
|
Operating temperature range |
-45 to 85 º C |
|
Storage temperature range |
-40 to 85 º C |
|
LGX single slot wide module dimension |
129 *150*29mm |
|
Fiber type |
SMF-28e G.657 A1 |
|
Maximum power handling |
300mW |
|
Connector/Adapter type for all ports |
LC/PC |
