Quick Details
-
Diameter:
-
16-20 Inch
-
Car Make:
-
Trailer/Truck
-
Rim Material:
-
12lw
-
Disc Material:
-
Q235b
-
Ring Material:
-
Q345
-
Bolt Type:
-
E
-
C.B.D (mm ):
-
133
-
Offset ( mm ):
-
25
-
Max Load ( kg ):
-
1380
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WONDEE
-
Model Number:
-
5.5-16, 5.50F-16
-
Diameter:
-
16-20 Inch
-
Car Make:
-
Trailer/Truck
-
Rim Material:
-
12lw
-
Disc Material:
-
Q235b
-
Ring Material:
-
Q345
-
Bolt Type:
-
E
-
C.B.D (mm ):
-
133
-
Offset ( mm ):
-
25
-
Max Load ( kg ):
-
1380
Offsets Truck Wheels Rims Information :
WONDEE AUTOPARTS Wheel Rim Factory can supply more than 100 sizes auto wheel rims.
1.Tube wheel sizes are from 5.5-15 to 8.5-24. ----HOT SALE
2.Tubeless wheel rim sizes are from 6.0x17.5 to 11.75 x 22.5
3. Aluminum Alloy Wheel Rim sizes are from 22.5*8.25 to 17.5*6.75
4. Car Steel Wheel Rim sizes from 4J X 13 to 16 x 5.5K
5. Engineering Machinery Wheel Rim from 34-16.00/1.5(5 pcs) to 24-10.00/2.0(3 pcs)
6. Wheel rim parts supply: rim, demountable rim, lock ring, disc.
Offsets Truck Wheels Rims Dimension :
|
5.50F-16 |
|||||||||
|
ITEM NO. |
SIZE |
BOLT |
PCD |
CBD |
Offset |
Max Load |
Tire |
||
|
No. |
Dia |
Type |
(mm) |
(mm) |
(mm) |
(kg) |
|||
|
WRS550160-101 |
5.50F-16 |
5 |
29 |
A |
203.2 |
146 |
115 |
1380 |
7.00- 16
|
|
WRS550160-103 |
5.50F-16 |
6 |
17.5 |
E |
170 |
133 |
25 |
1380 |
|
|
WRS550160-116 |
5.50F-16 |
5 |
32.5 |
SR22 |
203.2 |
135 |
135 |
1380 |
|
Tube Wheel Rim Composed of:
Wheel Rim Production Line:

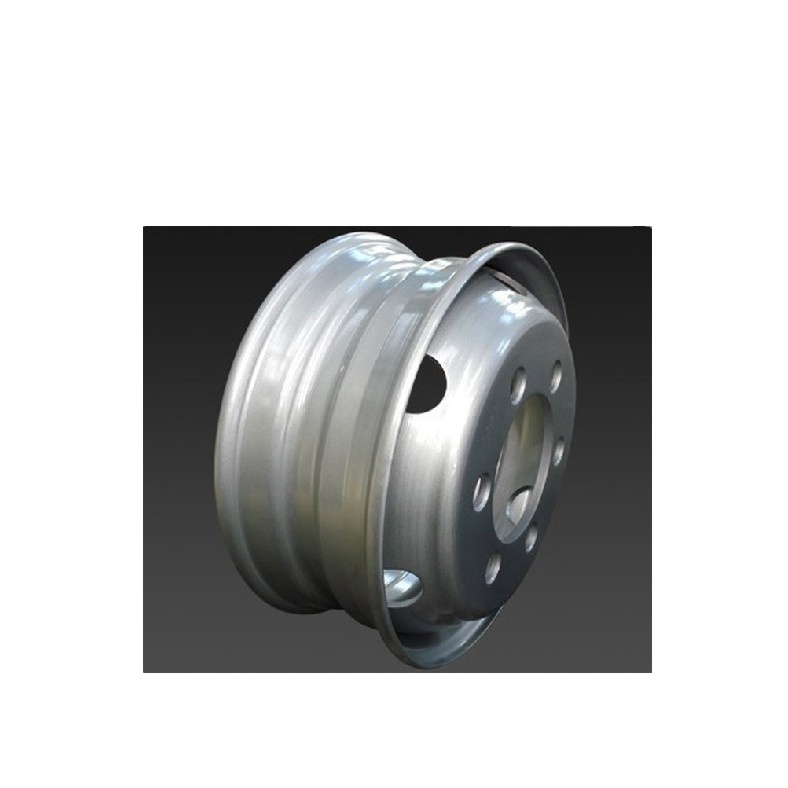

Wheel Rim Detail Photos:
WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying
a wide variety of trailers,semi-trailers,trucks and their chassis componentssince 1999.From
2009,WONDEE has expanded the business to special steel,agricultural machinery parts &
wheel rim production line.
In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are
certified to the ISO/TS16949 international system.
