Quick Details
-
Size:
-
80mm-100mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNHONGXIANG
-
Model Number:
-
HX-W03
-
Viscosity:
-
100%
-
Product name:
-
resin bonded grinding wheel
-
Process:
-
hot press
-
Usage:
-
carbide and hss
-
MOQ:
-
1PCS
-
Material:
-
Diamond
-
Bond:
-
resin bond
-
Type:
-
1a1 type
-
Advantage:
-
Long Lifespan
-
DELIVERY TIME:
-
7-15Days
Quick Details
-
Application:
-
nonferrous metals
-
Shape:
-
Flat-Shaped
-
Hardness:
-
harder
-
Size:
-
80mm-100mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNHONGXIANG
-
Model Number:
-
HX-W03
-
Viscosity:
-
100%
-
Product name:
-
resin bonded grinding wheel
-
Process:
-
hot press
-
Usage:
-
carbide and hss
-
MOQ:
-
1PCS
-
Material:
-
Diamond
-
Bond:
-
resin bond
-
Type:
-
1a1 type
-
Advantage:
-
Long Lifespan
-
DELIVERY TIME:
-
7-15Days
Products Description
|
Type:
|

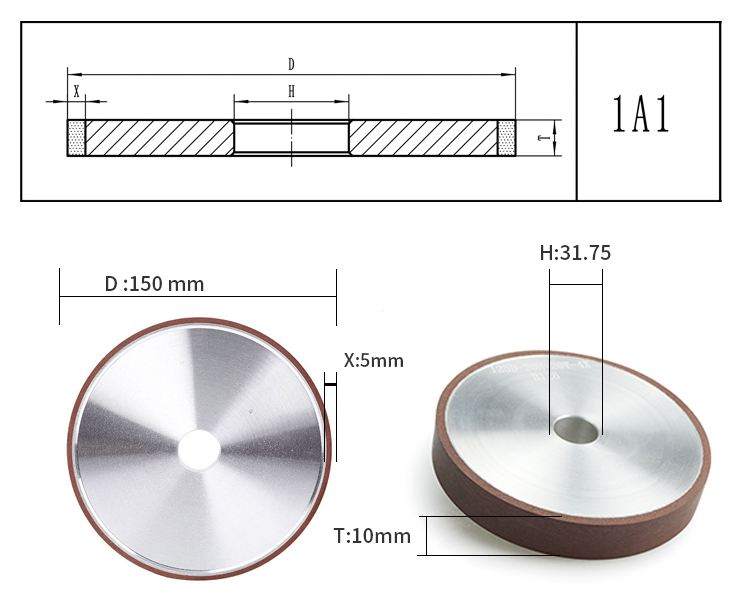

1A1 Flat resin bond diamond grinding wheel
|
|
Concentration:
|
50%,75%,125%,150%
|
|
Mesh
|
46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
|

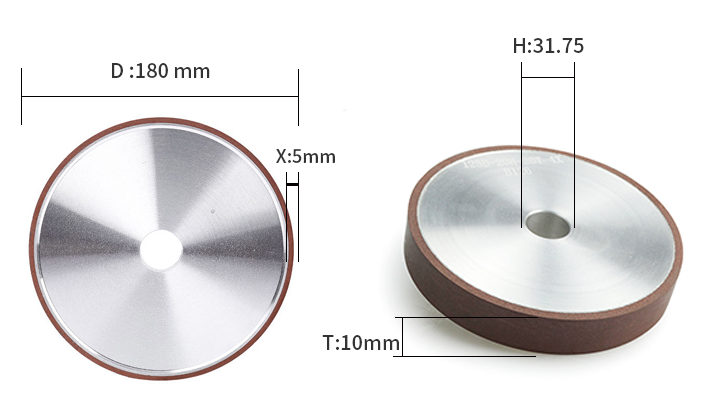

Specification:
|
D75-H10-T5-X10 D150-H19-X5-T5
D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
|
Application:
|
hard alloy,high alumina porcelain,optical glass
agate gemstone, semiconductor material,ceramics,stone,etc
|
Our Advantages
Product Usage
The flat resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide
Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
Products Show
In order to send you accurate product quotations and help you save order communication time, please provide the following products related information when sending inquiries:
1.Size; ( D/H/T/X; mm/inch)
2.Grit;
3.Concentration;
4.Usage;
5.Quantity; (Sample order and normal order)
6.Matched series; ( 4A2/6A2/12V9/14A1, etc)
