Quick Details
-
Brand Name:
-
Tonhe
-
Name:
-
DN50 Wireless remote valve
-
Valve size:
-
2" (1-1/4" 1-1/2" optional)
-
Body material:
-
SS304
-
Rated voltage:
-
DC12V Power adaptor
-
communications frequency:
-
433M, 315MHz
-
Remote control distance:
-
100 meters
-
Working current:
-
≤500mA
-
Open/close time:
-
≤5S
-
Life time:
-
70000 times
-
Sealing material:
-
FKM & PTFE
Quick Details
-
Port Size:
-
2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A20-R50-S2-B
-
Brand Name:
-
Tonhe
-
Name:
-
DN50 Wireless remote valve
-
Valve size:
-
2" (1-1/4" 1-1/2" optional)
-
Body material:
-
SS304
-
Rated voltage:
-
DC12V Power adaptor
-
communications frequency:
-
433M, 315MHz
-
Remote control distance:
-
100 meters
-
Working current:
-
≤500mA
-
Open/close time:
-
≤5S
-
Life time:
-
70000 times
-
Sealing material:
-
FKM & PTFE

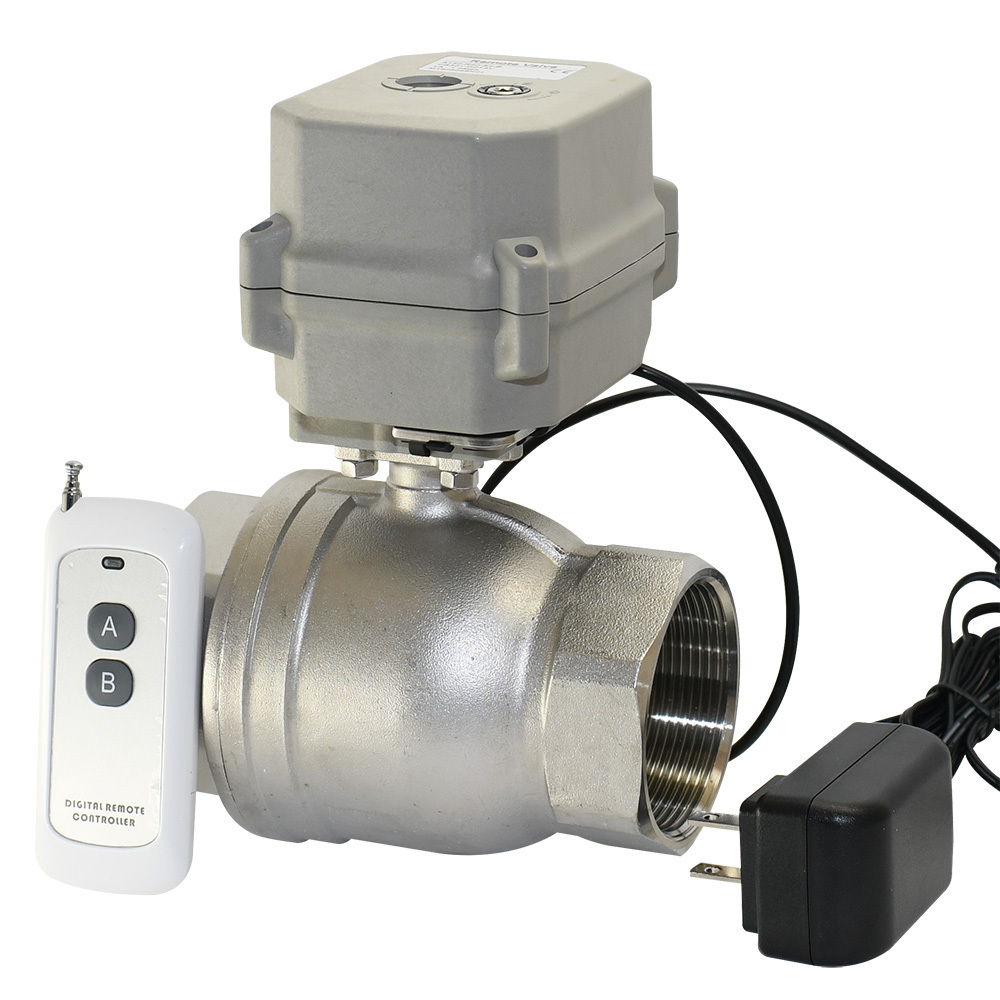

2"in Wireless remote motorized Valve 2 way DN50 radio frequency electric shut off ball valve
Pls confirm the two details when you order them.
| No. | Item | Need to be confirmed |
| 1 | Valve size |
1-1/4", 1-1/2" or 2"
|
| 2 | valve thread |
BSP or NPT
|
Product Features
Work for DN32-DN50 (1-1/4’’-2’’) 2 way motorized ball valve in brass and stainless steel 304 .
Wireless control, communications frequency 433M, 315MHz (optional), communication distance 100 Meter .
Small size,suitable for small equipment.
Stainless steel and copper gear design, working life of 7 0000 times.
Protection class IP67
|
Valve size |
NPT/BSP 1-1/4", 1-1/2" or 2 ” ( Optional ) |
|
Maximum working pressure |
1. 0 MPa |
|
Circulation medium |
Fluid, air |
|
Rated voltage |
DC12V |
|
Wiring diagram |
C R301 |
|
Working current |
≤1 A |
|
Open/close time |
≤5S |
|
Life time |
10 0000 times |
|
Valve Body material |
SS304 |
|
Actuator material |
Engineering Plastics |
|
S ealing material |
FKM & PTFE |
|
Actuator rotation |
90° |
|
Max. torque force |
15N .m |
|
Cable Length |
0.5m |
|
Environment temperature |
-15℃~ 6 0℃ |
|
Liquid temperature |
2℃~ 90℃ |
|
Manual override |
YES |
|
Indicator |
YES |
|
Protection class |
IP6 7 |
|
Certificate |
LVD, EMC,ROHS |
|
Company passed |
ISO 9001:2015 |
|
Actuator color |
Grey |
