Quick Details
-
Brand Name:
-
ZIDONG PUMP
-
Model Number:
-
ZH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
200hp
-
Cable Length:
-
no
-
Outlet Size:
-
1-24inch
-
Power:
-
no
-
certificate:
-
ISO&CE
-
pump casing:
-
double
-
Usage:
-
pumping slurry Liquid etc.
-
Fuel:
-
electric
Quick Details
-
Application:
-
Machining, Mining industry, Washing and Cleaning
-
Pressure:
-
6bar
-
Voltage:
-
no
-
Brand Name:
-
ZIDONG PUMP
-
Model Number:
-
ZH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
200hp
-
Cable Length:
-
no
-
Outlet Size:
-
1-24inch
-
Power:
-
no
-
certificate:
-
ISO&CE
-
pump casing:
-
double
-
Usage:
-
pumping slurry Liquid etc.
-
Fuel:
-
electric

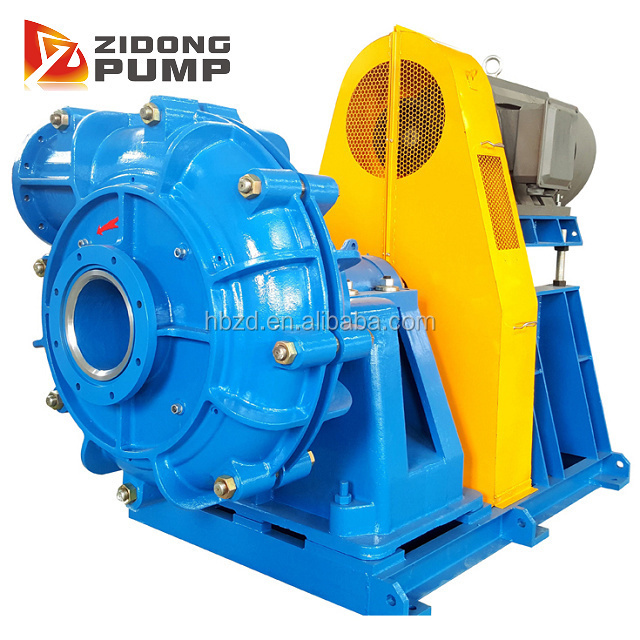

♦ The ZH metal liner slurry pump is a single-stage, single-suction and horizontal heavy duty centrifugal
slurry pump with a cantilever design.
♦ Parts in contacting with the medium are made of latest wear-resistance 27% chrome alloy white iron with
hardness 62HRC over, which has an excellent feature for maximum resistance to strong abrasive, coarse
particle.
♦ Designed for continuous conveying highly abrasive and high-hardness,high - concentration,low-corrosion
slurries contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud,
mineral stones in the tailing mining,minerals recycling ,coal washing, industries of metallurgy, pulp and
paper manufacture , power plant, building material,&chemical engineering, sand dredging ect.
|
MODEL |
MAX
(KW) |
ZH SERIES CLEAR WATER PERFORMANCE | ||||
| CAPACITY | HEAD | SPEED |
MAX.Eff
η% |
NPSH | ||
| (m 3 /h) | H(m) | n(r/min) | (m) | |||
| ZH-1.5×1B | 15 | 12.6~28.8 | 6~68 | 1200~3800 | 40 | 2~4 |
| ZH-2×1.5B | 15 | 32.4~72 | 6~58 | 1200~3200 | 45 | 3.5~8 |
| ZH-3×2C | 30 | 39.6~86.4 | 12~64 | 1300~2700 | 55 | 4~6 |
| ZH-4×3C | 30 | 86.4~198 | 9~52 | 1000~2200 | 71 | 4~6 |
| ZH-4×3D | 60 | |||||
| ZH-6×4D | 60 | 162~360 | 12~56 | 800~1550 | 65 | 5~8 |
| ZH- 6×4E | 120 | |||||
| ZH- 8×6E | 120 | 360~828 | 10~61 | 500~1140 | 72 | 2~9 |
| ZH-10×8ST | 560 | 612~1368 | 11~61 | 400~850 | 71 | 4~10 |
| ZH-12×10ST | 560 | 936~1980 | 7~68 | 300~800 | 82 | 6 |
| ZH- 14×12ST | 560 | 1260~2772 | 13~63 | 300~600 | 77 | 3~10 |
| ZH- 16×14ST | 560 | 1368~3060 | 11~63 | 250~550 | 79 | 4~10 |
| ZH- 16×14TU | 1200 | |||||
| ZH- 18×16ST | 560 | 2160~5040 | 8~66 | 200~500 | 80 | 4.5~9 |
| ZH- 18×16TU | 1200 | |||||
| ZH- 20×18TU | 1200 | 2520~5400 | 13~57 | 200~400 | 85 | 5~10 |
The ZH series centrifugal horizontal slurry Pump is the pump for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc
|
• Mining • Mineral processing • Construction • Chemical and Fertilization • Power generation |
• Phosphate matrix fertilization • Pulp and paper • Waste sludge • Paper mill wastes and liquors • Precipitated CaCO3 |
• Plaster • Bottom/fly ash, lime grinding • Dirty water • Pulp and paper • Oil and gas |
|
• Waste water treatment • Ball mill discharge • Rod mill discharge • SAG mill discharge • Fine tailing |
• Flotation • Heavy media process • Minerals concentrate • Mineral sands • Coal-washing plant |
• Coarse sand • Coarse tailing • Dredging • FGD • Wet crushers applications |
|
• Wet scrubber systems • Process chemical • Iron and Steel • Ni acid slurry • Fracking slurries |
• Clay and sand slurries • Kaolin clay • Carbon slurry • Lime mud • Oil sands |
• Phosphoric acid |
