Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
GN30-12
-
Rated current (A):
-
400A,630A,1000A,1250A,1600-3150A
-
Rated voltage (kV):
-
12
-
Model:
-
Rotary Indoor High-Voltage Isolating Switch
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
400A,630A,1000A,1250A,1600-3150A
-
Rated Voltage:
-
12000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNC
-
Model Number:
-
GN30-12
-
Rated current (A):
-
400A,630A,1000A,1250A,1600-3150A
-
Rated voltage (kV):
-
12
-
Model:
-
Rotary Indoor High-Voltage Isolating Switch
Product Category
Product Description
Lowest Indoor High 12kv Rotary Ac Disconnect Isolator Price Isolating Switch
GN30-12 (D) type rotary indoor high-voltage isolating switch is a new type isolation switch of rotary knife type, the main structure is fixed two groups of insulator and contact on the two plane of
Product Detail
| Rated current (A) | 400A,630A,1000A,1250A,1600-3150A |
| Rated voltage (kV) | 12 |
| Model | Rotary Indoor High-Voltage Isolating Switch |
| Product Keywords | indoor high switch 12kv,rotary disconnect switch,ac disconnect isolator switch price |
Main application

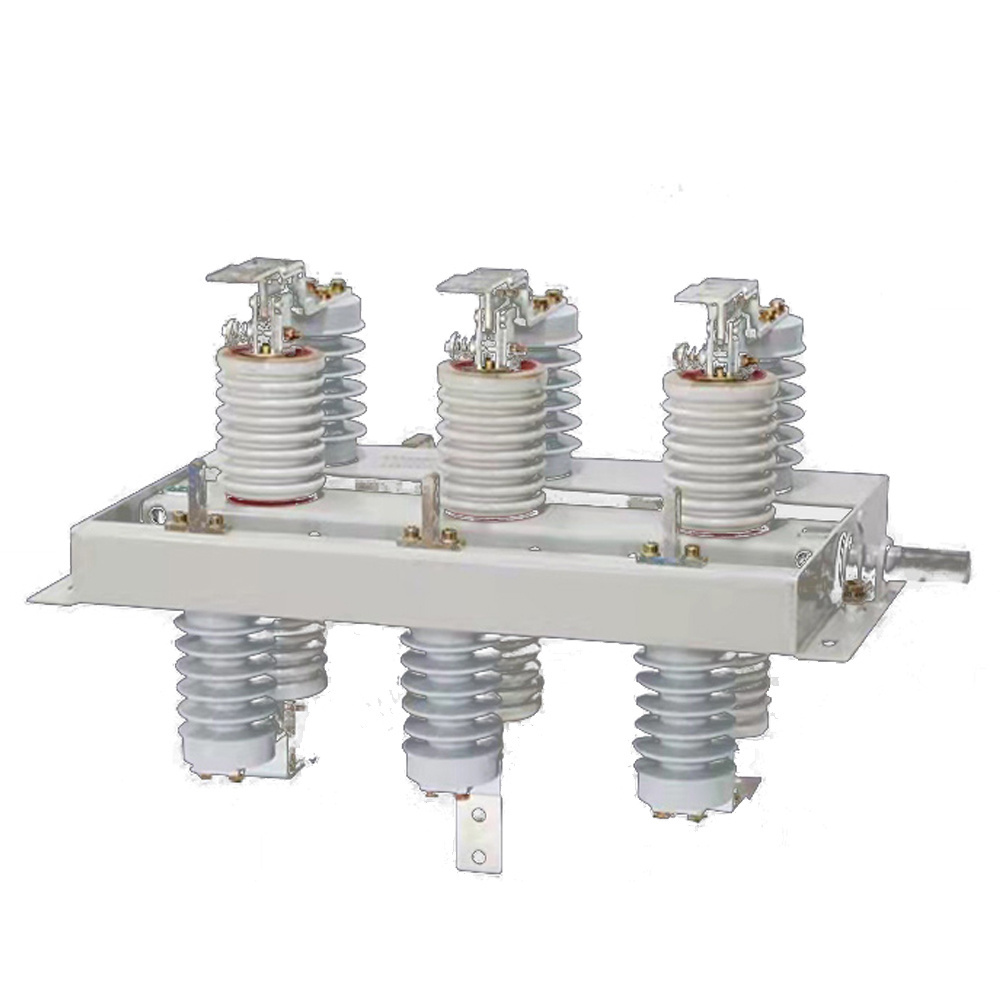

GN30-12 (D) type rotary indoor high-voltage isolating switch is a new type isolation
switch of rotary knife type, the main structure is fixed two groups of insulator and
contact on the two plane of three-phase chassis, through the rotary contact, realize
the switch on-off.
GN30-12 (D) type switch is a new type added grounding knife on the GN30-12 type
switch basis, which can meet the needs of different power systems. The product
design is with compact, small occupied space, strong insulating ability, easy
installation and adjustment, its performance meets the GB1985-89 "AC high voltage
isolating switch and the grounding switch" requirements, applicable to the rated
voltage 10kV AC 50Hz and below indoor power system, to open and close the circuit
when voltaged, no load. It can be used with the high voltage switch cabinet, and also
can be used separately.
