Quick Details
-
Brand Name:
-
MOVMES
-
Product Name:
-
Movmes
-
Load capacity:
-
1500kg
-
Wheels,number front/rear:
-
2/1x
-
Max. lifting height:
-
2500-6000mm
-
Fork dimension:
-
40/120/1070mm
-
Ground clearance:
-
70mm
-
Max.gradeability, laden/inladen:
-
6/10%
-
Turnning radius:
-
1226/1550mm
-
Overall length:
-
2346/2790
-
Height ,mast lowered:
-
1990mm
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
1730
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOVMES
-
Product Name:
-
Movmes
-
Load capacity:
-
1500kg
-
Wheels,number front/rear:
-
2/1x
-
Max. lifting height:
-
2500-6000mm
-
Fork dimension:
-
40/120/1070mm
-
Ground clearance:
-
70mm
-
Max.gradeability, laden/inladen:
-
6/10%
-
Turnning radius:
-
1226/1550mm
-
Overall length:
-
2346/2790
-
Height ,mast lowered:
-
1990mm

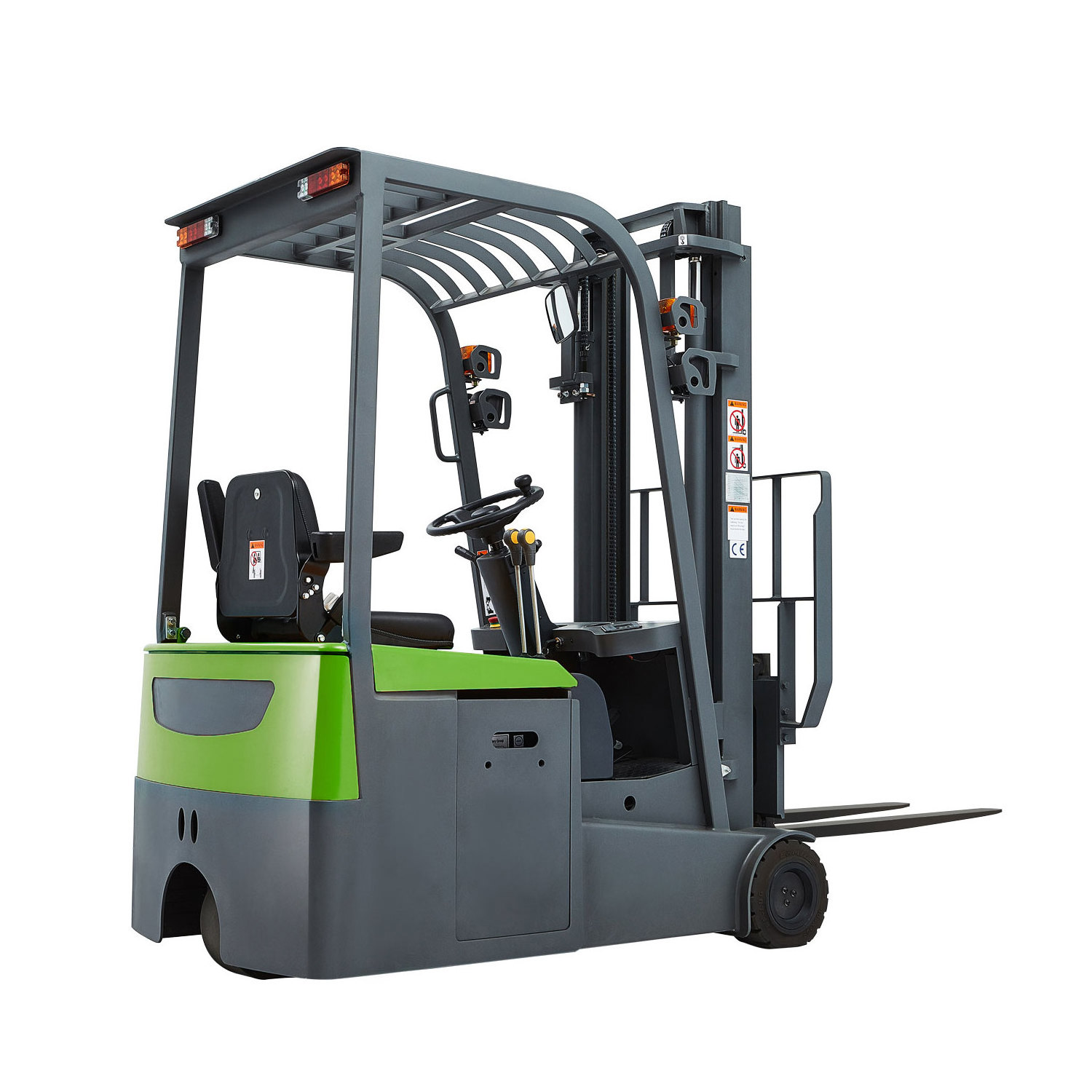

Products Description
|
Manufacturer's Type Designition
|
|
CPD15S-E
|
|
Drive type
|
|
Electric
|
|
Operator type
|
|
Seated
|
|
Rated capacity/rated load
|
Q(kg)
|
1500
|
|
Load center distance
|
C(mm)
|
500
|
|
Load distance , center of drive axle to fork
|
x(mm)
|
170
|
|
Wheelbase
|
y(mm)
|
1348
|
|
Service weight
|
kg
|
2500
|
|
Axle loading,laden front/rear
|
kg
|
3280/810
|
|
Alex loading,unladen front/rear
|
kg
|
975/1625
|
|
Tyres:solid rubber, superelastic, pneumatic, polyurethane
|
|
Solid rubber
|
|
Tyre size ,front
|
mm
|
φ305x145
|
|
Tyre size,rear
|
mm
|
φ285x150
|
|
Wheels ,number front/rear(X=drive wheel)
|
|
2+1x
|
|
Tread ,front
|
b10(mm)
|
912
|
|
Tread ,rear
|
b11(mm)
|
0
|
|
Tilt of mast/fork carriage forward/backward
|
a/b(°)
|
2/5
|
|
Height,mast lowered
|
h1(mm)
|
1980(3m)
|
|
Free lift
|
h2(mm)
|
Option
|
|
Lift
|
h3(mm)
|
2500-6000
|
|
Height,mast extended
|
h4(mm)
|
3500
|
|
Height of overhead guard(cabin)
|
h6(mm)
|
1980
|
|
Seat height relating to SIP/stand height
|
h7(mm)
|
885
|
|
Overall length
|
l1(mm)
|
2790(1070)
|
|
Length to face of forks
|
l2(mm)
|
1720
|
|
Overall width
|
b1/b2(mm)
|
1050
|
|
Fork dimensions
|
s/e/l(mm)
|
35/100/950(1070)
|
|
Fork-carriage width
|
b3(mm)
|
680
|
|
Ground clearance,laden,below mast
|
m1(mm)
|
68
|
|
Ground clearance,centre of wheelbase
|
m2(mm)
|
68
|
|
Aisle width for pallets 1000x1200 crossway
|
Ast(mm)
|
3050
|
|
Aisle width for pallets 800x1200 lengthway
|
Ast(mm)
|
3150
|
|
Turning radius
|
Wa(mm)
|
1550
|
|
Travel speed,laden/unladen
|
Km/h
|
6.8/7.0
|
|
Lift speed,laden/unladen
|
m/s
|
0.10/0.15
|
|
Lowering speed,laden/unladen
|
m/s
|
0.42/0.38
|
|
Max. gradeability,laden/unladen
|
%
|
6/10
|
|
Service brake
|
|
Electromagnetic
|
|
Drive motor rating S2 60 min
|
KW
|
2.2(AC)
|
|
Lift motor rating at S3 15%
|
KW
|
4.5(DC)
|
|
Battery voltage/nominal capacity K5
|
V/Ah or KWh
|
24/320(400)
|
|
Battery weight
|
kg
|
285/350
|
|
Sound pressure level at the driver's seat
|
dB(A)
|
68
|
ADVANTAGES:
●Using our developed rear wheel driven design,with stable quality,small turning radius ,and very good pass through abilities.
●Rated capacity is 1500kg with side shift, all panels use steel plate with compact appearance and good durability.
●All panels and covers are made by steel, they are in good durability.
●With sideway battery moving system, it is easy for battery changing.
●Two lifting cylinder on both side of mast, ensure good visibility and high stability.
●Using rubber wheel with good shock proof, low noise suitable for indoor and outdoor use on different ground.
●Rated capacity is 1500kg with side shift, all panels use steel plate with compact appearance and good durability.
●All panels and covers are made by steel, they are in good durability.
●With sideway battery moving system, it is easy for battery changing.
●Two lifting cylinder on both side of mast, ensure good visibility and high stability.
●Using rubber wheel with good shock proof, low noise suitable for indoor and outdoor use on different ground.
● Rear driving system,smart design with small turning radius and good pass through ,have good performance.
● Use AC motor without brush,free of maintenance.
● High gradeability up to 10% with full laden.
● The electric brake is used as the parking brake, which is easy to operate and safe.
● Use hyraulic power steering is for light steering, have the function of steering priority.
● Have option of cold-storage,full AC control system.
