Quick Details
-
Cable Length:
-
customize length
-
Connector Type:
-
Stereo
-
Conductor:
-
Bare Copper
-
Connector:
-
3.5mm Stereo Jack to 2 RCA Cable
-
Cable Type:
-
Round Cable
-
Jacket:
-
PVC
-
Application:
-
DVD Player
Quick Details
-
Model Number:
-
HS-SP1-16-V2.0
-
Brand Name:
-
XERXES
-
Place of Origin:
-
Guangdong, China
-
Cable Length:
-
customize length
-
Connector Type:
-
Stereo
-
Conductor:
-
Bare Copper
-
Connector:
-
3.5mm Stereo Jack to 2 RCA Cable
-
Cable Type:
-
Round Cable
-
Jacket:
-
PVC
-
Application:
-
DVD Player
Product Description
Technical parameters
|
HDMI Source Input Port
|
1
|
Display Device Output Port
|
16
|
|
|
|
Source Port Connector
|
19 PIN HDMI
|
Display Device Port Connector
|
19 PIN HDMI
|
|
|
|
Output Audio Port
|
SPDIFx1,R/Lx1
|
HDCP Compliant
|
YES
|
|
|
|
Single Link Range
|
3840x2160
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
|
|
Input DDC Signal
|
5 Volts P-P(TTL)
|
Deep Color
|
48 Bit
|
|
|
|
HDMI Version
|
HDMI2.0
|
Bandwidth
|
Up to 600Mhz
|
|
|
|
Signal Speed
|
Up to 18Gbps
|
The length of input cable
|
PS4≤10M;BLUE DVD≤10M
|
|
|
|
The length of output cable
|
≤10M
|
The cable standard
|
28AWG HDMI2.0
|
|
|
|
Vertical Frequency Range
|
60Hz
|
Power Consumption(max.)
|
6.5Watts
|
|
|
|
Operation Temperature
|
0℃-70℃
|
Working Voltage
|
DC 5V
|
|
|
|
Power Adaptor
|
5V 2A
|
Net Weight
|
1.08kg
|
|
|
Features

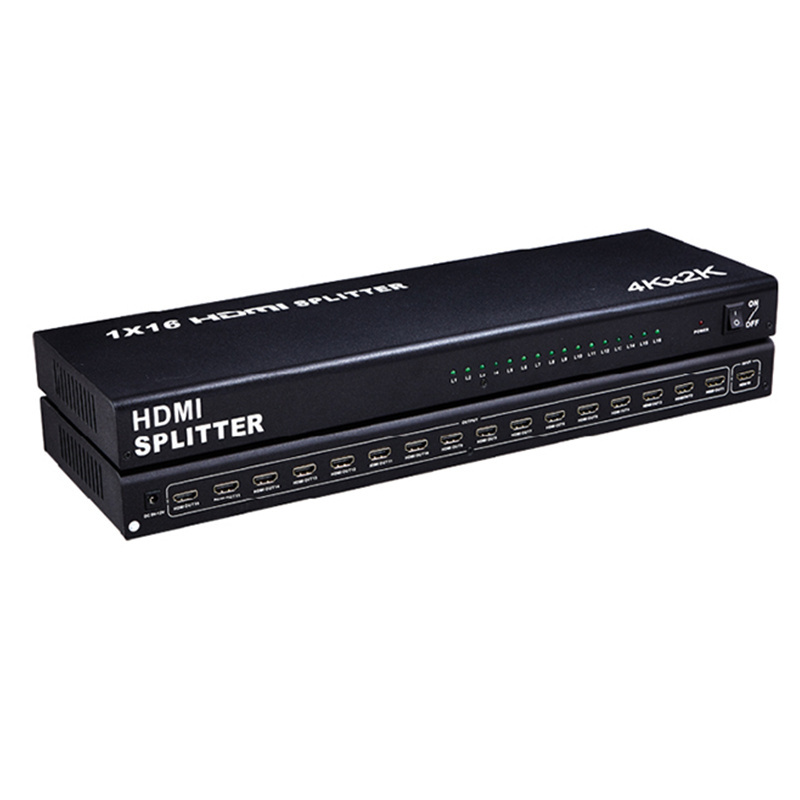

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
Specification
1.Fully HDMI 2.0 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP1.1/1.2/1.4/2.2 protocol;
2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to
4k2k@60Hz with 12bit YCBCR 4:4:4;
3. Support 3D frame sequential video format up to 1080p@60;
4. Supports Output simultaneous display at different resolutions;
5. Support Audio Extrator;
6. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC;
7. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD;
8. Extend the transmission distance and improve transmission signal;
9. Compatible with DVI by using HDMI to DVI adapter;
10. Metal casing design and overall shielding without signal interference.
