(1) Faster unloading speed: unique fluidized bed design in the tank, perfect matching of air
compressor and tank, advanced piping system, reasonable structure, low resistance, fast unloading speed, under standard working
pressure, The discharge speed is 1.2-1.6 ton/min.
(2) Low residual rate: horizontal tank design, advanced fluidized tube structure, reasonable fluidization angle, while ensuring unloading speed, increase the effective volume rate and reduce the residual rate, so that the residual rate is less than 0.25%.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
11500mm*2500mm*3950mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Tri-axles Bulk Cement Tanker Trailer Mounted on HOWO 6x4 Tractor TrucK
-
Keywords:
-
Bulk cement tanker semi trailer
-
Usage:
-
Delivery Cement
-
Suspension:
-
Mechanical Suspension
-
Landing Gear:
-
Standard 28Ton
-
Axle:
-
13 ton Fuwa Brand
-
Tire:
-
12R22.5
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Loading capacity:
-
50-60T
-
Color:
-
Customers Optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60 tons
-
Brand Name:
-
Genron
-
Size:
-
11500mm*2500mm*3950mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Tri-axles Bulk Cement Tanker Trailer Mounted on HOWO 6x4 Tractor TrucK
-
Keywords:
-
Bulk cement tanker semi trailer
-
Usage:
-
Delivery Cement
-
Suspension:
-
Mechanical Suspension
-
Landing Gear:
-
Standard 28Ton
-
Axle:
-
13 ton Fuwa Brand
-
Tire:
-
12R22.5
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Loading capacity:
-
50-60T
-
Color:
-
Customers Optional

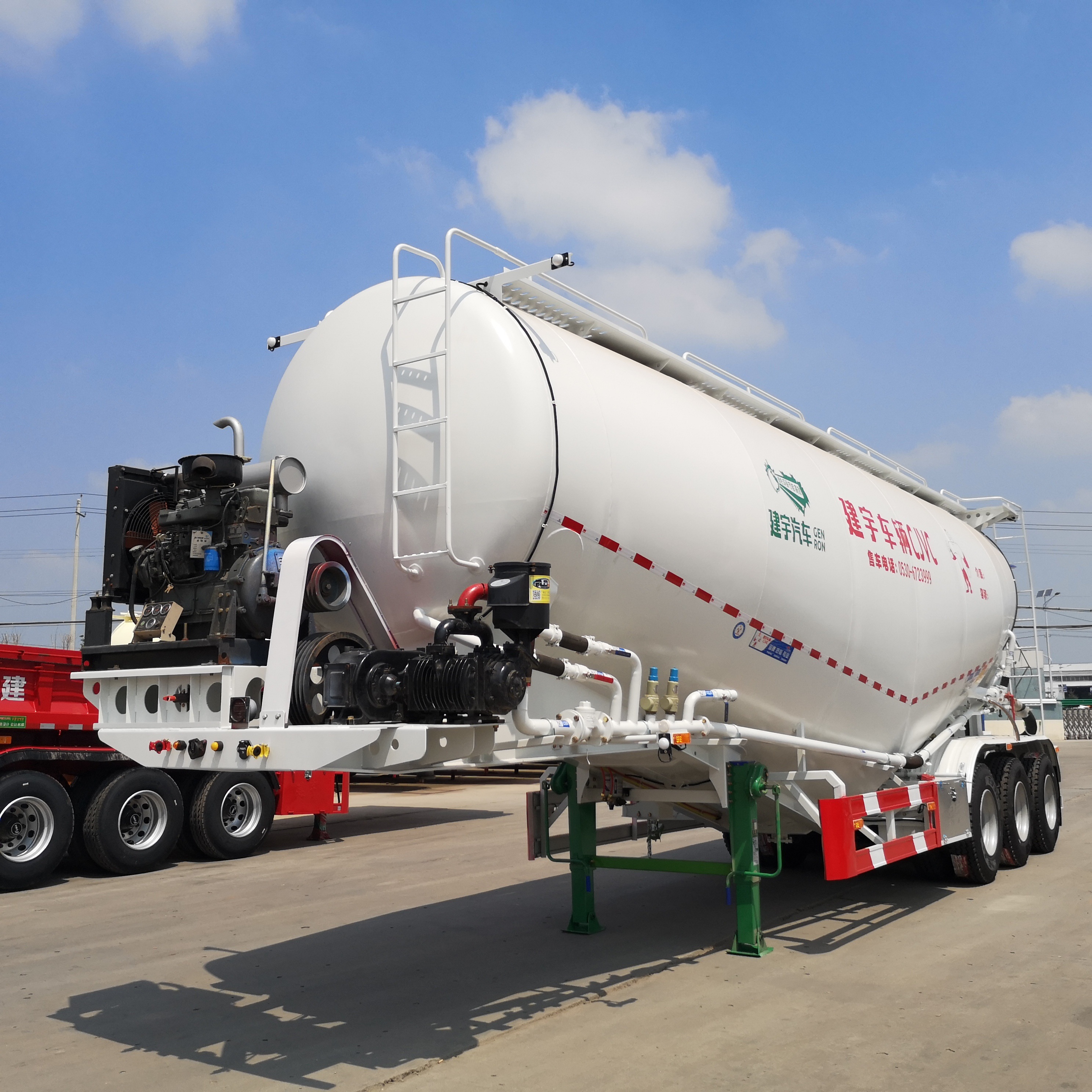

China Bulk Cement Trailer Professional Manufacturer Tri-axles Bulk Cement Tanker Trailer Mounted on HOWO 6x4 Tractor Truck
Product Description
Advantages :
|
Specification for Bulk Cement Trailer
|
|
|
|
|
||||
|
Tare weight
|
About 9 tons
|
|
|
|
||||
|
Total Volume（m3）
|
45 m³
|
|
|
|
||||
|
Tanker Body Material
|
Thickness is 4 mm , High Tension steel 610L
|
|
|
|
||||
|
Tank head
|
Thickness is 4 mm , High Tension steel 610L
|
|
|
|
||||
|
Diesel Engine
|
China famous brand 4105 Engine
|
|
|
|
||||
|
Compressor
|
China famous brand 14 m³ single cylinder compressor /
12 m³ double cylinder compressor |
|
|
|
||||
|
Manhole Cover
|
3 pcs
|
|
|
|
||||
|
Discharging Valve
|
Diameter is 4 inch
|
|
|
|
||||
|
Discharging Pipe
|
With 2 pcs 4 inch rubber hose , each pcs 7 m
|
|
|
|
||||
|
Cat Walk
|
With Common model,and Removable Safety lander on the top of tanker
|
|
|
|
||||
|
Axle
|
China best brand FUWA brand 13T axle 3 pcs
|
|
|
|
||||
|
Landing Gear
|
China brand 28T double speed
|
|
|
|
||||
|
King Pin
|
JOST 2.00 inch bolt-in king pin
|
|
|
|
||||
|
Suspension
|
Heavy duty mechanical suspension
|
|
|
|
||||
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer 6 pcs
|
|
|
|
||||
|
Pneumatic Braking System
|
Euro brake system ;
WABCO emergency valve; 6 pcs double chamber ; 1 pcs Aluminium alloy 45L air tanker |
|
|
|
||||
|
Tires and rims
|
Good quality 12.00 R22.5 tires 12 pcs + 2pcs
|
|
|
|
||||
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.Two-component polyurethane paint.
|
|
|
|
||||
|
Accessories
|
One standard tool box and others
|
|
|
|
||||
Product Details
Engine and air compressor choose China famous brand,
Ensure the service life of the vehicle
Tank body choose
high
tension steel 610 L,
longer service life
Front-climbing ladder for easy inspection
Perfect piping layout reduces the residual rate of materials
Add auxiliary blowing pipe, discharge faster and cleaner
Running system choose BPW/Fuwa axles and famous brand tires and rims
Choose two-component polyurethane paint,
Make vehicle paint more durable
Automatic submerged arc welding，
Make the tank more pressure-bearing
to ensure the quality of the tank.
Various Types
4 axles 60 tons bulk cement tank trailer
air compressor i
nstall in the back
3 axles 38 m3 bulk cement carrier without air compressor
3 axles 45 cubic meters cement tank trailer with air compressor
Product Usage
Cement Bulk Introduce:
1.Cement tanker is mainly composed of tank body, tank cover, fluidized bed, discharge system, air intake system, driving system, etc.
Transport for Coal ash ,Cement powder, Lime powder ,Mineral powder etc, all the diameter less than 0.1 mm.
2. Mainly used in cement plants, cement warehouses and large construction sites.
Using Cement Bulker can save packaging materials and labor, improve loading, unloading and transportation efficiency, and reduce transportation costs
Customer Photos
In Genron factory
In Genron factory
In Genron factory
Customer visit bulk cement trailer workshop
Customer check bulk cement tank head
Checking bulk cement tanker trailer chassis
Checking bulk cement tanker trailer Automatic welding machine
Checking bulk cement tanker parts
Walk into our spare parts warehouse to view the air compressor
Inspect trailer in the semi-finished workshop
Genron vehicle technical engineer to explain the cement tank welding
Checking the finished cement trailer
Welcome Come to Visit Our Factory at Any Time
Shipping and package
As a professional manufacturer and exporter,We will choose a safe, efficient and cost-saving transportation method for our clients.
shipping by Frame container
shipping by bulk cargo ship
