Quick Details
-
Warranty:
-
One year
-
Brand Name:
-
DWD
-
Model Number:
-
JTP-40
-
Place of Origin:
-
FUJIAN, CHINA
-
Horsepower:
-
1.0HP
-
Cable Length:
-
70mm-80mm
-
Outlet Size:
-
1"X1"
-
Power:
-
0.75KW/1HP
-
motor:
-
100% copper wire
-
Product Name:
-
Stainless steel JET pump
-
Luquid:
-
Water
-
Model:
-
JTP-40
-
Pump body:
-
Stainless steel
-
Impeller:
-
Stainless steel
-
Mechanical seal:
-
Carbon/Ceramic/Stainless steel
-
Motor housing:
-
Aluminum
-
Shaft:
-
Carbon steel
-
Insualtion:
-
Class B
-
Protection:
-
IP44
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
110/220V-240V
-
Warranty:
-
One year
-
Brand Name:
-
DWD
-
Model Number:
-
JTP-40
-
Place of Origin:
-
FUJIAN, CHINA
-
Horsepower:
-
1.0HP
-
Cable Length:
-
70mm-80mm
-
Outlet Size:
-
1"X1"
-
Power:
-
0.75KW/1HP
-
motor:
-
100% copper wire
-
Product Name:
-
Stainless steel JET pump
-
Luquid:
-
Water
-
Model:
-
JTP-40
-
Pump body:
-
Stainless steel
-
Impeller:
-
Stainless steel
-
Mechanical seal:
-
Carbon/Ceramic/Stainless steel
-
Motor housing:
-
Aluminum
-
Shaft:
-
Carbon steel
-
Insualtion:
-
Class B
-
Protection:
-
IP44

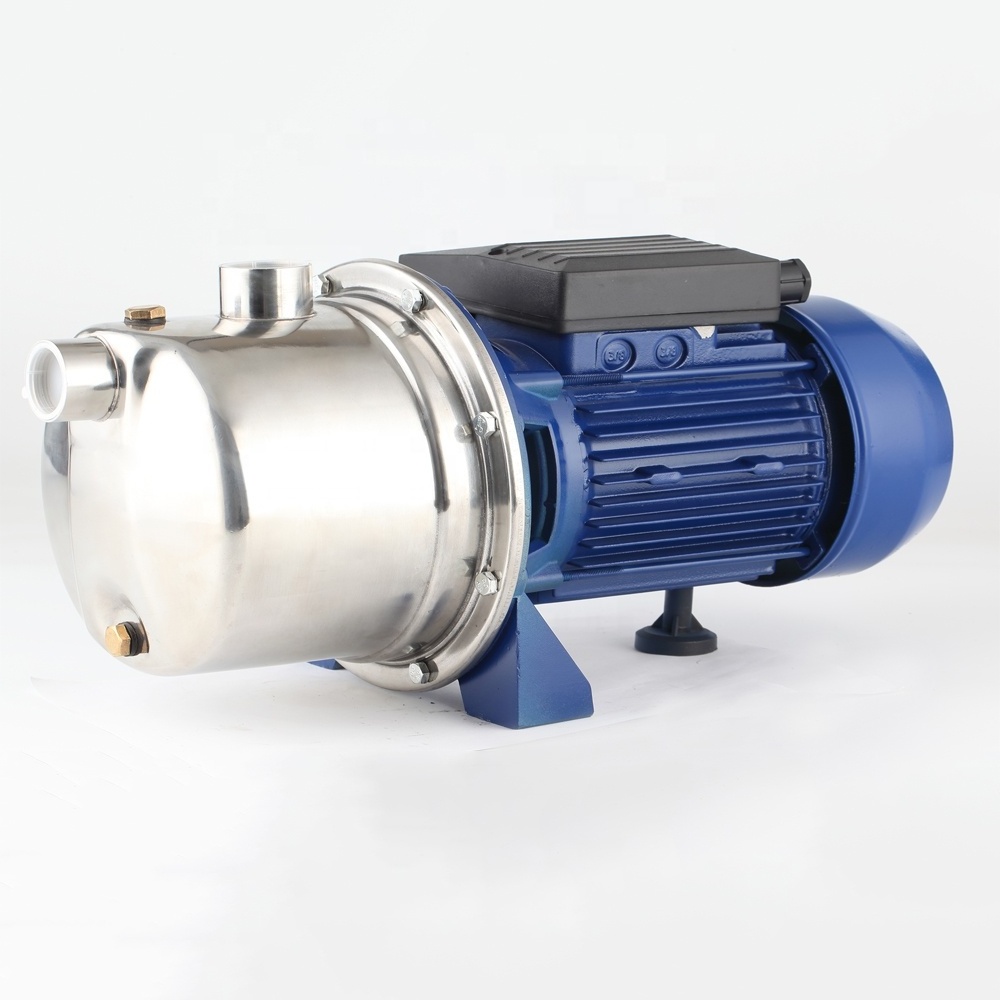

Stainless Steel JET Self Priming Pump
Self-priming jet pumps are designed for suction lifts and can be installed above the water source, including applications with air entrained in the water. Reliable and low maintenance, they are suitable for domestic use, distributing and garden irrigation, etc.
OPERATING LIMITS
Max Suction: 8M
Max Liquid Temperature: 50 ○ C
Max Ambient Temperature: +45 ○ C
STRUCTURAL CHATACTERISTICS
PUMP BODY : Stainless steel
IMPELLER: Stainless steel/Brass/PPO
FRONT COVER: Nylon/Aluminum
MECHANICAL SEAL SETS: Ceramic, graphite and rubber
|
Model
|
Power
|
H.max
|
Q.max
|
Suction head
|
Speed
|
Pipe Dia
|
|
JTP-25
|
0.5HP/0.37KW
|
38m
|
40l/min
|
9m
|
2850rpm
|
1"X1"
|
|
JTP-35
|
0.75HP/0.55KW
|
43m
|
45l/min
|
9m
|
2850rpm
|
1"x1"
|
|
JTP-40
|
1HP/0.75KW
|
48m
|
50l/min
|
9m
|
2850rpm
|
1"x1"
|
Details
FAQ
Q: Are you a manufacturer or a trading company?
A: We are professional pump manufacturer of China.
Q: Do you provide samples?
A: Yes, we do.
Q: What is your term of payment?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance, the balance should be paid before shipment or against B/L copy.
Q: About shipment.
A: By sea, by train or by express delivery.
Q: What about the delivery time?
A: Generally 20~35 days after the receipt of the deposit.
Q: If I purchase, how could I pay?
T/T, L/C, D/P and others.
