Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
larissa
-
Model Number:
-
100QJ(D)Y2-42/6
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
25-40mm
-
Power:
-
0.75-4kw
-
Usage:
-
Water
-
Fuel:
-
Electricity
Quick Details
-
Application:
-
Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Irrigation and Agriculture
-
Pressure:
-
High Pressure
-
Voltage:
-
220/380V, 220V/380V
-
Warranty:
-
1 year
-
Brand Name:
-
larissa
-
Model Number:
-
100QJ(D)Y2-42/6
-
Place of Origin:
-
Zhejiang, China
-
Outlet Size:
-
25-40mm
-
Power:
-
0.75-4kw
-
Usage:
-
Water
-
Fuel:
-
Electricity

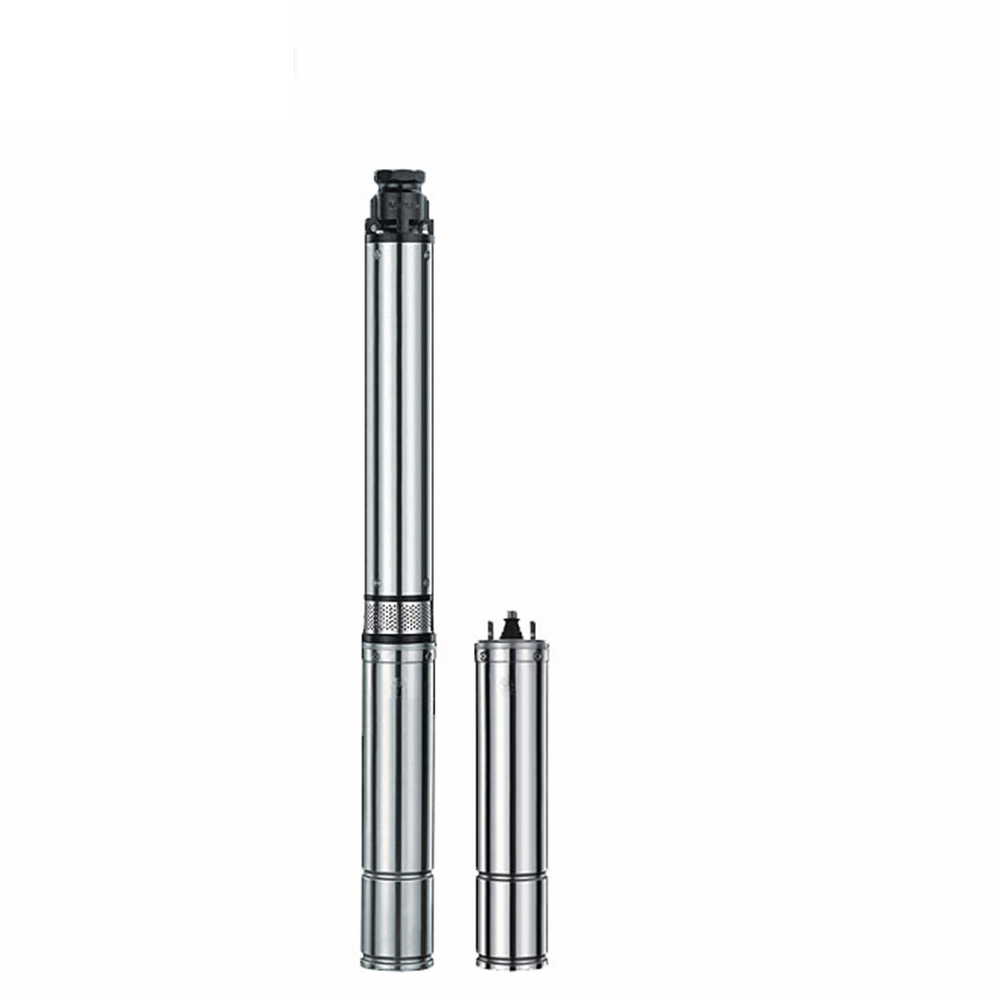

2019 Agricultural irrigation water pump Submersible Pump / Submersible Water Pumps for deep well pump
| Model |
Flow (m3/h) |
Lift (m) |
Power (kw) |
voltage (V) |
Frequency (hz) |
Speed (r/min) |
Piping (mm) |
| 100QJ(D)Y2- 42/6 | 2 | 42 | 0.75 | 220/380 | 50 | 2860 | 25/40 |
| 100QJ(D)Y2-56/8 | 2 | 56 | 1.1 | ||||
| 100QJ(D)Y2-70/10 | 2 | 70 | 1.2 | ||||
| 100QJ(D)Y2-84/12 | 2 | 84 | 1.5 | ||||
| 100QJ(D)Y2-98/14 | 2 | 98 | 1.8 | ||||
| 100QJ(D)Y2-112/16 | 2 | 112 | 2.2 | ||||
| 100QJ(D)Y2-126/18 | 2 | 126 | 2.5 | ||||
| 100QJ(D)Y2-140/20 | 2 | 140 | 2.8 | ||||
| 100QJ(D)Y2-161/23 | 2 | 161 | 3 | ||||
| 100QJ(D)Y2-175/25 | 2 | 175 | 3.2 | ||||
| 100QJ(D)Y2-210/30 | 2 | 210 | 4 | ||||
| 90QJ(D)Y2-38/7 | 2 | 38 | 0.75 | ||||
| 9 0QJ(D)Y2-50/9 | 2 | 50 | 1.1 | ||||
| 9 0QJ(D)Y2-60/11 | 2 | 60 | 1.2 | ||||
| 9 0QJ(D)Y2-72/13 | 2 | 72 | 1.5 | ||||
| 90QJ(D)Y2-82/15 | 2 | 82 | 1.8 | ||||
| 90QJ(D)Y2-93/17 | 2 | 93 | 2.2 | ||||
| 90QJ(D)Y2-105/19 | 2 | 105 | 2.5 | ||||
| 90QJ(D)Y2-120/22 | 2 | 120 | 2.8 |
Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Minimum well diameter:4".
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Pumps are designed by casing stressed
Curve tolerance according to ISO 2548
Options on request
Equip digital auto-control box
Special mechanical seal
Other voltages or frequency 60 Hz
Warranty:1 year
(according to our general sales conditions).
