Quick Details
-
Use:
-
repairing
-
Weight (KG):
-
16 KG
-
Zones:
-
2
-
Operations:
-
Manual / Software
-
Heating:
-
IR
-
Dimension:
-
L495mmx W480mmx H420mm
-
Weight:
-
16kg
-
Power:
-
220V AC
-
Size of Upper heating:
-
80mm x 80mm
-
Consumption of upper heating:
-
450W
-
Size of Bottom heating:
-
Size of Bottom heating
-
General power:
-
2300W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Dimensions:
-
495mmx 480mmx 420mm
-
Use:
-
repairing
-
Weight (KG):
-
16 KG
-
Zones:
-
2
-
Operations:
-
Manual / Software
-
Heating:
-
IR
-
Dimension:
-
L495mmx W480mmx H420mm
-
Weight:
-
16kg
-
Power:
-
220V AC
-
Size of Upper heating:
-
80mm x 80mm
-
Consumption of upper heating:
-
450W
-
Size of Bottom heating:
-
Size of Bottom heating
-
General power:
-
2300W

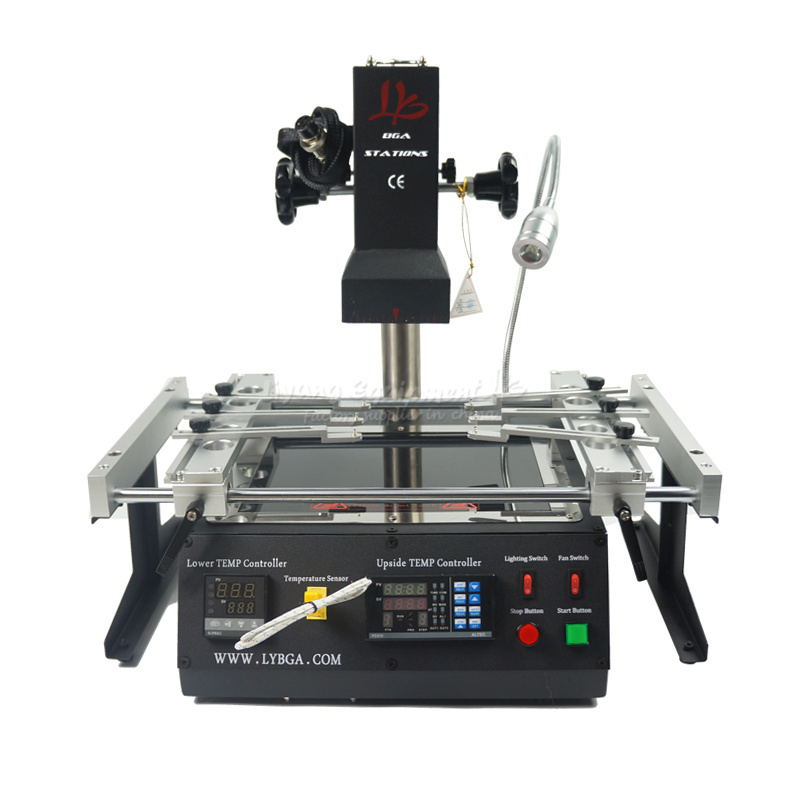

LY IR6500 V.2 BGA Repair Rework Solder Station 2 Zones Infrared PC410 Software Control Rework the Variety of CPU's Seat 2300W
Technical Parameters
|
Basic Parameters |
|
|
Zones |
2 |
|
Operations |
Manual / Software |
|
Heating |
IR |
|
Dimension |
L495mmx W480mmx H420mm |
|
Weight |
16kg |
|
Total weight |
About 17 kg, vary with the differen need of the users |
|
Electrical Parameters |
|
|
Power |
220V AC |
|
Upper Heating |
IR |
|
Size of Upper heating |
80mm x 80mm |
|
Consumption of upper heating |
450W |
|
Bottom Heating |
IR |
|
Size of Bottom heating |
2400mm x2000mm |
|
Consumption of Bottom heating |
1800W |
|
General power |
2300W |
|
Temperature Control |
|
|
Control mode of Upper |
Independent temperature control, high-precisio closed-loop |
|
control, precision ± 0.5%, Alarm |
|
|
Control mode of Bottom |
Independent temperature control, high-precisio closed-loop |
|
control, precision ± 0.5%, NO Alarm |
|
|
Rework Function |
|
|
SMD |
Suit for welding, remove or repair packaged devices |
|
such as BGA,PBGA,CSP,multi-layer substrates, EMI |
|
|
metallic shield product and solder/lead free Rework
|
|
|
Size of applicable chips |
≤70mm x70 mm |
|
Size of applicable PCB |
≤400mm x305mm |
Introduction
IR6500 V.2 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.IR6500 V.2 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
Feature
1. CE Certification
2.IR6500 V.2 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of
game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
3.IR6500 V.2 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
4.It can set up 8 rising temperature segments and 8 constant temperature
segments to control. It can save 10 groups of temperature curves at one time.
5.It sensitive temperature measurement sensor to obtain an accurate and
instantaneous temperature reading and monitoring.
6.The BGA rework station the technology of closed-loop temperature
control ensures accurate temperature process and even heat distribution.
7.Machine overall system integration Design, Rework station more integrated
workbench area occupied by smaller, Didn't mixed and disorderly of cables.
How to use
Please refer to the CD of USER MANUAL and to see how to use
Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature
Packing list:
1× bga rework station
1× power cable
1× usb to rs232 port cable (with CD)
1× thermocouple
1× vacuuum pen
1x tweezers
6x pcb jig with screw
1× CD of manual and software
( if not get or broken, please contact us,we send to you by mail )
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from Poland Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to EU or Russia. No need to pay for customs duties and VAT.
D. We can arrange shipment by SEA . Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free , 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5.OEM/ODM accept . MOQ of OEM/ODM is 10-100 sets.
