Quick Details
-
Weight:
-
10000000 KG
-
Dimension(L*W*H):
-
Actual Size/Weight
-
Product name:
-
Liquid Oxygen-Nitrogen Plant
-
Main Process:
-
Cryogenic Rectification for Lo2 and Ln2
-
Flow:
-
1500 Nm3/H
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DSW
-
Voltage:
-
220V
-
Weight:
-
10000000 KG
-
Dimension(L*W*H):
-
Actual Size/Weight
-
Product name:
-
Liquid Oxygen-Nitrogen Plant
-
Main Process:
-
Cryogenic Rectification for Lo2 and Ln2
-
Flow:
-
1500 Nm3/H
-
Certification:
-
ISO9001
Product Description
____________________________________________________
Specification
____________________________________________________
____________________________________________________
| M ODEL CONTENTS | Oxygen Production | Oxygen Purity | Pressure | Nitrogen Production | Nitrogen Purity | Pressure | Startup Time |
| KDON-1500Y | Nm3/h | %(O 2 ) | BarG | Nm3/h | ppm(O 2 ) | BarG | H our |
| 1500 | ≥ 99.6 | 0.5 | 1500 | ≤10 | 4 | 8 |

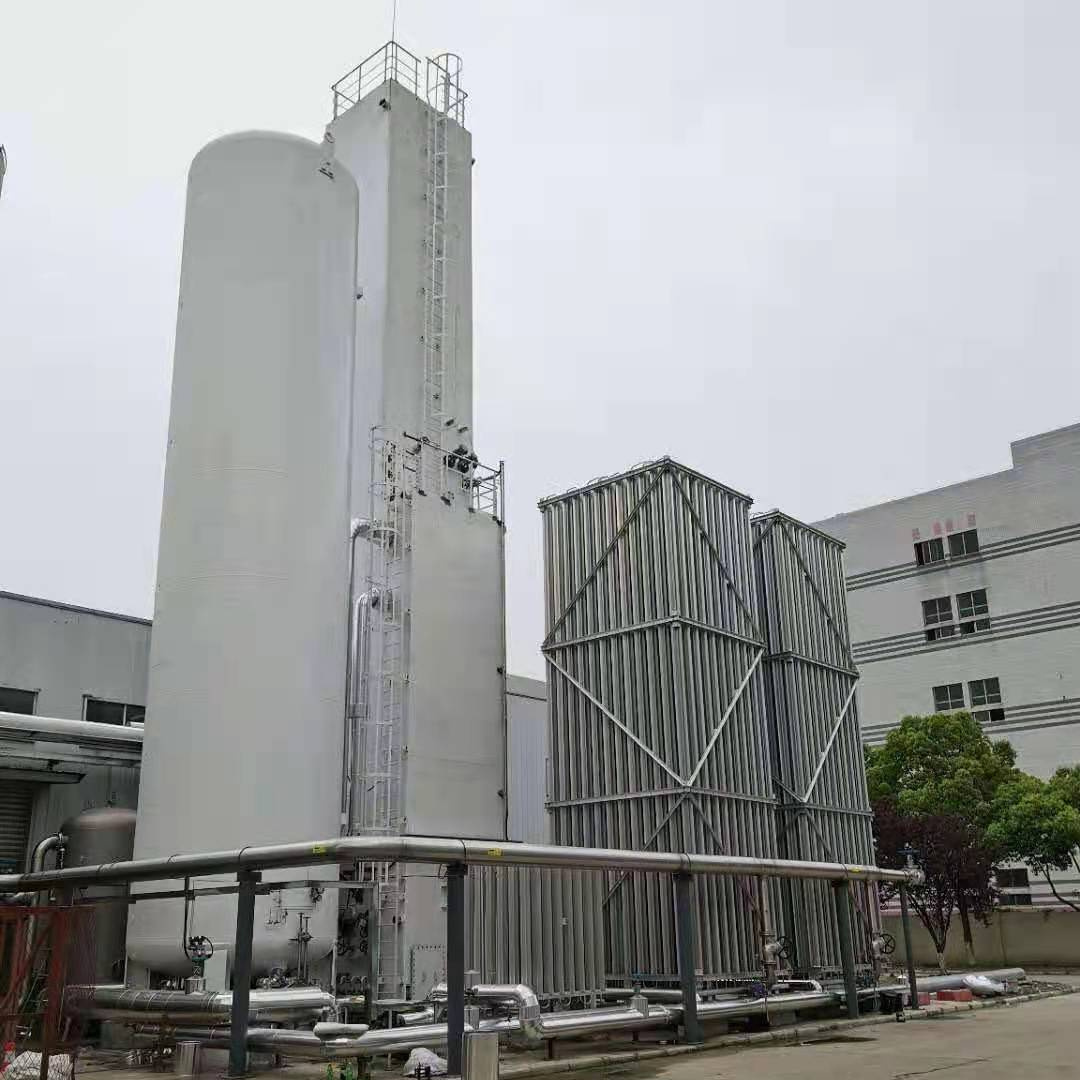

Main equipment of
Air Separation Plant-Oxygen Gas Plant-Liquid Oxygen Plant:
Air compressor ; Air tank ; Precision filter ; Air pre-cooling system ; Water separator ; Molecular sieve purification system ; Heater or molecular sieve purification system ; Rectification column ; Heater or the rectification column ; Gas bearing turbo-expander ; Liquid Oxygen Pump ; Filling device ; Electrical & instrument control system ; Liquid storage tanks ; Gas cylinders, etc
Main Features of
Air Separation Plant-Oxygen Gas Plant-Liquid Oxygen Plant:
1.This development and design of flow is new, my company use the technology to mature.2.Simple operation, convenient maintenance, starting time is short, unit power consumption is low. 3.Oxygen of high purity and very stable, meet and exceed technical indicators of GB8982-1998<<medical oxygen>>4. Use of air cooling equipment, do not need cooling water, adaptable, saving the cost. 5.Security :The outside compression process is oxygen be compressed at room temperature, The inside compression process is liquid oxygen be compressed at low temperature, Security than more with the inside compression process; Extraction a lot of liquid oxygen from evaporation-condenser, To ensure that no accumulation of hydrocarbons; Evaporation of high pressure with liquid oxygen, reducing the possibility of hydrocarbon accumulation; Reducing fire hazards. 6.Reliability: liquid oxygen pump excellent performance, easy to maintain; Booster compressor is one or two compression, oxygen compressor Booster compressor is three or five compression, High reliability with booster compressor.
