Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLS
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
5mil
-
Min. Line Spacing:
-
3mil
-
Surface Finishing:
-
HASL, ENIG, OSP, Silver plating
-
Board Size:
-
customized
-

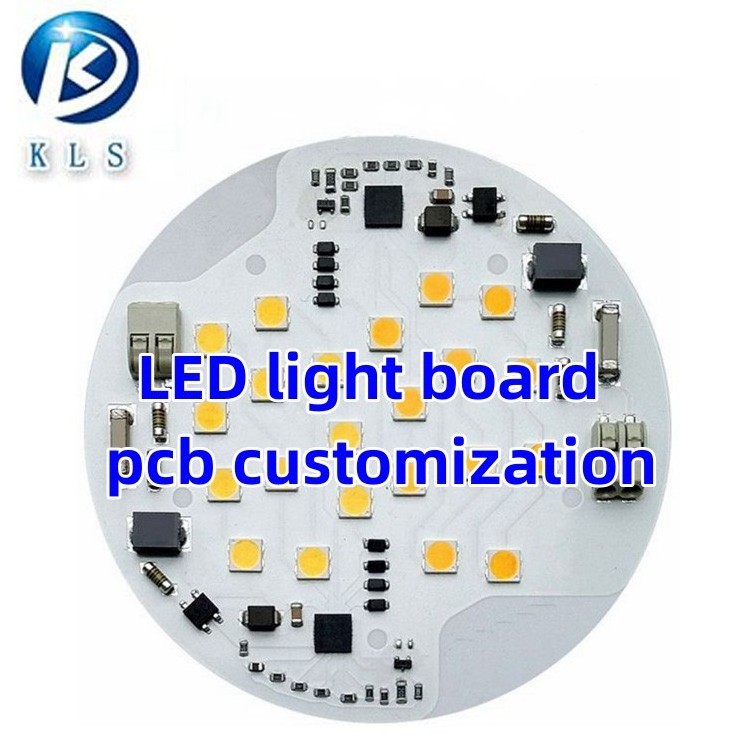

Product name:
-
pcb led
-
Application:
-
LED lighting / LED bulb lighting
-
Material:
-
Aluminum/Ceramic/FR4/Copper base
-
Service:
-
One-Stop OEM Service
-
PCB Size/PCB Panel Size:
-
Customized
-
PCB Thickness:
-
Customized
-
Solder mask color:
-
Blue.green.red.black.white.etc
-
Wattage:
-
3w 5w 7w 9w 12w 18w 20w 24w 30w 36w
-
MOQ:
-
1pcs
-
Keywords:
-
color led pcb
Quick Details
-
Base Material:
-
Aluminum/FR4
-
Board Thickness:
-
0.2mm,1mm ,1.5mm , 2mm,2.5mm,3mm
-
Model Number:
-
VI 075
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLS
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
5mil
-
Min. Line Spacing:
-
3mil
-
Surface Finishing:
-
HASL, ENIG, OSP, Silver plating
-
Board Size:
-
customized
-
Product name:
-
pcb led
-
Application:
-
LED lighting / LED bulb lighting
-
Material:
-
Aluminum/Ceramic/FR4/Copper base
-
Service:
-
One-Stop OEM Service
-
PCB Size/PCB Panel Size:
-
Customized
-
PCB Thickness:
-
Customized
-
Solder mask color:
-
Blue.green.red.black.white.etc
-
Wattage:
-
3w 5w 7w 9w 12w 18w 20w 24w 30w 36w
-
MOQ:
-
1pcs
-
Keywords:
-
color led pcb
Product Paramenters
We provide customized services. The following is our aluminum PCB production capacity. We can produce other PCB products. The page can't fit.
If you want to know more details, please contact us.
|
Material
|
CEM-1/3, FR4, Ceramic, Aluminum, PI, PET, Rogers
|
|
Layers
|
1-32 layers
|
|
Final PCB Thickness
|
0.2mm-6.0mm(8mil-126mil)
|
|
Finish copper thickness
|
0.5-12oz
|
|
Min.Hole Size
|
0.1mm (4mil)
|
|
Min Line width
|
0.1mm (4mil)
|
|
Surface Finishes
|
HASL – Leaded Solder Tin/Nickel
HASL – Lead Free Solder Electroless Soft Gold Wire Bondable Soft Gold Nickel Flash Gold Electroless Nickel Immersion Gold/ Silver/ Tin OSP Carbon Ink |
|
Assembly
|
SMT, THT
|
|
Min.Finished Hole Diameter
|
0.15mm
|
|
PTH Tolerance
|
±0.05mm
|
|
Copper Thickness Of Hole
|
20-25um
|
|
Max.Aspect Ratio
|
10:1
|
|
Hole Position Tolerance
|
+/-2mil
|
|
Outline Tolerance
|
Normal:+/-5mil
Special:+/-4mil
|
|
Tolerance of tracks
|
+/-20%
|
|
PTH Tolerance
|
Normal:+/-3mil
Special:+/-2mil
|
|
NPTH Tolerance
|
+/-2mil
|
|
Impedance Control
|
+/-10%
|
|
Twist and Bow
|
<=0.75%
|
|
Thermal Conductivity(w/mk)
|
1.0； 2.0； 3.0； 10.0－80.0
|
|
PCB Test
|
100% Test
|
|
PCB Test Equipments
|
5 Flying Probe Test machines
6 Test Jig machines |
|
PCBA Test
|
100% AOI Test
|
