Quick Details
-
Size:
-
980**1290*1950mm
-
Place of Origin:
-
Shanghai, China
-
Heat Source:
-
Steam/Electric/Gas
-
Capacity:
-
18kg-20kg-25kg-30kg-50kg-70kg-100kg tumble dryer
-
Drum Depth:
-
1070-1220mm
-
Brand:
-
Laundry Mate
-
Voltage:
-
110,220,230,380,400,415V
-
Certification:
-
CE Certification
-
Compressed Air:
-
6mm
-
Steam Outlet:
-
N20
-
Steam Pressure:
-
0.6mpa
Quick Details
-
Warranty:
-
13 months
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Weight:
-
350kg
-
Size:
-
980**1290*1950mm
-
Place of Origin:
-
Shanghai, China
-
Heat Source:
-
Steam/Electric/Gas
-
Capacity:
-
18kg-20kg-25kg-30kg-50kg-70kg-100kg tumble dryer
-
Drum Depth:
-
1070-1220mm
-
Brand:
-
Laundry Mate
-
Voltage:
-
110,220,230,380,400,415V
-
Certification:
-
CE Certification
-
Compressed Air:
-
6mm
-
Steam Outlet:
-
N20
-
Steam Pressure:
-
0.6mpa

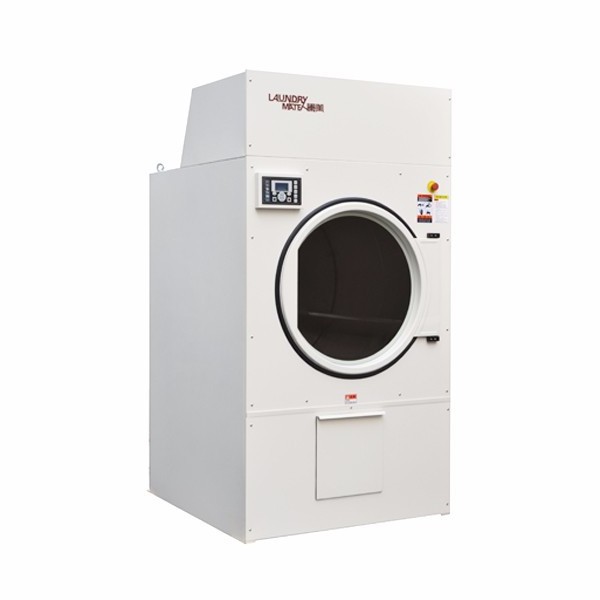

Process industrial washing machine and dryer price/China laundry washer dryer machine for sale Full Automatic Washer Extractor (25 kg)
1. Advanced computer control can be uploaded 5 programs. Operator can set various temperature, time and rotating direction per drying requirements for different linen to ensure the best drying performance.
2. For all kinds of temperature, time and one-way and bothway rotation set,linen to achieve the best drying effect.
3. Manual operation also available during drying and it is very much easy to operate.
4.The dryer can change to cooling program automatically according to the setting time and temperature after the drying cycle finished ensure the best drying performance.
State-to-Art Design, Highly Drying Efficiency
1. Scientific and reasonable design which makes temperature, airflow, the space of cylinder and the volume of exhausting to achieve the best balance, so that makes the best use of heat thermal energy.
2. Using large size of the heating element, so heat dissipation area is large and speed of drying is fast.
3. New generation of deflector design with thicker heat insulation enable to minimize heat loss.
4. Drum with more range of evens, so that the maximum amount of hot air flow in the linen to enhance the efficiency of drying.
5. LM-100 dryer has dual fan configuration, which allows exhaust stronger.
Safety
2. Equipped with independent stop switch can quickly cut off power supply when the equipment in abnormal situation to ensure safety for industrial tumble dryer machine.
Belt rotation
1. Secondary belt drive reduces reversing impact, which is reliable during operation and easy maintenance.
2. Easy to maintain with a standard set of installation kit.
Main Parameters | ||||
Model No | Unit | LM-50 | LM-70 | LM-100 |
Capacity | kg | 50 | 70 | 100 |
Heating Source | S/E | S/E | S/E | |
Drum Diameter | mm | 1120 | 1270 | 1450 |
Drum Deepth | mm | 1070 | 1125 | 1220 |
Speed | r/min | 32 | 32 | 30 |
Steam Pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Power | V | 380 | 380 | 380 |
Motor Power | kw | 1.1 | 1.5 | 2.2 |
Fan Motor Power | kw | 2.2 | 3 | 1.5×2 |
Electric Heater | kw | 36 | 60 | 80 |
Steam Inlet | mm | DN25 | DN25 | DN25 |
Steam Outlet | mm | DN20 | DN20 | DN20 |
Compressed Air | mm | 6 | 6 | 6 |
Weight | kg | 800 | 950 | 1400 |
Dimension (L *W*H ) | mm | 1200×1650×2200 | 1445×1780×2410 | 1590×1870×2510 |
