Quick Details
-
Model Number:
-
QTF05
-
Color:
-
Sliver
-
Product name:
-

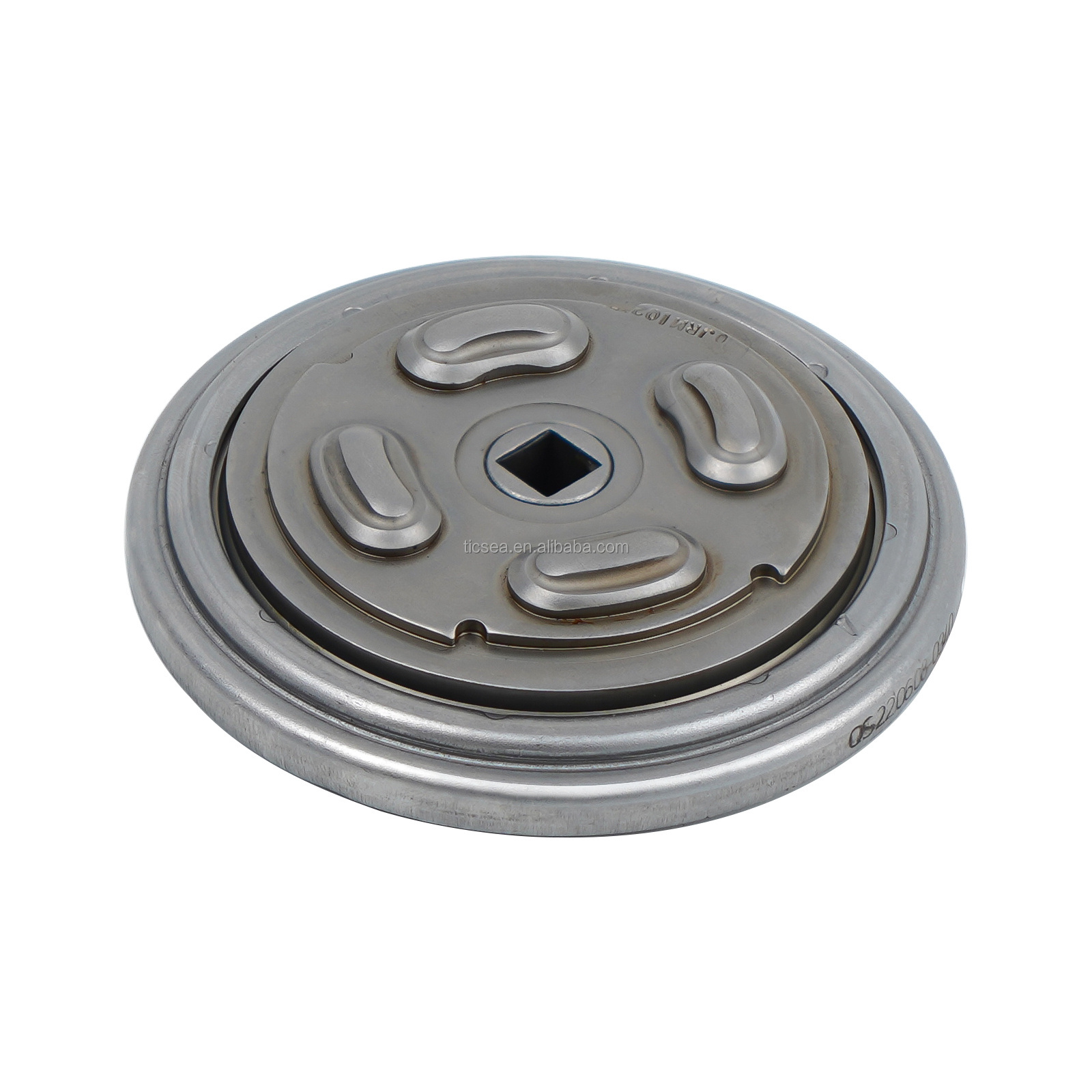

Sector Tooth Car Seat Electric Recliner Mechanism
-
Application:
-
Automotive seats
-
MOQ:
-
50PCS
Quick Details
-
Size:
-
Universal
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Ticsea
-
Model Number:
-
QTF05
-
Color:
-
Sliver
-
Product name:
-
Sector Tooth Car Seat Electric Recliner Mechanism
-
Application:
-
Automotive seats
-
MOQ:
-
50PCS
Products Description
|
A seat recliner is a device that connects the seat back with the seat frame. It can be used to adjust the lean angle. An important component of a seat recliner is the sector tooth, which has thus far been manufactured by the fine blanking process.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical Requirements
1. There is lubricating grease inside the angle adjuster, so pickling and sandblasting are not allowed;
2. The angle adjuster is a travel angle adjuster without empty travel;
3. Adjusting step length: 2 ° per tooth;
4. Breaking torque: locking position forward >4000nm, backward >4000nm;
5. Front and rear clearance of angle adjuster: <1.5mm;
6. Lateral clearance of angle adjuster: <3mm;
7. Unlocking torque: see unlocking torque curve for details;
8. Full unlocking angle: 30 ° +3 °;
9. Critical unlocking angle: 16 ° ± 3 °
10. Operating torque: operating torque after complete unlocking ≤ 1.5nm; 11. When unlocking to 6 °, the unlocking torque should be >1.0nm; 12. Operating temperature: -40c~80c:
13. The operation durability test meets 12000 times:
14. Handle resilience: fix a single angle adjuster on the rigid backrest, turn the backrest by a certain angle after unlocking, and then release the handle, If the handle cannot recover automatically, apply a force of ± 49n at 500mm from the top of the backrest to the rotation center, and the handle returns to the original position:
15. Both sides of the angle adjuster are welded to the rigid coupling plate, and the lower coupling plate is fixed on the test bench, 250mm away from the rotation center and 500mm above. After releasing 40kg weight and doing free fall movement, the angle adjuster is not allowed to have sliding teeth, jumping teeth, unlocking and other faults after the experiment is completed;
16. The angle adjuster shall be placed at a high temperature of 80 ℃ for 4h, and the lubricating grease shall not overflow. After being placed at room temperature, all functions of the angle adjuster shall be normal; When the angle adjuster is placed at -40 ℃ for 4h, the lubricating grease has no solidification. After placing at room temperature, all functions of the angle adjuster are normal;
Packing
|
Package
|
Standard export carton with pallet if necessary
|
|
|
|
|||
|
Shipping Methods
|
Sea shipping, Express, Air shipping, etc
|
|
|
|
|||
|
Port
|
Shanghai, Ningbo, Shenzhen, Qingdao, Xiamen, etc
|
|
|
|
|||
|
OEM Package
|
Provided.
|
|
|
|
|||
|
Payment Terms
|
T/T, L/C, PayPal, Trade Assurance Order, Western Union
|
|
|
|
|||
