Quick Details
-
Model Number:
-
PT124B-281
-
overload:
-
150%FS
-
pressure range:
-
-0.1MPa~0~0.1Mpa; 0~10MPa
-
output:
-
4-20mA, 0-5V;0-10V,RS485
-
burst pressure:
-
300%FS
-
power supply:
-
12~36VDC
-
response time:
-
<5ms
-
combine error:
-
0.5%FSO
-
pressure connecton:
-
M20*1.5,G1/2,G1/4,1/2NPT
-
electrical connector:
-
terminal block
-
explosion-proof grade:
-
Ex ib IIC T4, Ex ib IIC T6
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PT124B-281
-
overload:
-
150%FS
-
pressure range:
-
-0.1MPa~0~0.1Mpa; 0~10MPa
-
output:
-
4-20mA, 0-5V;0-10V,RS485
-
burst pressure:
-
300%FS
-
power supply:
-
12~36VDC
-
response time:
-
<5ms
-
combine error:
-
0.5%FSO
-
pressure connecton:
-
M20*1.5,G1/2,G1/4,1/2NPT
-
electrical connector:
-
terminal block
-
explosion-proof grade:
-
Ex ib IIC T4, Ex ib IIC T6
Product Information

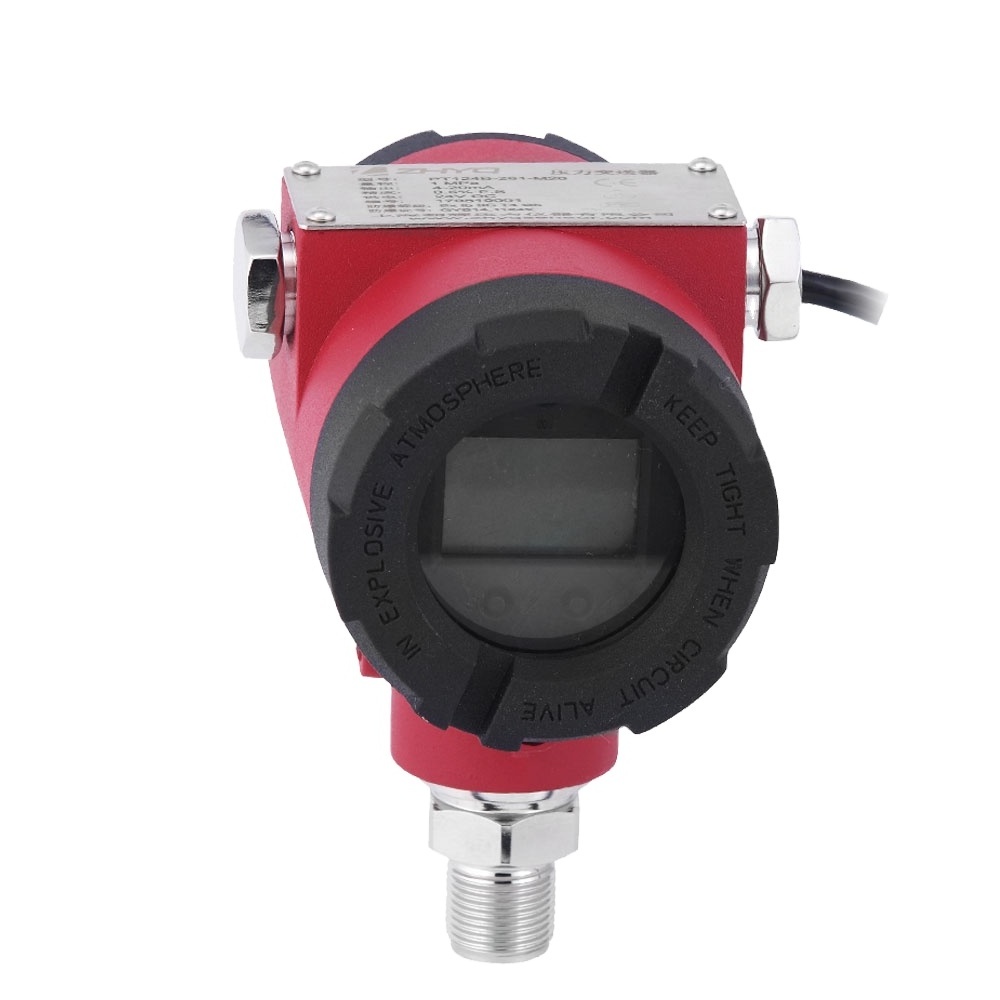

Details Images
Product Specification
Range
|
-0.1MPa~0~0.1Mpa; 0~10MPa
|
Accuracy
|
0.25%FS;0.5%FS;1%FS
|
Linear
|
0.02%FS
|
Over pressure
|
150%FS
|
Out put
|
4-20mA(2 wire), 0-5V;0-10V(3 wire)
|
Input voltage
|
24(12-36V)DC
|
Operating temperature
|
-40℃~125℃
|
Temperature compensation
|
-10℃~70℃
|
Explosion class
|
Ex ib IIC T4 / Ex ib IIC T6
|
Electric connector
|
Terminal Block
|
Process connector
|
G1/2, M12, M20x1.5 (optional)
|
Drawing
Wiring Code
Production Process
Application
