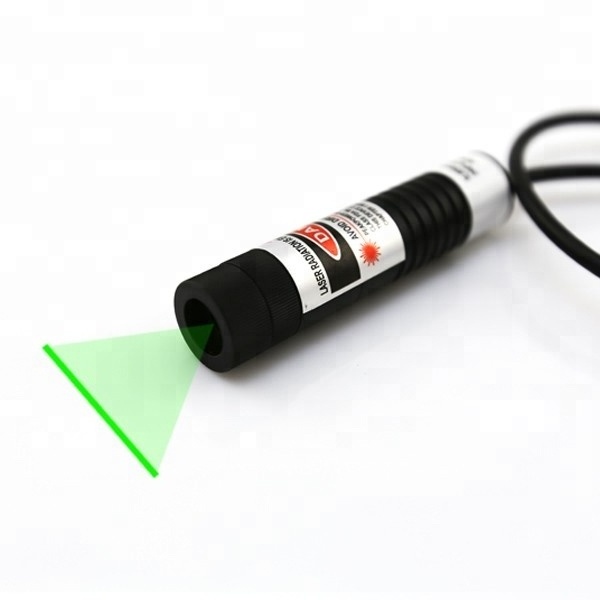

405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser
405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser

405nm laser robot machine vision 405nm laser diode module 520nm 5mw green line laser

FOB Reference Price: Get Latest Price
≥100 Pieces
US $20
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
0.01 KG
Product:
405nm 520nm line laser
CDRH Class:
I, II, IIIa, IIIb
Wavelength:
520nm
Material:
Aluminium or Brass
Beam type:
Line
Certificated:
certified and ISO9001
Input Voltage:
3V ~ 24V

Quick Details

Place of Origin:
Shaanxi, China
Spare Parts Type:
Laser Component
Brand Name:
OEM
Weight (KG):
0.01 KG
Product:
405nm 520nm line laser
CDRH Class:
I, II, IIIa, IIIb
Wavelength:
520nm
Material:
Aluminium or Brass
Beam type:
Line
Certificated:
certified and ISO9001
Input Voltage:
3V ~ 24V
Specification
Industrial Diode Laser Module
Wavelength
520nm
Output Power
1,5,10,20,35,50,80,100, 150mW and 200mW（Custom）
CDRH Class
I,II,IIIa,IIIb
Aperture
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm
Divergence
0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad
Circular Beam Size
Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m)
Elliptical Beam Size
1x2mm(a1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m）
Operating Current
<300mA
Input Voltage
3.0V, 5.0V, 9.0V, 12.0V, 24.0V
Operating Temperature
-20℃~60℃
Storage Temperature
-40℃~85℃
MTBF
>10,000hours
3 High Features
1.High Quality
Elite industrial laser diode modules use high-quality laser diode.
2.High Stability
Specially designed collimating lens and high stable driven circuit.
3.High Reliability
More than 10000 hours of use. For high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.
APC Driving Circuit
The output optical power of LD is stabilized so that it does not change with the increase of temperature and service time.
Low Cost&Long Life
On the one hand, improve the service life, on the other hand, make the volume smaller.
water-resistant IP55~65
Protect the laser module from water and dust.
