Customized Transparent High Temperature Resistance Quartz Glass Tube Quartz Pipe

Customized Transparent High Temperature Resistance Quartz Glass Tube Quartz Pipe

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15

≥100 Pieces

US $3

≥1000 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Qudao Quartz

Model Number:: QD-TUBE

Color:: clear

Product Name:: Quartz Glass Tube

Material:: quartz glass

MOQ:: 5PCS

Wall Thickness:: 0.5-30mm etc.

Work Temperature:: 1100 degree celsius

OEM/Customized:: Accepted

Purity:: 99.99%SiO2

Surface:: Polished Treatment

Density:: 2.2g/cm3

Package:: Bubble Film+Carton/Wooden Box

Quick Details

Type:: Clear Quartz Pipe

Application:: semiconductor

Outside Diameter:: 2-500mm

Place of Origin:: Jiangsu, China

Brand Name:: Qudao Quartz

Model Number:: QD-TUBE

Color:: clear

Product Name:: Quartz Glass Tube

Material:: quartz glass

MOQ:: 5PCS

Wall Thickness:: 0.5-30mm etc.

Work Temperature:: 1100 degree celsius

OEM/Customized:: Accepted

Purity:: 99.99%SiO2

Surface:: Polished Treatment

Density:: 2.2g/cm3

Package:: Bubble Film+Carton/Wooden Box

Product Description

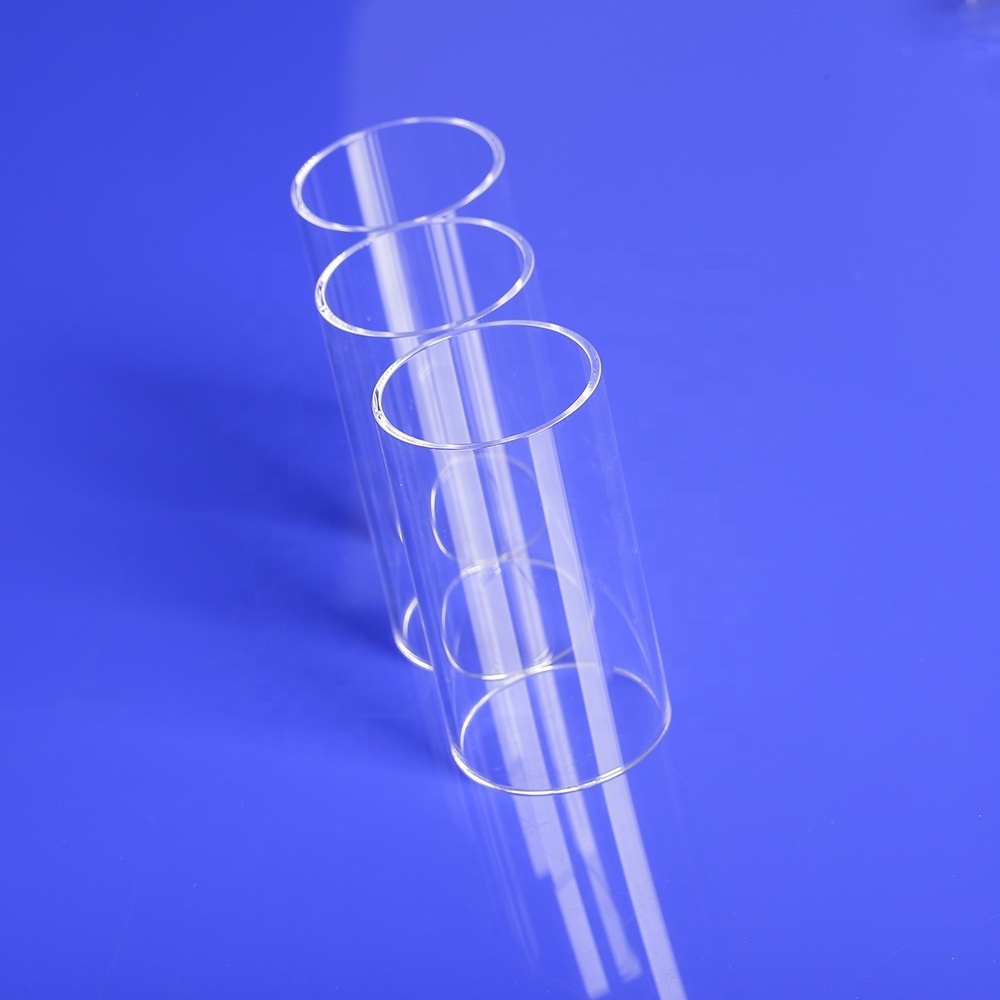

Clear quartz glass tube heat resistant fused quartz tube large diameter quartz pipes

We are a professional transparent quartz tube supplier.

Size: OD range we offer is 2mm to 500mm. The length of the quartz tube we can offer is 3000mm.

If the quantity you need is large, we can customize some special size quartz tube for you. OEM is also accepted.

We supply all kind quartz products containing: clear quartz tube, red quartz tube, opaque quartz tube, gold coated quartz tube , quartz substrate, quartz rings and all kinds quartz labware.

If you need sample, please contact us.

Outstanding Properties of Quartz Glass Materials

*High purity quartz with silica content 99.99%

*very low thermal couductivity, excellent thermal vibration resistance

* Very high deformation temperature and softening temperature

* High dielectric electric field strength, low dielectric loss, and low conductivity * Optical transmittance in an extremely wide spectral range from ultraviolet to infrared * Very good chemical stability, does not react with water, salt solutions and most acids. * Excellent radiation resistance.

Further-processing of transparent quartz tube :

Ends closing, sand blasting, polishing, bending, cutting, pinching, burning mouth and so on.

The special one, please kindly send me the drawing. We can produce as your requirements

Product Paramenters

Property Content	Property Values
SiO2	99.99%
Density	2.2×103 kg/cm³
Hardness	5.5 - 6.5 Mohs' Scale 570 KHN 100
Tensile Strength	4.8x107 Pa (N/mm2) (7000 psi)
Compression Strength	>1.1×109 Pa (160,000 psi)
Coefficient of Thermal Expansion	5.5x10-7 cm/cm·°C (20°C-320°C)
Thermal Conductivity	1.4 W/m·°C
Specific Heat	670 J/kg·°C
Softening Point	1730°C (3146°F)
Annealing Point	1180°C (2156°F)
Strain Point	1075°C (1967°F)
Electrical Resistivity	7x107 ohm cm (350°C)
