Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBLH86AS Series
-
Torque:
-
1.4N.m
-
Product Name:
-
Industrial BLDC motor
-
Phase:
-
3
-
Rated Voltage:
-
310VDC
-
Rated power:
-
440w
-
Rated Speed:
-
3000rpm
-
Length:
-
133mm
-
Weight:
-
3.0kg
-
Frame size:
-
86x86mm
-
Ambient Temperature:
-
-20 °C ~ +50 °C
-
Winding Connection:
-
Star
-
Certification:
-
CCC, ce, RoHS, VDE
Quick Details
-
Speed(RPM):
-
3000RPM
-
Continuous Current(A):
-
3.42A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBLH86AS Series
-
Torque:
-
1.4N.m
-
Product Name:
-
Industrial BLDC motor
-
Phase:
-
3
-
Rated Voltage:
-
310VDC
-
Rated power:
-
440w
-
Rated Speed:
-
3000rpm
-
Length:
-
133mm
-
Weight:
-
3.0kg
-
Frame size:
-
86x86mm
-
Ambient Temperature:
-
-20 °C ~ +50 °C
-
Winding Connection:
-
Star
-
Certification:
-
CCC, ce, RoHS, VDE

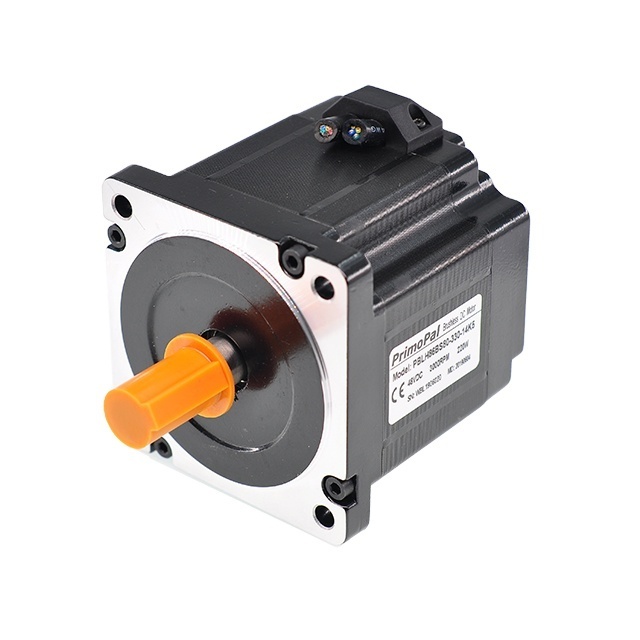

PrimoPal’s PBL series brushless DC motors offer high performance, long life and low maintenance for applications
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.
requiring stable velocity control over a wide speed range, with frame size ranging from 42mm (NEMA 17) to 110mm
(NEMA 42). These 3-phase and 8-pole brushless motors are provided with hall signals for commutation and velocity
loop feedback. Three designs are available to optimize your application’s performance with best cost-effective solution,
which are transmission type, high torque type and high efficiency type. In addition to our standard models,
custom-design brushless DC motors with a comprehensive accessory line of encoders, brakes, planetary and right angle
gear reduction to meet your specific application needs.
