- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MAXTOL or OEM brand
-
Model Number:
-
CW25-1100
-
Frequency:
-
50Hz/60Hz
-
Dimensions:
-
41(L)X32.5(W)X24(H)CM
-
Weight:
-
11kg
-
Certification:
-
CE Certificated, CE, EMC, ROHS
-
MOQ:
-
300PCS FOR OEM
-
Product name:
-

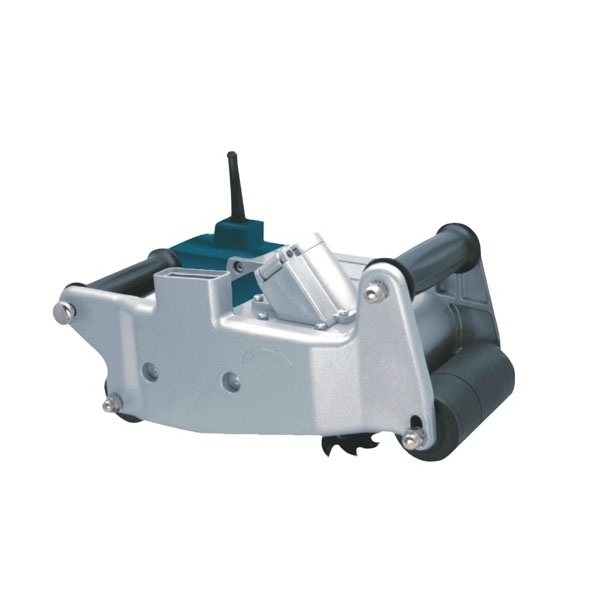

Wall Chaser
Quick Details
-
Rated Voltage:
-
220~240V
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
MAXTOL or OEM brand
-
Model Number:
-
CW25-1100
-
Frequency:
-
50Hz/60Hz
-
Dimensions:
-
41(L)X32.5(W)X24(H)CM
-
Weight:
-
11kg
-
Certification:
-
CE Certificated, CE, EMC, ROHS
-
MOQ:
-
300PCS FOR OEM
-
Product name:
-
Wall Chaser
Product Description
Product Details
|
TECHINICAL SPECIFICATION
|
|
|
|
|||
|
Product name
|
|
WALL CHASER
|
|
|||
|
Model no.
|
|
CW25-1100
|
|
|||
|
Rated Voltage
|
|
220-230V
|
|
|||
|
Rate Frequency
|
|
50/60Hz
|
|
|||
|
Input Power
|
|
1100W
|
|
|||
|
No-load speed
|
|
2000rpm
|
|
|||
|
Cutting width
|
|
16-25mm
|
|
|||
|
Cutting depth
|
|
20-30mm/ 25-35mm
|
|
|||
|
N.weight
|
|
7.0Kg
|
|
|||
|
Packing
|
|
Heavy duty BMC box
|
|
|||
|
Accessories
|
|
Blade 1pc
Blade spanner 1pc
Flange spanner 1pc
Screwdriver 1pc
Extra carbon brushes 1 set
Manual 1pc
Warrant ee card 1pc
|
|
|||
Main Features
1. One time cutting brick wall, then grooves can be used for install the water pipes or the cable tubes. very convenientl. no need to use chisels any more.
2. Durable power motor and gears system for industry use.never down your work!
3.Ergonomic design, easy to handle
4.Fast cutting about 200-300meters easily, while marble cutter can only cuts 30meters a day.
5.Resharpen Tungsten head blade,life time up to 5000meters bricks no problem.
7.Reduce fatigue of workers due to fast cutting.
8. It can be connect to vacuum cleaners to keep workers comfortable. no need to be troubled by dust.
6.Heavy duty BMC box +accessories
Detailed Images
Rotor
220 celzs degree copper wire
Lamination steel: DW600 BAO'STEEL
Best commutator & grooving, polishing processed.
PAG66-GF30 heavy strong nylon fan
Dust-proof processed
Double insulated shaft 40Cr
High quality high temperature insulating lacqure
Stator
220 celzs degree copper wire
Lamination steel: DW470 BAO'STEEL
Dust-proof processed
Lamination steel: DW470 BAO'STEEL
Dust-proof processed
Gear
-3 steps gear speed reduction to 2000RPM
for very stronger torque.
-Pinion gear: 20CrMnTi
-Main gear:40Cr
-Best grease
-Strongest gear case
Highest grade &well grooved and polishing proceed.
Bearings
Use C&U brand for long life use.
Rubber sleeve for dust proof
Application
-Straight cutting
Application
-Curved cutting
Inside color box
|
Packaging
|
|
|
|
Size
|
41(L)X32.5(W)X24(H)CM
|
|
|
Weight
|
11kg
|
|
|
Packaging Details
|
The normal package heavy duty BMC (Size: L*W*H).
and also could put printing color box
|
|
Packing &delivery
|
Packaging
|
|
|
|
Size
|
66(L)X43(W)X25.5(H)
|
|
|
N.W/G.W
|
21/22KG
|
|
|
PCS/CTN
|
2PCS
|
|
|
Packaging Details
|
The normal package is carton box.
We can also use customers's designed carton box or Color print box.
20' GP: 2500PCS; 40'GP: 5000PCS; 40'HQ:5500PCS
|
|
Certifications
FAQ
Q: Are you a trading company or manufacturer?
A: We are a manufacturer and we are also doing trading &sourcing of power tools products
Q: Do you provide samples?
A: Yes, we provide paid samples.
Q: What is your terms of payment?
A: Payment<=3000USD, 100% T/T in advance.
Payment>=3000USD, 30%T/T in advance, 70%T/T before shipment.
If you have another questions, pleasefeel free to contact us.
Q:What is MOQ for purchasing?
A: we offer 20pcs of trial order under our brand. And we do OEM brand order MOQ 300pcs each model
.
Q:What is our warrantee term?
A: We usually offer 1 year warrantee for our professional &industry range of power tools for malfuntion
problem or parts quality problem. We supply F.O.C spare parts or call back defect tools.
