Quick Details
-
Brand Name:
-
Graigar
-
Model Number:
-
AC-112AS
-
Resolution:
-
0.1 um (0~99.9um)/1 um (over 100um)
-
Accuracy:
-
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
-
Minimum Measurement Area:
-
6 mm
-
Size:
-
120x63x25 mm
Quick Details
-
Warranty:
-
1year
-
Type:
-
Thickness Gauge
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Graigar
-
Model Number:
-
AC-112AS
-
Resolution:
-
0.1 um (0~99.9um)/1 um (over 100um)
-
Accuracy:
-
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
-
Minimum Measurement Area:
-
6 mm
-
Size:
-
120x63x25 mm

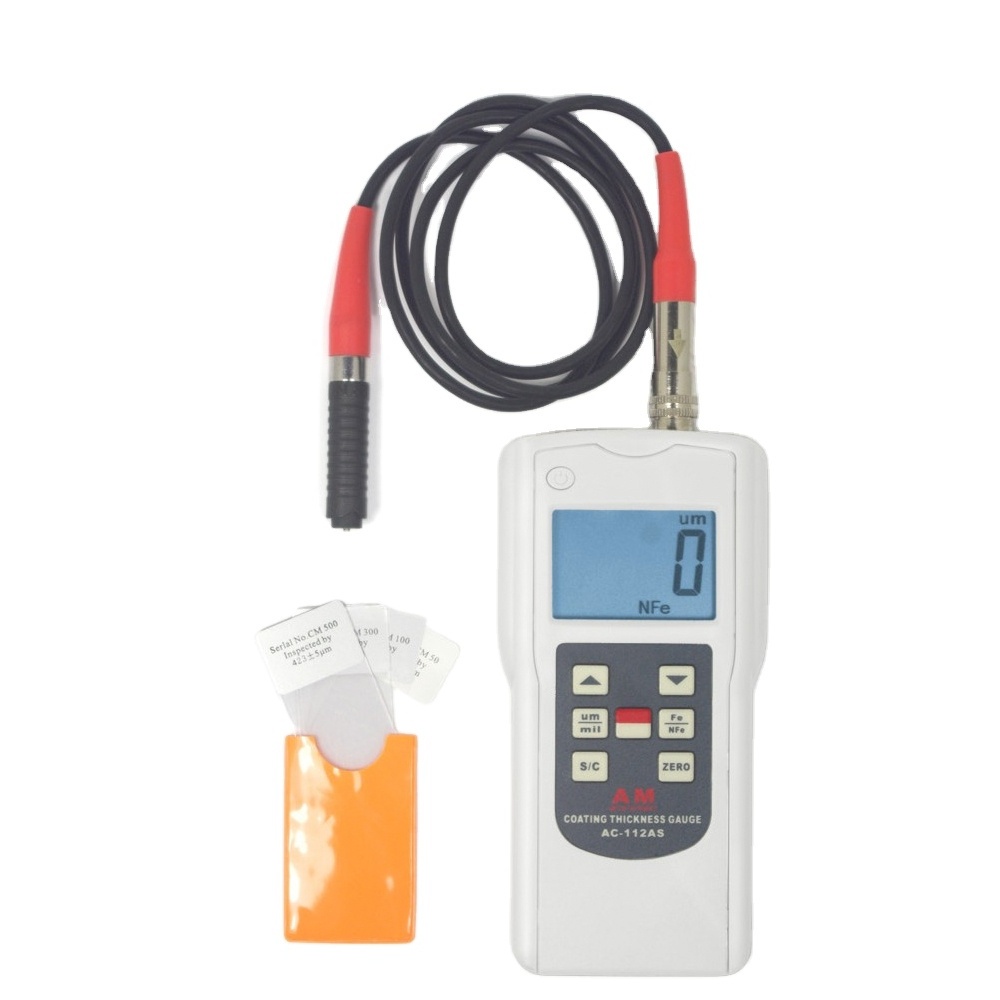

AC-112AS Coating Thickness Gauge Digital Thickness Meter Range 0~1250um
Product Parameters
| Measuring Range | 0~1250 um |
| 0~50mil (other range may be specified) | |
| Resolution |
0.1 um (0~99.9um)/1 um (over 100um) |
| Accuracy: | 1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
| Minimum Measurement Area | 6 mm |
|
Minimal Surface |
F Type convex1.5 mm / concave 25 mm |
| NF Type convex 3 mm / concave 50mm | |
| Operating Condition | Temp: 0~50°C / |
| Humidity: <95% | |
| Size | 120x63x25 mm |
| Power Supply | 2x1.5vAAA Um-4 Battery |
| Weight | 90 g (Not including batteries) |
Product Accessories
| Standard Accessories | Main Unit |
| Calibration Foils | |
| Substrate ( Iron ) | |
| Substrate ( Aluminium ) | |
| Carrying Case | |
| Operation Manual | |
| Optional Accessories | USB data output |
| Bluetooth data output |
