Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jingbei
-
Weight:
-
300 kg
-
Dimension(L*W*H):
-
as picture
-
Power:
-
choose
-
After-sales Service Provided:
-
Overseas third-party support available
-
Min. take time:
-
1s
-
Dry cycle time(without tool):
-
3s
-
Drive system:
-
Y/Z - Servo motor; X - Cylinder
-
Power consumption:
-
1.05KVA
-
type:
-
Telescopic type
-

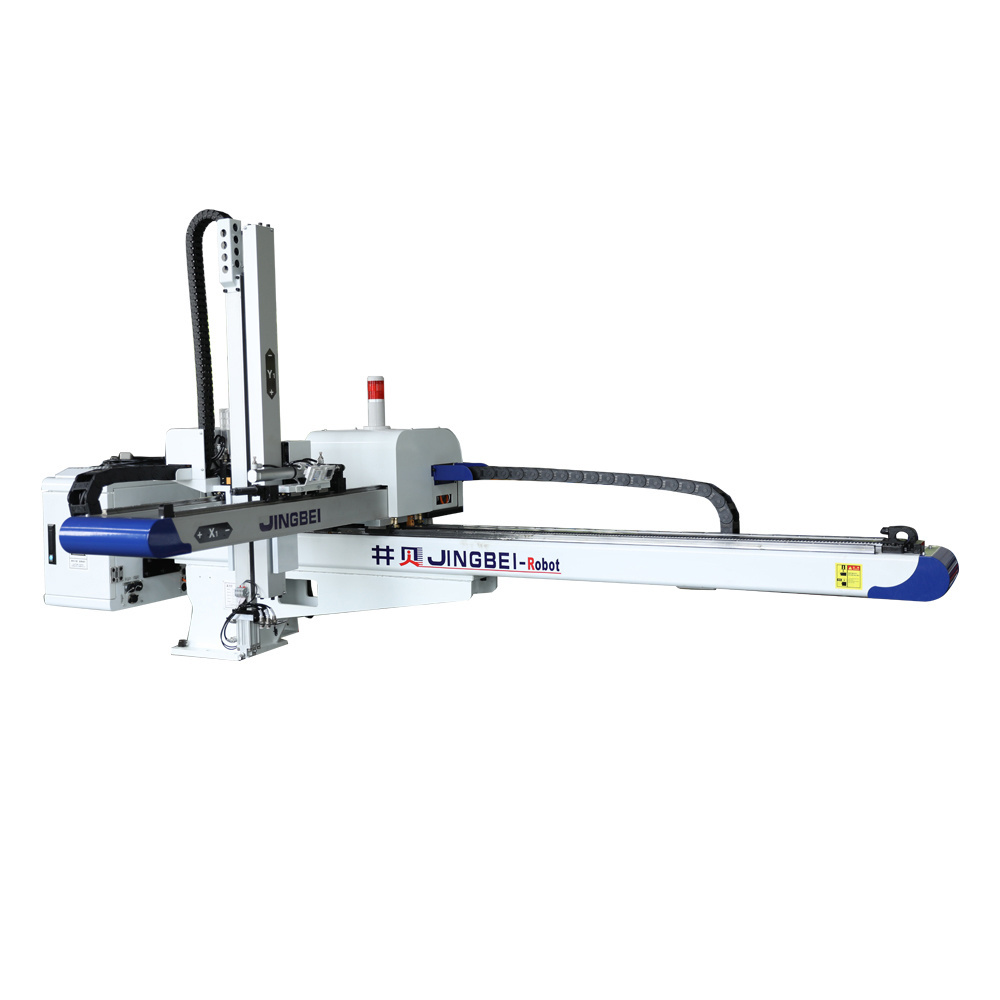

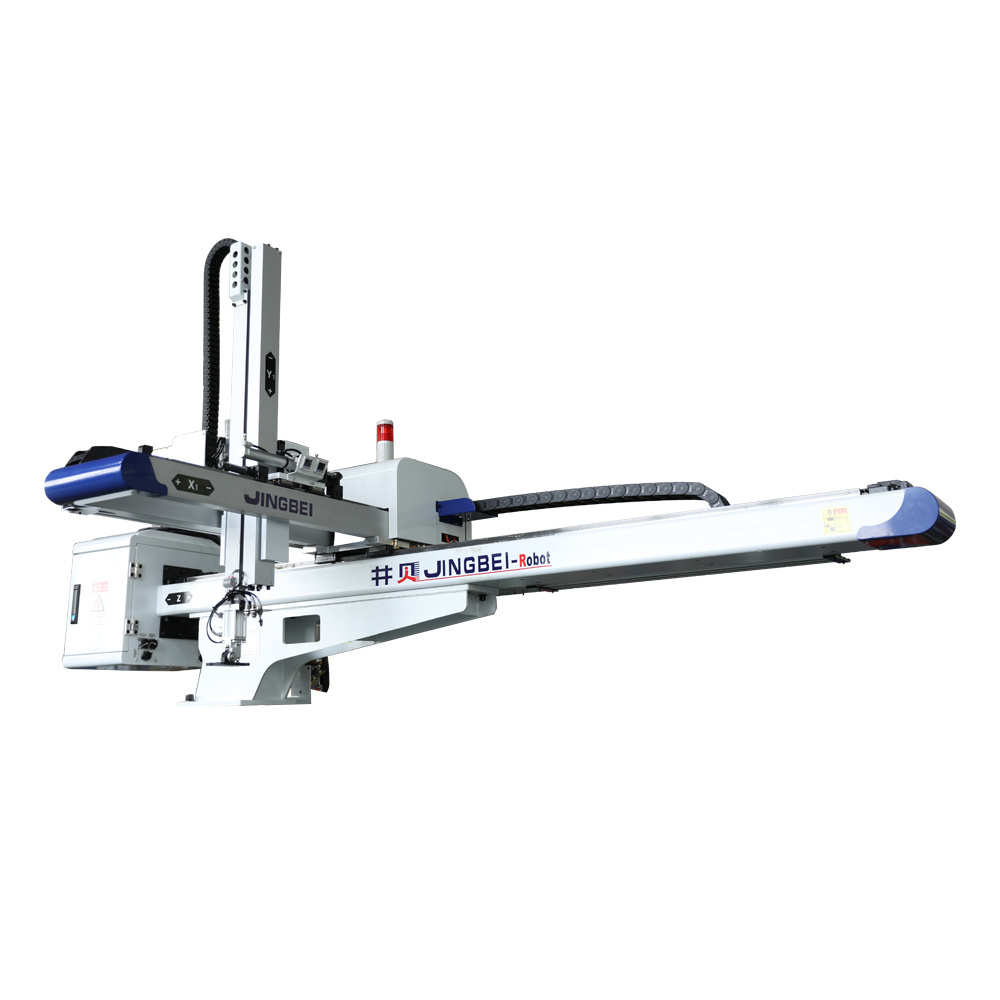

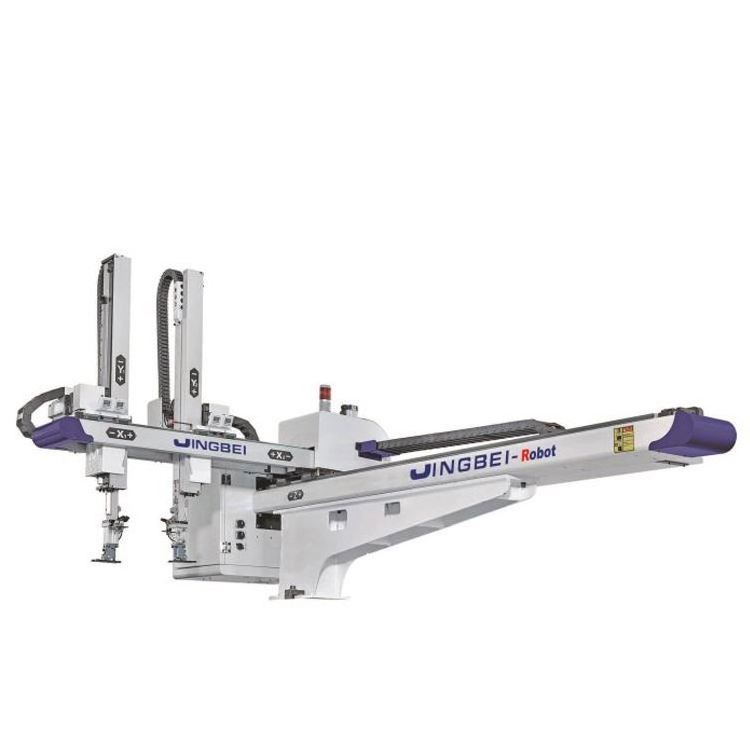

Product name:
-
industrial robot arm
-
MOQ:
-
1 Sets
-
Power Source:
-
220V
Quick Details
-
Warranty:
-
1 Year
-
Vertical Travel(mm):
-
800mm; 900mm; 1000mm
-
Horizonal Travel(mm):
-
1400mm; 1600mm; 1800mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jingbei
-
Weight:
-
300 kg
-
Dimension(L*W*H):
-
as picture
-
Power:
-
choose
-
After-sales Service Provided:
-
Overseas third-party support available
-
Min. take time:
-
1s
-
Dry cycle time(without tool):
-
3s
-
Drive system:
-
Y/Z - Servo motor; X - Cylinder
-
Power consumption:
-
1.05KVA
-
type:
-
Telescopic type
-
Product name:
-
industrial robot arm
-
MOQ:
-
1 Sets
-
Power Source:
-
220V
Recommend Products
Product Description
Specification
|
OVERALL DIMESIONS
|
|
|
|
|
||
|
Model
|
Unit
|
JBE-800P
|
JBE-900P
|
JBE-1000P
|
||
|
Type
|
/
|
Telecopic type
|
|
|
||
|
I.I.M.range
|
ton
|
≤250T
|
250T-330T
|
300T-380T
|
||
|
Vertical stroke
|
mm
|
P:800/R:850
|
P:900/R:950
|
P:1000/R:1050
|
||
|
Crosswise stroke
|
mm
|
P:300
|
P:300
|
P:300
|
||
|
Traverse stroke
|
mm
|
1400
|
1600
|
1800
|
||
|
Gripper rotation angle
|
deg
|
90°
|
|
|
||
|
Max load(with tool)
|
kg
|
3
|
3
|
5
|
||
|
Minimum take-out time
|
sec
|
1.5
|
1.5
|
1.5
|
||
|
Dry cycle time(without tool)
|
sec
|
5
|
5
|
5
|
||
|
Drive system
|
/
|
Y1,Z-Servo motorX-Cylinder
|
|
|
||
|
Working air pressure
|
kgf/c㎡
|
4.5-6.5
|
|
|
||
|
Air consumption
|
NL/cycle
|
15-20
|
|
|
||
|
Power consumption
|
KVA
|
0.8
|
|
|
||
|
Power
|
AC
|
220V/50HZ
|
|
|
||
|
Net weight
|
kg
|
P:260/PR:300
|
P:280/PR:320
|
P:300/PR:340
|
||
