Quick Details
-
Brand Name:
-
Biobase
-
Voltage:
-
220V/110V
-
Power:
-
1.3
-
Dimension(L*W*H):
-
720*705*730mm
-
Weight (KG):
-
85
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-

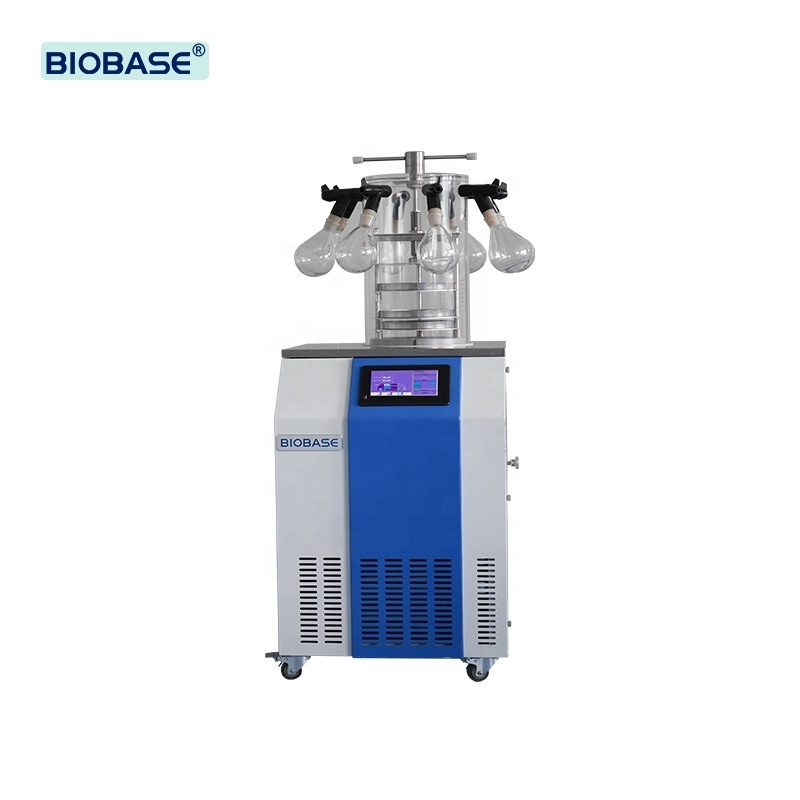

Tabletop Freeze Dryer
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Drying Wet Materials
-
Keywords:
-
Fruit Vegetable Mesh Belt Dryer
-
Function:
-
High Efficiency Drying
-
Heating source:
-
Steam
-
Raw material:
-
Multiple Material
-
Feature:
-
High Efficiency Low Cost
-
Advantage:
-
Low Consumption High Efficiency
-
Application material:
-
Wide Application
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
0.12kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Biobase
-
Voltage:
-
220V/110V
-
Power:
-
1.3
-
Dimension(L*W*H):
-
720*705*730mm
-
Weight (KG):
-
85
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Tabletop Freeze Dryer
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Drying Wet Materials
-
Keywords:
-
Fruit Vegetable Mesh Belt Dryer
-
Function:
-
High Efficiency Drying
-
Heating source:
-
Steam
-
Raw material:
-
Multiple Material
-
Feature:
-
High Efficiency Low Cost
-
Advantage:
-
Low Consumption High Efficiency
-
Application material:
-
Wide Application
Product Description
FEATURES:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Technical Parameters
|
Model
|
|
BK-FD10S
|
BK-FD10P
|
BK-FD10T
|
BK-FD10PT
|
||||
|
Type
|
|
Standard chamber
|
Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
||||
|
Freeze Drying Area
|
|
0.12 m2
|
|
0.09 m2
|
|
||||
|
Tray
|
|
4 pcs
|
|
3 pcs
|
|
||||
|
Height Between Trays
|
|
50mm
|
|
68mm
|
|
||||
|
Cold Trap Temperature
|
|
≤-60℃
|
|
|
|
||||
|
Cold Trap Capacity
|
|
9.5L
|
|
|
|
||||
|
Cold Trap Size (Diameter*H)
|
|
Φ215*260mm
|
|
|
|
||||
|
Vacuum Degree
|
|
<10 Pa
|
|
|
|
||||
|
Water Capture Capacity
|
|
3kg/24h
|
|
|
|
||||
|
Tray Size (D*H)
|
|
Φ200*20mm
|
|
Φ180*20mm
|
|
||||
|
Freeze Drying Time
|
|
24h
|
|
|
|
||||
|
Loading Capacity/Shelf (Liquid)
|
|
0.3L
|
|
|
|
||||
|
Total Loading Capacity (Liquid)
|
|
1.2L
|
|
0.9L
|
|
||||
|
Drying Chamber Size (Diameter*H)
|
|
Φ260*310mm
|
Φ260*450mm
|
|
|
||||
|
Total Qty. Of Vial Φ22
|
|
260
|
|
195
|
|
||||
|
Total Qty. Of Vial Φ16
|
|
480
|
|
360
|
|
||||
|
Total Qty. Of Vial Φ12
|
|
920
|
|
690
|
|
||||
|
Refrigerant
|
|
R600a+R290+R23
|
|
|
|
||||
|
Cooling System
|
|
Air cooling
|
|
|
|
||||
|
Power Supply
|
|
220V/50Hz,60Hz (single phase)
110V/60Hz (single phase) |
|
|
|
||||
|
Power Consumption
|
|
1.3KW
|
|
|
|
||||
|
Power Supply
|
|
AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase)
|
|
|
|
||||
|
Standard Accessory
|
|
Vacuum pump 2L/S, 8m3/h (for all models)
Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) |
|
|
|
||||
|
Optional Function & Accessory
|
|
Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT)
Import vacuum pump |
|
|
|
||||
|
External Size (W*D*H)
|
|
640*610*550/810mm
|
640*610*550/950mm
|
640*610*550/990mm
|
|
||||
|
Package Size(W*D*H)mm/
Gross Weight |
Main Body
|
720*705*730(85kg)
|
|
|
|
||||
|
|
Drying Chamber
/Vacuum Pump |
705*590*530
(50kg) |
705*590*530
(55kg) |
705*590*530
(60kg) |
720*705*730
(65kg) |
||||
