Standard Latch and Quick Release V Band Clamp Flange Kit for tubes and pipes

Standard Latch and Quick Release V Band Clamp Flange Kit for tubes and pipes

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9.99

≥10 Pieces

US $9.49

≥20 Pieces

US $8.76

≥100 Pieces

US $8.11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: pdm

Model Number:: quick release V band clamp

Clamp type:: Quick Release V Band Clamp

Product name:: Quick Release V Band Clamp With Male and Female Flange

Nut type:: Slotted Nut

Nut:: Nylon lock nut

Feature:: with grooves, good sealing

Size:: 1.5''-6''

Application:: quick release, easy application

Type:: quick release

Structure:: clamps with flanges kit

Advantage:: large stock, ship immediately

Quick Details

Measurement system:: INCH, Metric

Material:: Stainless steel

Place of Origin:: Shandong, China

Brand Name:: pdm

Model Number:: quick release V band clamp

Clamp type:: Quick Release V Band Clamp

Product name:: Quick Release V Band Clamp With Male and Female Flange

Nut type:: Slotted Nut

Nut:: Nylon lock nut

Feature:: with grooves, good sealing

Size:: 1.5''-6''

Application:: quick release, easy application

Type:: quick release

Structure:: clamps with flanges kit

Advantage:: large stock, ship immediately

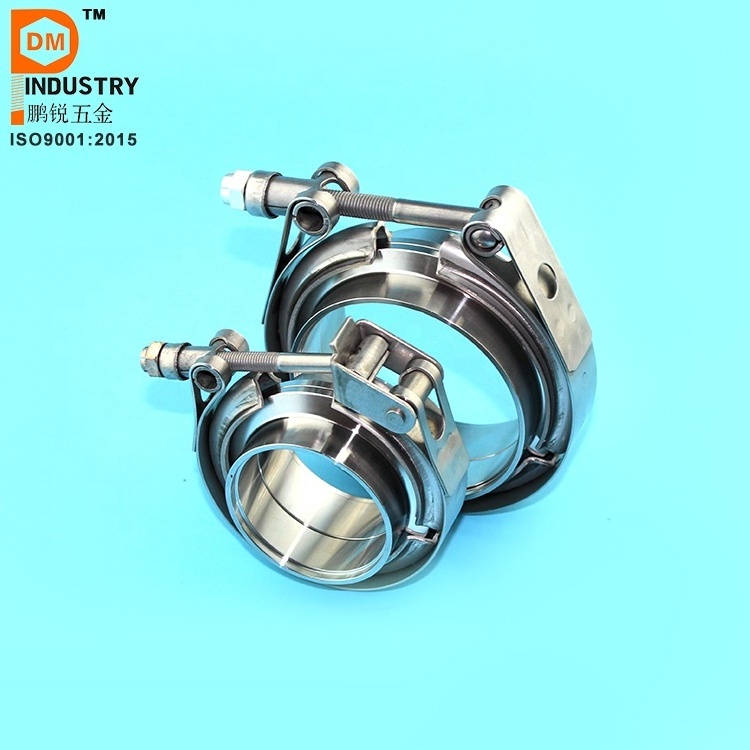

V Band Clamp Kits

PDM V Band Clamp Kits Includes 3 Individual parts

1. V Band Clamp

2. Male Flanges

3. Female Flanges

We use special lock nut : High Quality Alloy Slotted Lock Nut (Made In USA)

S.S 420 Stronger T Bolt wit stronger tension than normal stainless steel T Bolt

Specification

Item	Material	Spec.(inch)	Clamp ID(mm)	Flange ID(mm)
V band clamps ( both standard latch and quick release latch)	Superior Grade Stainless steel 304	1.5”	60	38.9
		1.75”	66.4	45.3
		2”	72.8	51.6
		2.25”	79.1	57.9
		2.36”	81.6	64.3
		2.5”	85.5	70.6
		2.75”	91.8	77
		3”	98.2	83.3
		3.25”	104.5	89.7
		3.5	110.9	96.1
		4”	123.5	102.4
		4.5”	136.3	115.1
		5”	149	127.8
		6”	174.4	153.2

The quick release latch mechanism makes connect and disconnect in seconds.

3" exhaust quick release v band clamp

3" exhaust flexible pipe clamp quick release v band clamp, quick release pipe clamp,vibrant performance quick release V band clamp
3inch Stainless steel quick release V band clamp with male and female flanges
3inch Stainless steel quick release V band clamp kits
V band clamps, quick release v band clamps, auto exhaust v band clamps with flanges
stainless steel quick release v band clamp, stainless steel 304 quick release V band clamps 2.5 inch(2.5"), 2.5 inch(2.5") quick release V band clamps, stainless steel v band clamp kit, stainless steel 304 v band clamp with flanges, V band clamps, quick release v band clamps, auto exhaust v band clamps with flanges
